* Control tension automatically; Adopt International famous Brand bearing; the machine would automatically brake
* The body frame is annealed to eliminate internal stress and is one-step boring by means of precise boring mill.
* According to the request of customer, the structure could be adopted vertical or European type.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Wire Bunching Machine
-
Name:
-
Wire Bunching Machine
-
Twisting direction:
-
S or Z
-
Bobbin Dia.:
-
630/800/1000/1250mm
Quick Details
-
Use:
-
Twisting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZADP
-
Model Number:
-
Wire Bunching Machine
-
Name:
-
Wire Bunching Machine
-
Twisting direction:
-
S or Z
-
Bobbin Dia.:
-
630/800/1000/1250mm
Product Description

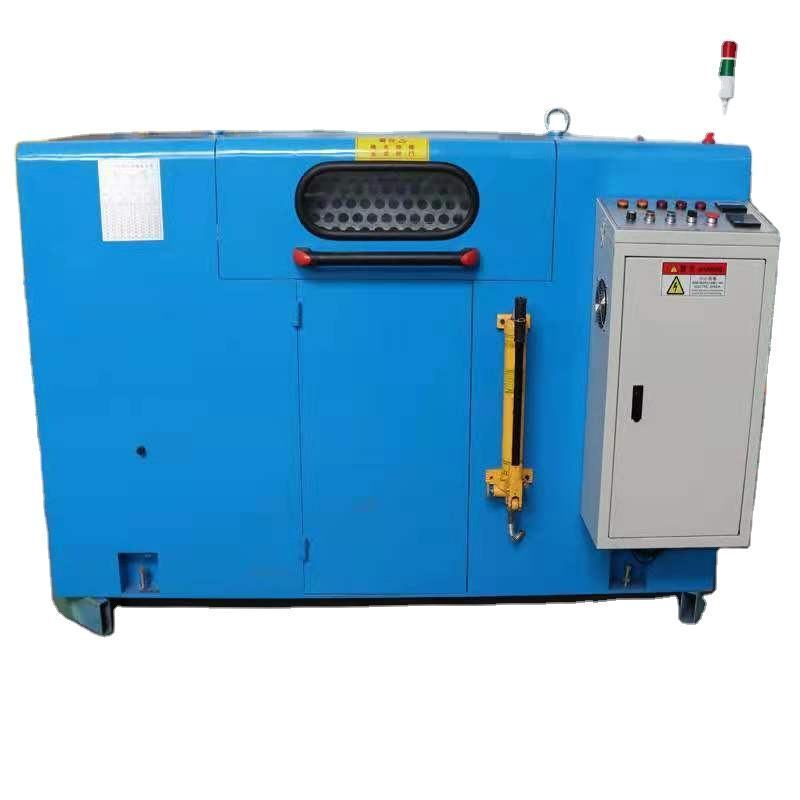

Wire Bunching Twisting Machine
Product Description
USAGE:
This series machine is used for twisting bare copper, tinned wire and enameled wire, etc which mainly applicated in the wire and cable industry.
Application:
The cantilever machine suit for various power wire, CAT5,ultraCAT5 and CAT6 data cable,commumication cable and other twist.
Perfoemance and features:
The series of equipment consist of PLC procedure, frequency conversion speed-regulation control, pneumatic control, cantilever cabling twist motion, bobbin capstan take-up motion and reciprocating traverse motion are dual controlled by mechanical linkage and pneumatic linkage,so, the excellent synchronous performance of the unit from starting. Normal opeartion,slow stop and
emergency stop status, in addition,the stable twist pitch is also ensure with small errorsat the same time. Such cabling series are unique in the design of production line.Advanced in technology and it is the prefered product for the seriesproduction of cabling and wrapping.
Optional parts:
1.Double head (Multiple-set)active pay-off
2.Multiple-head passive tension pay-off
3.Multiple-head back twisting machine
4.Multiple-head active back twisting machine
5.Side wrapping frame(verticle wrapping machine)
According to the take-up bobbin,it has 630mm,800mm,1000mm,1250mm four specification
The cantilever machine suit for various power wire, CAT5,ultraCAT5 and CAT6 data cable,commumication cable and other twist.
Perfoemance and features:
The series of equipment consist of PLC procedure, frequency conversion speed-regulation control, pneumatic control, cantilever cabling twist motion, bobbin capstan take-up motion and reciprocating traverse motion are dual controlled by mechanical linkage and pneumatic linkage,so, the excellent synchronous performance of the unit from starting. Normal opeartion,slow stop and
emergency stop status, in addition,the stable twist pitch is also ensure with small errorsat the same time. Such cabling series are unique in the design of production line.Advanced in technology and it is the prefered product for the seriesproduction of cabling and wrapping.
Optional parts:
1.Double head (Multiple-set)active pay-off
2.Multiple-head passive tension pay-off
3.Multiple-head back twisting machine
4.Multiple-head active back twisting machine
5.Side wrapping frame(verticle wrapping machine)
According to the take-up bobbin,it has 630mm,800mm,1000mm,1250mm four specification
|
Machine type
|
BRN-630P
|
BRN-800P
|
BRN-1000P
|
BRN-1250P
|
|
Pay-off bobbin dia.
|
400-500-630mm
|
400-500-630mm
|
400-500-630mm
|
400-500-630mm
|
|
Take-up bobbin dia.
|
630mm
|
800mm
|
1000mm
|
1250mm
|
|
Applicable wire dia.
|
0.6-3.0mm
|
0.6-3.0mm
|
1.0-5.0mm
|
1.0-5.0mm
|
|
MAX. lay-up dia.
|
15mm
|
20mm
|
25mm
|
30mm
|
|
Twisting pitch
|
20mm-200mm
|
30mm-300mm
|
30mm-350mm
|
30mm-350mm
|
|
No.of rotate
|
2500r/min
|
1200r/min
|
800r/min
|
700r/min
|
|
Take-up tension
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
|
Traversing type
|
steppless regulation
|
steppless regulation
|
steppless regulation
|
stepless regulation
|
|
Traversing distance
|
2mm-12mm
|
3mm-20mm
|
3mm-30mm
|
3mm-30mm
|
|
Twisting direction
|
S /Z
|
S/Z
|
S/Z
|
S/Z
|
|
Wrapping type
|
centre/side
|
centre/side
|
centre/side
|
centre/side
|
Product Show
