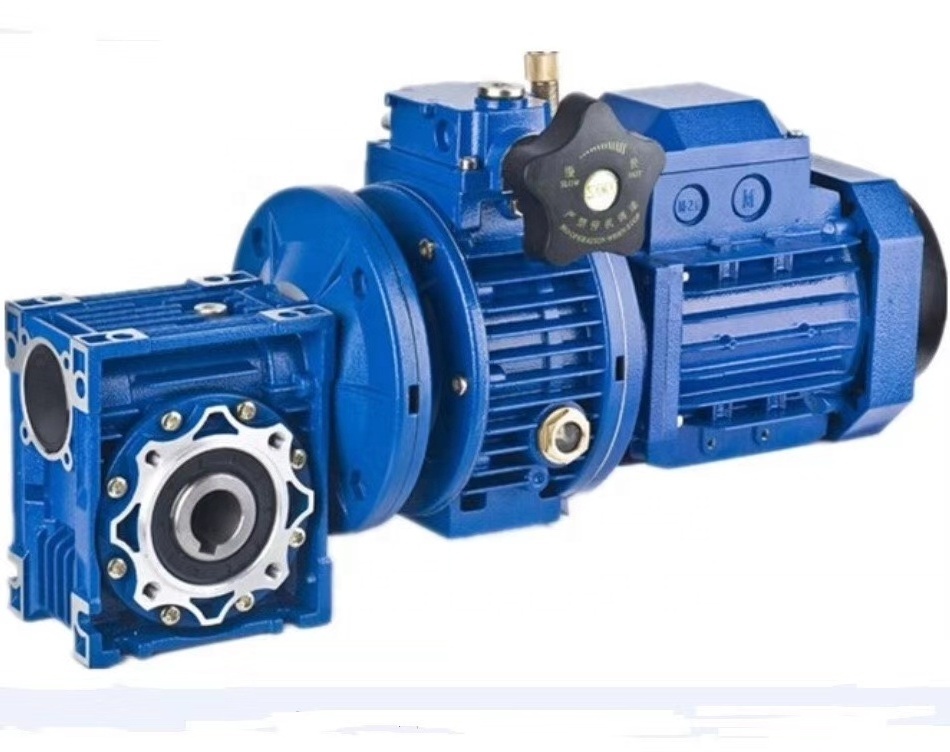

High Quality RV Reducer Double Worm Gear Speed Reducer Electric Motor Powered Gearboxes

High Quality RV Reducer Double Worm Gear Speed Reducer Electric Motor Powered Gearboxes

FOB Reference Price: Get Latest Price

≥30 Pieces

US $32

≥60 Pieces

US $30

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: 14-185rpm

Warranty:: 1 year

Weight (KG):: 7, 3.5 KG

Place of Origin:: Jiangsu, China, JiangSu,China

Brand Name:: qianqian, QianQian

Product name::: NRV aluminum worm gearbox

Model number::: NRV50

Seal:: SKF/CTY/CFW or on customer's request

ratio:: 7.5 10 15 20 25 30 40 50 60

Housing Material:: Aluminum

Assemble Type:: NRV

Customization:: Acceptable

Quick Details

Gearing Arrangement:: Worm

Output Torque:: 2.6-1310N.m

Input Speed:: 1440rpm

Output Speed:: 14-185rpm

Warranty:: 1 year

Weight (KG):: 7, 3.5 KG

Place of Origin:: Jiangsu, China, JiangSu,China

Brand Name:: qianqian, QianQian

Product name::: NRV aluminum worm gearbox

Model number::: NRV50

Seal:: SKF/CTY/CFW or on customer's request

ratio:: 7.5 10 15 20 25 30 40 50 60

Housing Material:: Aluminum

Assemble Type:: NRV

Customization:: Acceptable

Specification

item	value
Warranty	1 year
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction works , Energy & Mining, Other
Weight (KG)	7
Customized support	OEM, ODM, OBM
Place of Origin	China
	Jiangsu
Brand Name	qianqian
Gearing Arrangement	Worm
Output Torque	2.6-1310N.m
Input Speed	1440rpm
Output Speed	14-185rpm
Weight (KG)	3.5 KG
Place of Origin	JiangSu,China
Brand Name	QianQian
Product name:	NRV aluminum worm gearbox
Model number:	NRV50
Seal	SKF/CTY/CFW or on customer's request
ratio	7.5 10 15 20 25 30 40 50 60
Housing Material	Aluminum
Assemble Type	NRV
Customization	Acceptable

Product display

Brief introduction to RV series worm gear speed reducer

SMRV series worm-gear speed reducer is anew-generation of products developed by our company with combination of advanced technology both at home and abroad.

It features in:

1.Aluminium alloy die-cast casing for RV025, 030,040, 050, 063, 075, 090, light weight and non-rusting.cast iron casing for RV110, 130,150. 2. Large output torque. 3.Stable transmission with lower noise.

4. High heat-radiating efficiency. 5. Elegant shape, small volume and durable serving life 6. Suitable for omnibearing installation.

To install the reduction unit it is necessary tonote the following recommendations:

1.Check the correct direction of rotation of thereduction unit output shaft before fitting the unit tothe machine. 2.Before mount with the prime moveranddevice please check the reducers every axialdiameter aperture,key and key slot to be suretheirdimensions are not deviation and avoidassembling too tight or too loose unless it will,influence the reducer's performance
