Quick Details
-
Voltage:
-
330v/415v
-
Dimension(L*W*H):
-
2650*1650*1650mm
-
Weight:
-
1100kg
-
Rotating speed:
-
2200r/min
-
Air delivery:
-
7m3/min
-
Power:
-
37 kw
-
Working pressure:
-
7 bar
-
Engine make:
-
XICHAI
-
Application:
-
Compressed Air
-
After Warranty Service:
-
Online Video Technical Support
-
Motor power:
-
7.5kw-160kw/ 10hp-200hp
-
Feature:
-
High Efficiency
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WINDBELL
-
Model Number:
-
WGD185
-
Voltage:
-
330v/415v
-
Dimension(L*W*H):
-
2650*1650*1650mm
-
Weight:
-
1100kg
-
Rotating speed:
-
2200r/min
-
Air delivery:
-
7m3/min
-
Power:
-
37 kw
-
Working pressure:
-
7 bar
-
Engine make:
-
XICHAI
-
Application:
-
Compressed Air
-
After Warranty Service:
-
Online Video Technical Support
-
Motor power:
-
7.5kw-160kw/ 10hp-200hp
-
Feature:
-
High Efficiency

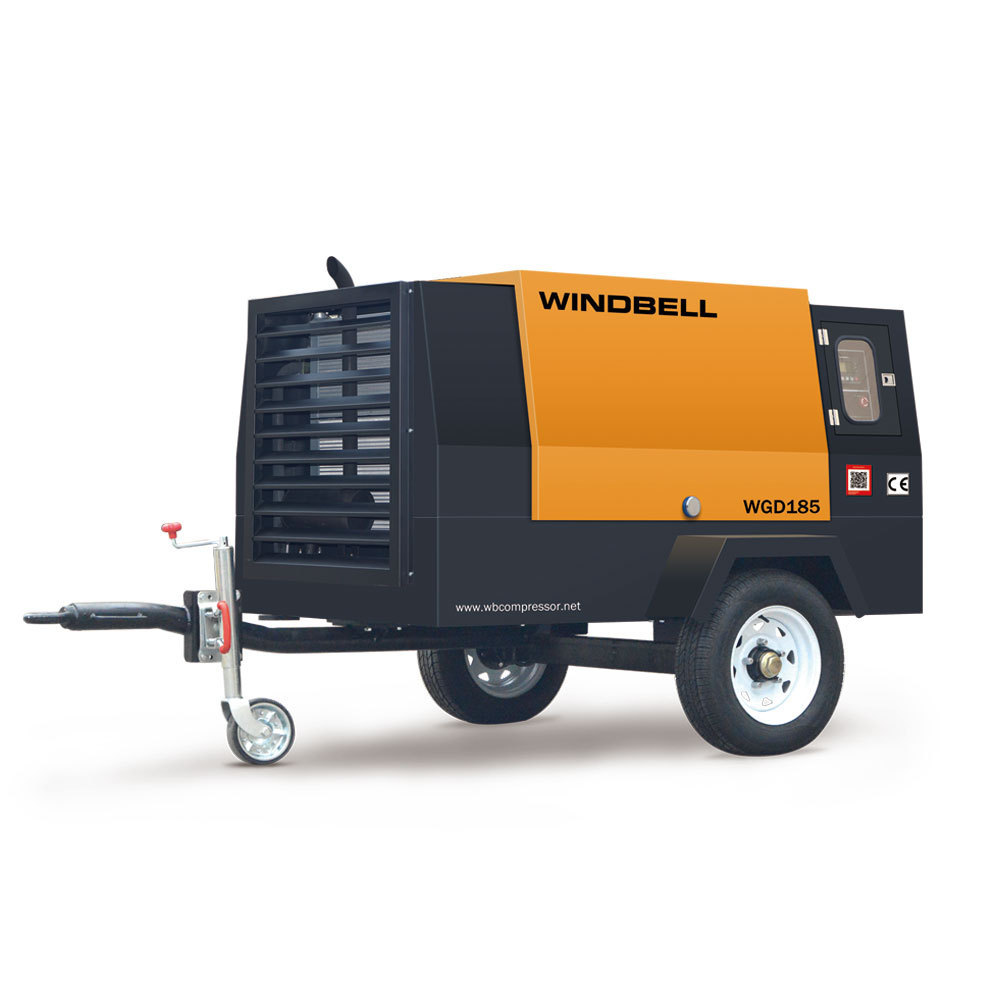

This Diesel power 185cfm air compressor for sand blasting is especially developed for mining , rock drilling, road construction, concrete breaking. It is powered by one 4-cyclinder 50hp XICHAI diesen engine which is reliable , long lifetime and low maintenaince cost. It is also equiped with one BAOSI airend which requires less horsepower and deliver plenty of volume CFM output.The single ,high performance ,two-stage air intake filter prevents dust and dirty particles from entering the engine and compressor.Canopy design is much easier for service and maintenance.
Advantages:
1.Easy to move(accept skid-mounted customization).
2.A wide range of pressure and capacity design.
3.Intellgent conttrol system is easy operation and with monitoring function for oil pressure,water perssure,intercooler temperature,air end temperature,fule level...
4.Galvanized sheet with electrostatic spray plastics is good corrosion precentive.
5.High chasis can meet the applications of off road.
6.The 185cfm air compressor canopy design make service and maintenance much easier.
| Technical Data for portable air compressor | |||
| Compressor | Working pressure | Bar | 8 |
| Free air delivery | CFM | 185 | |
| Diesel engine | Make | XICHAI or CUMMINS | |
| Power | KW/HP | 37/50 | |
| Cylinders | 4 | ||
| Rated speed(loading) | RPM | 2650 | |
| Rated speed(unloading) | RPM | 1500 | |
| Engine oil capacity | L | 5 | |
| Coolant capacity | L | 10 | |
| Fuel tank capacity | L | 100 | |
| Whole Machine | Separator capacity | L | 38 |
| Coolant oil capacity | L | 20 | |
| Cooling system | water | ||
| Air outlet | " | G3/4'' | |
| Max. ambient temperature | ℃ | 45 | |
| Wheels | 2 | ||
| Dimension | mm | 2880*1650*1650 | |
| Weight | kg | 1200 | |
