Quick Details
-
Brand Name:
-
-
-
Model Number:
-
CE5855-48T4S2Q-EI
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Switch
-

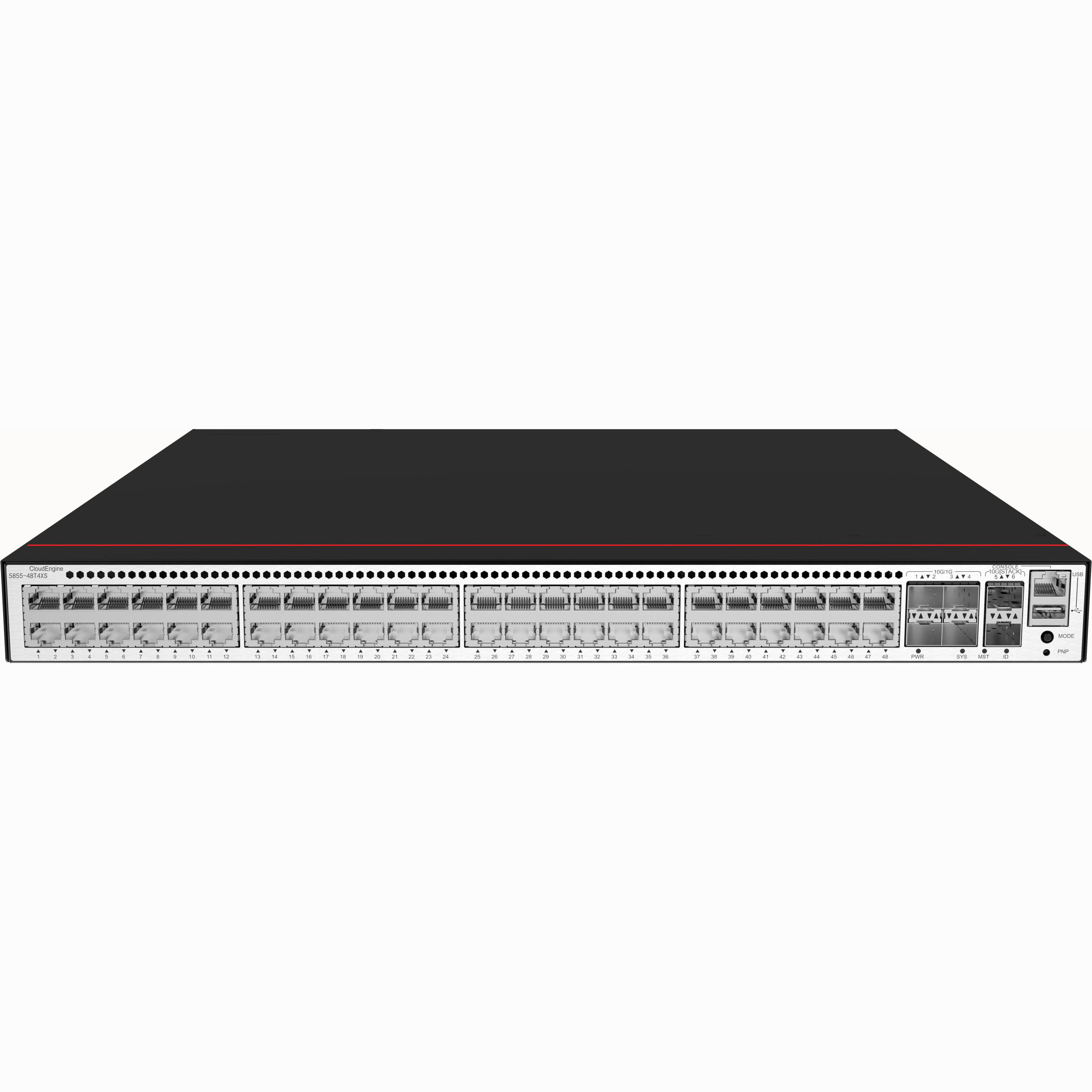

Product Name:
-
Data center switches
-
Forwarding performance:
-
252Mpps
-
Maximum power consumption:
-
103 W
-
Warranty:
-
1 Year / 12 Months
-
Chassis height(U):
-
1U
-
Dimensions (W x D x H):
-
442*420*43.6
-
Chassis weight:
-
8.4 Kg
Quick Details
-
Transmission Rate:
-
1000Mbps & 10/40Gbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.28Tbps/11.52Tbps
-
Brand Name:
-
-
-
Model Number:
-
CE5855-48T4S2Q-EI
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Switch
-
Product Name:
-
Data center switches
-
Forwarding performance:
-
252Mpps
-
Maximum power consumption:
-
103 W
-
Warranty:
-
1 Year / 12 Months
-
Chassis height(U):
-
1U
-
Dimensions (W x D x H):
-
442*420*43.6
-
Chassis weight:
-
8.4 Kg
Product Description
|
* Product performance description
|
|
1. Provide 48 full line speed GE interfaces and high-density gigabit access to meet the growing demand for data center servers in the cloud era.
2. CloudEngine 5800 supports a 40GE uplink interface, which can be combined with CloudEngine 16800 or CloudEngine 12800 to form a high-performance data center network for all 40GE. The two 40GE uplink interfaces can backup each other, improving system reliability.
3. The CloudEngine 5800 series supports a maximum of 9 switch stacks and can provide 432 gigabit access ports to meet the high-density server access needs of data centers. |
|
Product Name
|
CE5855-48T4S2Q-EI
|
|
Number of interfaces
|
48 GE BASE-T interfaces, 4 10GE SFP+interfaces, and 2 40GE QSFP+interfaces
|
|
Exchange capacity
|
1.28Tbps/11.52Tbps
|
|
Packet forwarding rate
|
252 Mpps
|
|
Air duct type
|
Standard front and rear or rear front air ducts
|
|
Device virtualization
|
iStack stacking
M-LAG
|
|
Network virtualization
|
TRILL
|
|
SDN characteristics
|
OPS (Open Programmability System)
|
|
Traffic analysis
|
Netstream functionality
sFlow function
|
|
VLAN
|
Access, Trunk, and Hybrid modes
default VLAN
QinQ
MUX VLAN
GVRP
|
|
MAC Address Table
|
MAC address automatic learning and aging
Static, dynamic, and black hole MAC table entries
Source MAC address filtering
MAC address learning restrictions based on port and VLAN
|
|
IP Routing
|
IPv4 dynamic routing protocols such as RIP, OSPF, ISIS, BGP, etc
IPv6 dynamic routing protocols such as RIPng, OSPFv3, ISISv6, BGP4+, etc
|
|
IPV6
|
IPv6 ND（Neighbor Discovery）
PMTU 发现（Path MTU Discovery） IPv6的 TCP、Ping 、Tracert、Socket、UDP、RawIP |
|
Multicast
|
Multicast routing protocols such as IGMP, PIM-SM, MSDP, MBGP, etc
IGMP Snooping
IGMP Proxy
Multicast member interface for fast departure
Multicast traffic suppression
Multicast VxLAN
|
|
Chassis size mm (width × deep × High)
|
442×420×43.6
|
|
Full weight (with AC power supply and fan box, excluding optical module)
|
8.4 kg
|
|
Environmental requirements
|
Working temperature: 0 ℃~45 ℃ (0m~1800m)
Storage temperature: -40 ℃~+70 ℃
Relative humidity: 5% RH to 95% RH, non condensing
|
|
Working voltage
|
AC: 90V~290V
DC: -38.4V~-72V |
|
Typical power consumption
|
103W
|
