Quick Details
-
Dimension(L*W*H):
-
800*700*2500mm
-
Weight:
-
200 KG
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Soil Small Portable Mini Bore Well Price Auger Drilling Machine
-
Application:
-
Geothermal drilling, farm irrigation radial drilling machine price
-
Drill rod diameter (mm):
-
51 core bit
-
Drill rod length(mm):
-
1500 core drilling machine price
-
Rod change method:
-
Full automatic screw thread
-
Drilling depth(m):
-
120
-
Pumppower (KW):
-
2.2KW
-
Drilling method:
-
Percussive and rotating type
-
Color:
-
Red,blue,green etc. zay7032g drilling milling machine
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OCEAN MACHINERY
-
Voltage:
-
/
-
Dimension(L*W*H):
-
800*700*2500mm
-
Weight:
-
200 KG
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Soil Small Portable Mini Bore Well Price Auger Drilling Machine
-
Application:
-
Geothermal drilling, farm irrigation radial drilling machine price
-
Drill rod diameter (mm):
-
51 core bit
-
Drill rod length(mm):
-
1500 core drilling machine price
-
Rod change method:
-
Full automatic screw thread
-
Drilling depth(m):
-
120
-
Pumppower (KW):
-
2.2KW
-
Drilling method:
-
Percussive and rotating type
-
Color:
-
Red,blue,green etc. zay7032g drilling milling machine
-
Certification:
-
ISO9001

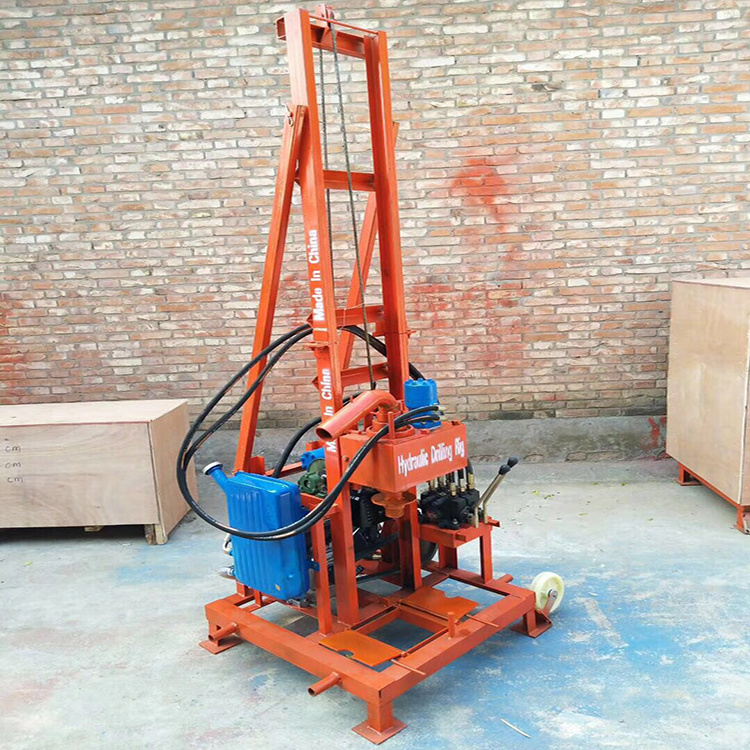

OC-240HYG Soil Small Portable Mini Bore Well Price Auger Drilling Machine
Brief introduction of our water well drilling machine:
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-350mm, and drilling depth is 80m to 100m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 500mm and depth can be more than 100 meter.
The advantages of the water well drilling machine are as below:
1.Light weight, energy saving.
2.
Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5.
One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintainance.
|
Technical Parameters of Water Well Drilling Machine |
|
| Model of drilling machine | OC-240HYG |
| Drilling machine overall dimension(mm) | 800*700*2500 |
| Weight of Drilling machine (kg) | 200 |
| Drill rod diameter (mm) | Ø51 |
| Drill rod length(mm) | 1500 |
| Rod change method | Full automatic screw thread |
| Drilling depth(m) | 120 |
| Drilling method | Percussive and rotating type |
| Pump power (KW) | 2.2KW |
| Drilling hole diameter(mm) | Ø 280 |
| Hosting height(mm) | 2500 |
| Hosting capacity (kg) | 800 |
| Completed unit of drilling machine include main machine, tools,1 set of Gasoline engine, 40 meter drill rod,2 units alloy drilling bit,1 high pressure water pump, 5 meter high pressure water pipe and English manual. | |
The Whole Set of
Water Well Drilling Machine
:
Spare Parts of Water Well Drilling Machine :
Installation Instruction of Water Well Drilling Machine:
