Quick Details
-
Max.Product Size(H)(mm):
-
900 mm
-
Place of Origin:
-
China
-
Brand Name:
-
Yuchen
-
Year:
-
2021
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1600mm*2500mm*900mm
-
Power (kW):
-
11
-
Weight (KG):
-
900 KG
-
Applicable Industries:
-
Foam
-
Name:
-

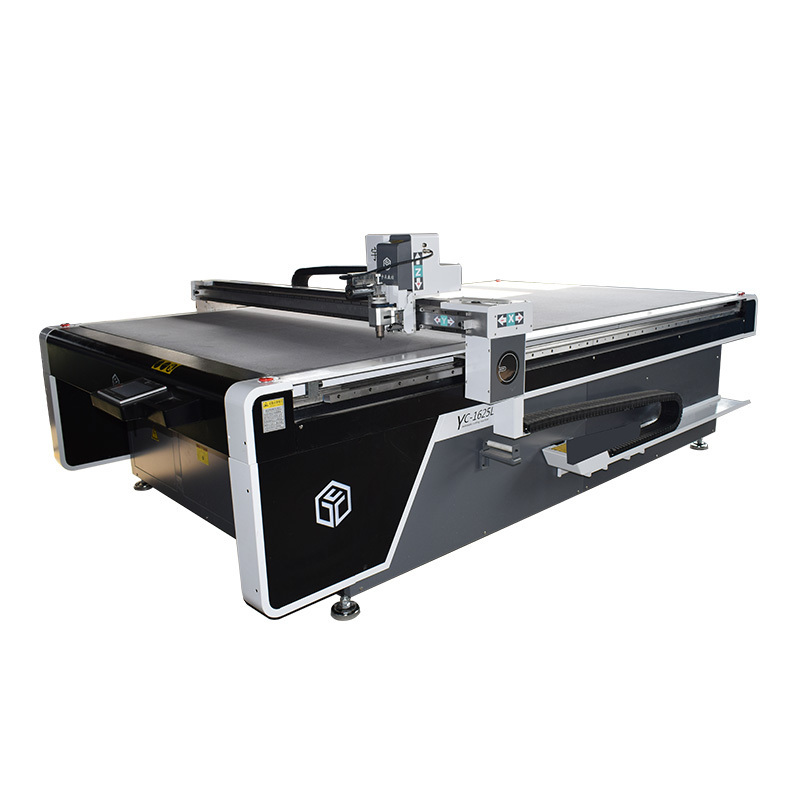

foam cutting machine
-
Function:
-
Cut soft Material
-
Keyword:
-
Easy Operation
-
Cutting speed:
-
1200mm/s
-
Tool configuration:
-
Multiple Cutting Knives
-
Safety device:
-
Reliable
-
Cutting materials:
-
soft matwrials
-
Cutting thickness:
-
0.1-20mm (subject)
-
Application:
-
Gasket,Leather, Fabric,etc
-
Cutting Tool:
-
Vibrating Knife Cutting Tool
Quick Details
-
Cutting Speed(m/min):
-
0 - 7.2 m/min
-
Max.Product Size(L)(mm):
-
1600 mm
-
Max.Product Size(W)(mm):
-
2500 mm
-
Max.Product Size(H)(mm):
-
900 mm
-
Place of Origin:
-
China
-
Brand Name:
-
Yuchen
-
Year:
-
2021
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1600mm*2500mm*900mm
-
Power (kW):
-
11
-
Weight (KG):
-
900 KG
-
Applicable Industries:
-
Foam
-
Name:
-
foam cutting machine
-
Function:
-
Cut soft Material
-
Keyword:
-
Easy Operation
-
Cutting speed:
-
1200mm/s
-
Tool configuration:
-
Multiple Cutting Knives
-
Safety device:
-
Reliable
-
Cutting materials:
-
soft matwrials
-
Cutting thickness:
-
0.1-20mm (subject)
-
Application:
-
Gasket,Leather, Fabric,etc
-
Cutting Tool:
-
Vibrating Knife Cutting Tool
Aplications
Product Paramenters
|
Model
|
YC-0906L
|
YC-1625A
|
YC-2231AR
|
||
|
Working area
|
900×600mm
|
2500×1600mm
|
3100×2200mm
|
||
|
Operation properties
|
Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
|
|
|
||
|
Safety device
|
Infrared adopted; sensitive response; safe and reliable
|
|
|
||
|
Maxi cutting speed
|
1200mm/s
|
|
|
||
|
Translational velocity
|
1500mm/s
|
|
|
||
|
Applicable materials
|
knitted material, tatting material, fur, PU leather, jean demin, canvas, foam, artificial leather, diablement fort,microfiber leather,flannel, etc
|
|
|
||
|
Multifunctional head
|
wheel knife tool, oscillating cutting tool
|
|
|
||
|
Cutting thickness
|
0.1-20mm(subject to material)
0.1-60mm(subject to the material cutting) |
|
|
||
|
Cutting tolerance
|
±0.1mm
|
|
|
||
|
Transmission interface
|
Ethernet
|
|
|
||
|
Transmission system
|
Panasonic Servo Motor
SMTYCC Linear rail and rack |
|
|
||
|
Fixed mode
|
Vacuum absorb
|
|
|
||
|
Supply voltage
|
AC 220V 380V±10%,50HZ
|
|
|
||
|
Rated power
|
11KW
|
|
|
||
