Quick Details
-
Name:
-
Membrane graphic overlay
-
Key option::
-
Flat or Emboss
-
Emboss type::
-
Mylar dome, Metal dome
-
Rear adhesive:
-
3M467,3M468,etc...
-
Matching color:
-
Pantone No.
-
Tail, pin and circuit layout::
-
Subject to customers detailed requests.
-
Connector:
-
Female/male connectors
-
Exported to:
-
Israel, Malaysia, Ireland, Germany, Austria, United States, etc.
-
Tags:
-
On-time shipment |Product quality protection | Payment protection
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Mosun/ OEM
-
Model Number:
-
MB1192
-
Name:
-
Membrane graphic overlay
-
Key option::
-
Flat or Emboss
-
Emboss type::
-
Mylar dome, Metal dome
-
Rear adhesive:
-
3M467,3M468,etc...
-
Matching color:
-
Pantone No.
-
Tail, pin and circuit layout::
-
Subject to customers detailed requests.
-
Connector:
-
Female/male connectors
-
Exported to:
-
Israel, Malaysia, Ireland, Germany, Austria, United States, etc.
-
Tags:
-
On-time shipment |Product quality protection | Payment protection
Product Description
| Name |

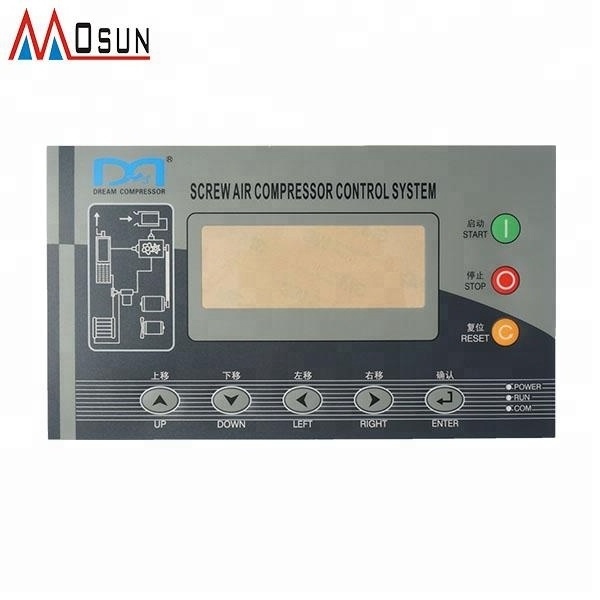

Screen printing membrane front panel and graphic overlay with 3M adhesive
|
| Size | 231×136MM |
| Color | Pantone No. |
| Material | PET |
| Model Number | MB1192 |
| Key Option |
Embossed
|
| Dome Type | None |
| Used | Industrial Controls |
| Certification | ISO9001, SGS, ROHS |
Our Main Product
Sheet Metal Fabrication
Shielding Membrane Switch
Tactile Membrane Switch Non-tactile Membrane Switch
LED Membrane Switch Metal Keypad & Keyboard
Related Products
2016 custom delicate
Customized high quality
China custom made waterproof
Features
Screen printing membrane front panel and graphic overlay with 3M adhesive
| 1 | Material | PET(polyester),PC(polycarbonate). |
| 2 | Components: | LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements. |
| 3 | Dimension | According to customer's demand,OEM service. |
| 4 | Artwork Format | CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF. |
| 5 | Color | Pantone and RALcolor matching system. |
| 6 | Embossing | Raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes. |
| Embossed type: Pillow emboss, Dome emboss, Frame emboss. | ||
| 7 | Keys Options | For a tactile response and indicate the location of switches. |
| 1. Tactile Keys: metal domes or poly domes. | ||
| 2. Non-tactile keys: flat button, printed silver spot on the circuit. | ||
| 8 | Cables | Is extension of circuit and communication with your device. |
| 9 | Circuitry option | 1. Silver printed conductive inks . |
| 2. Copper etched circuit /Polyimide Kapton circuit ( FPC). | ||
| 3. PCB circcuit board . | ||
| 10 | Connector Tail | 1. Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch; |
| 2. Female connector with 2.54MM pitch; | ||
| 3. Male connector ; | ||
| 4. Solder Pins. | ||
| 11 | Shielding | For protection function. |
| 12 | Printing | Screen printing. |
| 13 | Window | With clear or transparent window. |
| 14 | Surface | Glossy surface or matte surface. |
| 15 | Rear Adhesive |
3M467,3M468,3M9080 ect. |
Our service
| 1. OEM service: Receive drawing---Discuss price---Make tooling---Confirm sample--- Manufacture---Arrange shipment. |
|
2. Design service: Receive sample---Design and draw---Confirm drawing---Discuss price---Make tooling---Confirm sample---Manufacture---Arrange shipment. |
|
3. Service on the make: Tell you production progress once arranging to make. |
| 4. After sale service: Any quality question, welcome your feedback. 100% Settle for you!! |
