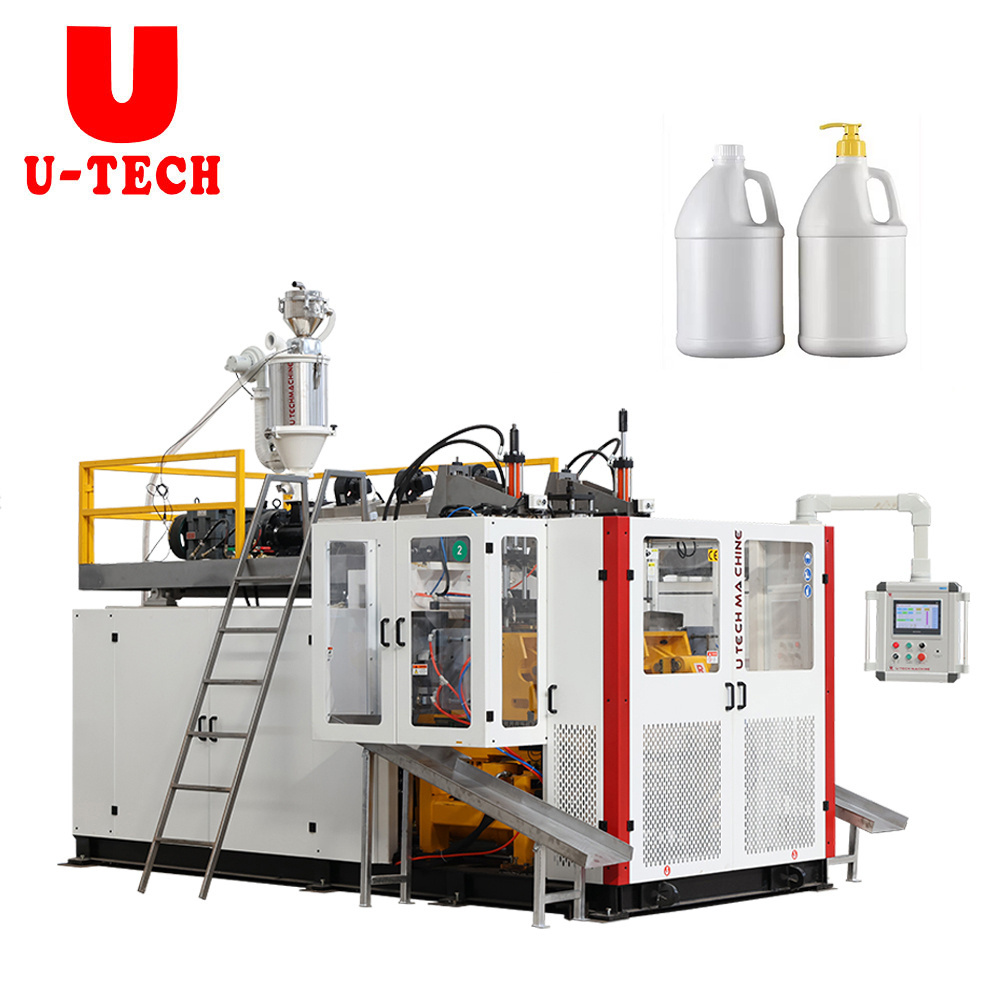

HDPE Bottle Making Machine BST75D is double station blow moulding machine for 5L as maximum, specially used for 50ml to 5L plastic bottles, jerry cans, small containers and jars. Its output for 135 grams 1 gallon PE bottle is 220 Pcs/hour, daily capacity is
6600 bottles. Automatic double station extrusion blow molding machine
BST75D
is popular due to its high quality and price rate,
stable working performance, easy operation and maintenance.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
U TECH
-
Year:
-
2024
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
3.2x2.8x2.5m
-
Hollow part volume:
-
12
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
75 mm
-
Screw Heating Power(kW):
-
25 kW
-
Extruder Motor Power(kW):
-
12 kW
-
Mold Platen Size(Width)(mm):
-
800 mm
-
Mold Platen Size(Height)(mm):
-
600 mm
-
Air Pressure(MPa):
-
1.0 MPa
-
Air Comsumption(m³/min):
-
1.1 m³/min
-
Die Head Heating Power(kW):
-
28 kW
-
Accumulator Capacity(L):
-
5 L
-
Power (kW):
-
25
-
Weight (T):
-
7.5
-
Model Number:
-
BST-75D
-
Product name:
-
1 Gallon Blow Molding Making Machine
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Suitable bottle:
-
PP PE ABS HDPE LDPE
-
Station:
-
Doule Station
-
Parison Control:
-
MOOG/XUNJIE
-
Hydraulic Valve:
-
Japan Yuken
-
Capacity:
-
180-220 Pcs
-
High Pressure Valve Brand:
-
ATA
-
Max. Product Volume:
-
5L/2
-
Color:
-
Customer Choice
Quick Details
-
Clamping Force (kN):
-
800
-
Output (kg/h):
-
600 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
U TECH
-
Year:
-
2024
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
3.2x2.8x2.5m
-
Hollow part volume:
-
12
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
75 mm
-
Screw Heating Power(kW):
-
25 kW
-
Extruder Motor Power(kW):
-
12 kW
-
Mold Platen Size(Width)(mm):
-
800 mm
-
Mold Platen Size(Height)(mm):
-
600 mm
-
Air Pressure(MPa):
-
1.0 MPa
-
Air Comsumption(m³/min):
-
1.1 m³/min
-
Die Head Heating Power(kW):
-
28 kW
-
Accumulator Capacity(L):
-
5 L
-
Power (kW):
-
25
-
Weight (T):
-
7.5
-
Model Number:
-
BST-75D
-
Product name:
-
1 Gallon Blow Molding Making Machine
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Suitable bottle:
-
PP PE ABS HDPE LDPE
-
Station:
-
Doule Station
-
Parison Control:
-
MOOG/XUNJIE
-
Hydraulic Valve:
-
Japan Yuken
-
Capacity:
-
180-220 Pcs
-
High Pressure Valve Brand:
-
ATA
-
Max. Product Volume:
-
5L/2
-
Color:
-
Customer Choice
Product Description
1 Gallon Extrusion Blow Molding Machine
Bottle Mould
1 Gallon Samples
Machine Details:
Specification
|
Max Container capacity
|
5L
|
|
Station
|
Double Station
|
|
Diameter Size
|
75mm
|
|
Total weight
|
7.5ton
|
|
Machine dimension(LxWxH)
|
4.2x2.3x2.6
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
