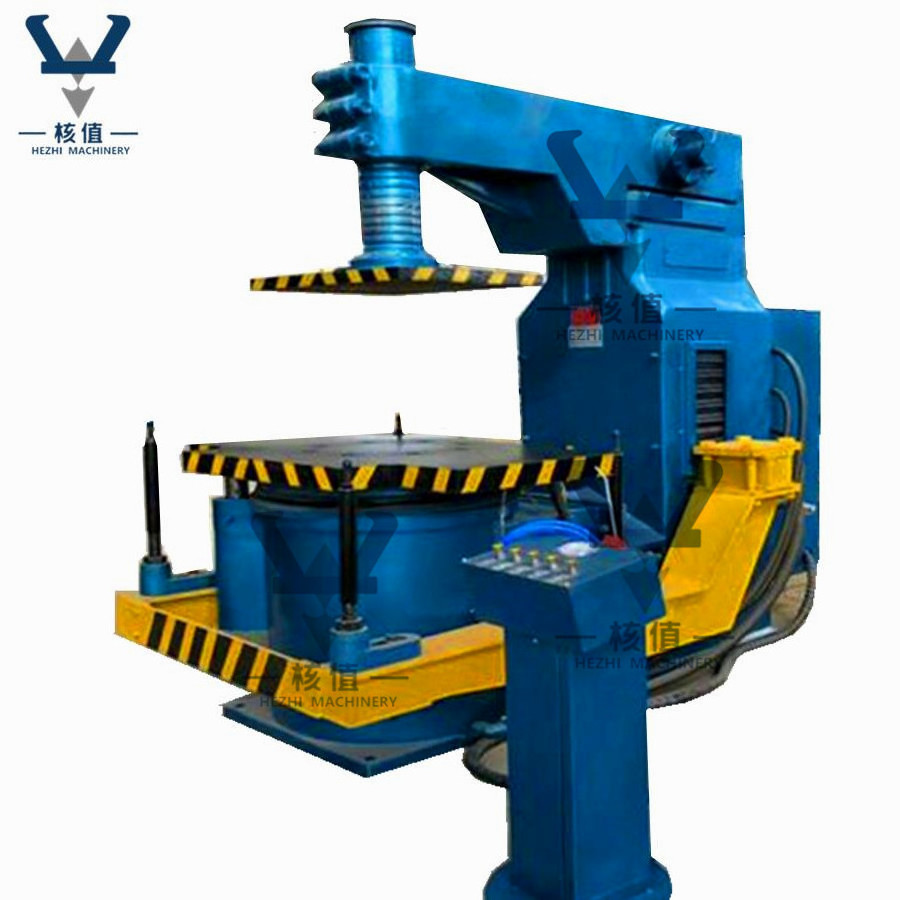

CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting
CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting
CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting
CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting
CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting
CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting
CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting
CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting

CE Marked Compact Jolt And Squeeze Green Sand Molding Machine In China Z149 z147 Metal Casting

FOB Reference Price: Get Latest Price
≥1 Sets
US $3000
≥3 Sets
US $2500
≥5 Sets
US $1600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380-480V Or Customized
Power:
Depending on jolt squeeze molding machine models
Dimension(L*W*H):
Depending on jolt squeeze molding machine models
Weight (KG):
1
Model:
Z14 Series sand moulding machine
Molding Capacity:
40-60 molds per hours
Color:
Blue / Green / Yellow / or as your request
Application:
green sand moulding casting.
Machine Material:
Iron Steel
PLC:
Siemens, Omron or famous brand in china
Mold Size:
Min450*500 or customized
Feeding system:
designed accordingly

Quick Details

Place of Origin:
Shandong, China
Machine Type:
Foundry Sand Molding Machine, compact Green sand Jolt Squeeze Molding Machine
Brand Name:
Hezhi
Voltage:
380-480V Or Customized
Power:
Depending on jolt squeeze molding machine models
Dimension(L*W*H):
Depending on jolt squeeze molding machine models
Weight (KG):
1
Model:
Z14 Series sand moulding machine
Molding Capacity:
40-60 molds per hours
Color:
Blue / Green / Yellow / or as your request
Application:
green sand moulding casting.
Machine Material:
Iron Steel
PLC:
Siemens, Omron or famous brand in china
Mold Size:
Min450*500 or customized
Feeding system:
designed accordingly
CE Certificate
Jolt squeeze m anhole cover molding machine also called compact table ,it is Z14 Series moulding machine for green sand casting production..
this green sand casting squeeze molding machine consists of a table, a shock piston, a true iron compaction piston, a compaction cylinder, etc.
Jolt Squeeze molding machine is full buffer, high frequency, low amplitude, pneumatic micro-vibration compaction molding machine, Using spring buffer, pneumatic micro-seismic mechanism can reduce the impact of shock on the foundation.
The green sand compaction jolt and squeeze molding casting machine is economic molding solution for manual and simply automatic clay sand casting production. Jolt squeeze molding machine do not need big floor space. And it is flexible to increase molding machines when casting production increasing.
Jolt squeeze molding machine can be operated for manual casting foundry and also adapts to simple casting line. Pneumatic cranes can be used to hang up and transfer finished molds.

Below are finished products made by Compact Jolt Squeeze Moulding Machine:
Model
Z1450
Z1460
Z1470
Z1490
Z14100
Table Size
600×560
700×600
880×700
1100×800
1400×1030
Sand Flask
500×400
600×500
700×600
1000×800
1300×900
Sand Flask Height
<250
<250
<250
<400
<400
Capacity
25-35molds
25-36molds
25-37molds
25-38molds
25-39molds
Compaction cylinder diameter
380
420
470
630
650
Air pressure
0.6mpa
0.6mpa
0.6mpa
0.6mpa
0.6mpa
Squeeze Force
68,047
83,127
104,097
187,035
199,098
Air consumption
0.3m3/mold
0.4m3/mold
0.6m3/mold
0.9m3/mold
1.6m3/mold
Ram-jolt cylinder diameter
150mm
200mm
220mm
330mm
360mm
Stripping distance
200mm
250mm
250-300mm
350mm
350mm
Payload
560
720
1040
1600
2240
Weight
1.5T
2.1T
3T
6.5T
9T
Height Shorten
-150mm
-150mm
-150mm
-170mm
-300mm
Machine dimension mm
700x1300x1600

800x1350x1800
900x1400x1850
1200x2100x2200
1400x2500x2550
We manufacture and design full scope of green sand casting equipment. including Green Sand Mixer, Sand Feeder and Conveyor, Sand Moulding machine and Sand Reclamation Machine.
We also design customised production line of green sand casting prodcution.
Jolt Squeeze Molding Machine:
Green Sand
The worktable fall and collide with floating shock-iron,and the sand was tighted slightly, and then to compaction,get the top and
bottom of sand mould are tight.

Detail Pictures of jolt squeeze molding machine:
Application & Production z14 series foundry sand jolt squeeze moulding machine :
3D Drawing of China jolt and squeeze molding machine:
Squeeze Part
Colum Part
Jolt Part
Sand Slinger :
• A sand slinger is an automatic machine equipped with a unit that throws sand rapidly and with great force into the mould box. Figure shows a sand slinger. Sand slinger consists of a rigid base, sand bin, bucket elevator, belt conveyor, ramming head (sand impeller) and a swinging arm.
• In operation, the pre-mixed sand mixture from the sand bin is picked by the bucket elevator and is dropped on to the belt conveyor.
• The conveyor carries the sand to the ramming head, inside which there is a rotating impeller having cup shaped blades rotating at high speeds.
Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment, Sand Reclamation Equipment , Sand Mixer, Dust Collector and full-line Shot Blasting Machines.

We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.

Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Q:What to do if the shock force is insufficient? A: Check whether the compressed air pressure is appropriate. If there is sand or dust jam between the shock cylinders, the shock cylinders should be disassembled and washed.

Q: How many days do you need to produce this machine?
A: It depends on the size of the machine. Usually 20-30days for shot blasting
machine and green sand machine.45days for production line equipments.

Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.

Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.

More questions please contact with Anna , my phone No. is 0086 1995325 9235
