- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VIANS
-
Model Number:
-
TK-PW180
-
TK-PW80A:
-
VI-PW180
-
Max. torque force:
-
80Nm
-
Opening direction:
-
Single
-
Opener Size:
-
330*80*120mm
-
Max.Door Width:
-
1200mm
-
Max.Door Weight:
-
100KG
-
Working Current:
-
45W
-
Environment Temperature:
-
-40℃-+55℃
-
Product Name:
-
Door Operator Outward Opening Arm Automatic openning and Closing
-
Material:
-
Aluminum Alloy
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VIANS
-
Model Number:
-
TK-PW180
-
TK-PW80A:
-
VI-PW180
-
Max. torque force:
-
80Nm
-
Opening direction:
-
Single
-
Opener Size:
-
330*80*120mm
-
Max.Door Width:
-
1200mm
-
Max.Door Weight:
-
100KG
-
Working Current:
-
45W
-
Environment Temperature:
-
-40℃-+55℃
-
Product Name:
-

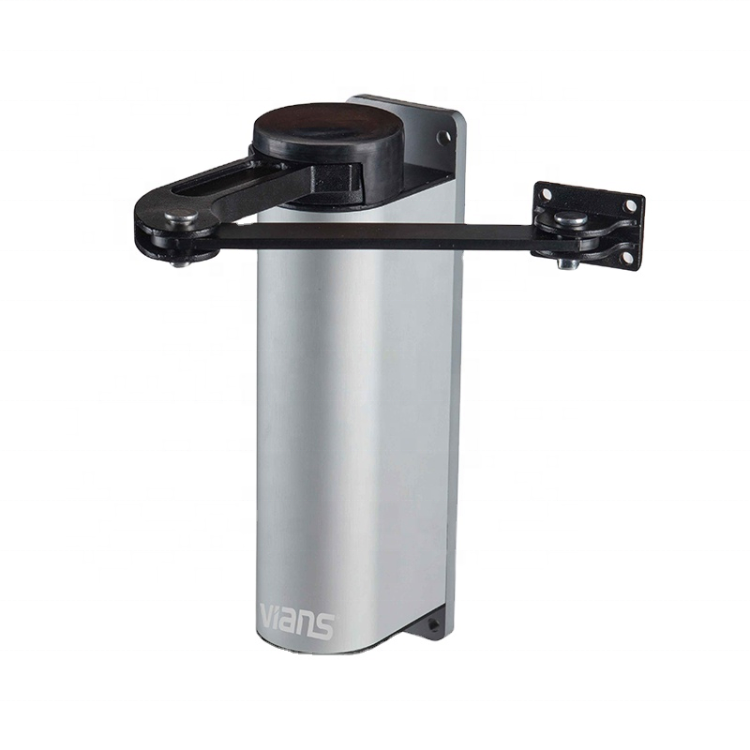

Door Operator Outward Opening Arm Automatic openning and Closing
-
Material:
-
Aluminum Alloy
Manufacturer Electric Automatic Swing Fermator Doors Operators
Product Description
With the development of technology and the continuous improvement of people's living standards, Automatic door operators have been increasingly used in dailylife. VIANS TK-PW180-Automatic Door Operator becomes the excellent solution for the the problem of the transition from ordinary doors to fully automatic doors,that make you open the door easier,more convenient and safer.
Specification
Products Installation Drawing
Feature
1. Specially designed for residential unit doors and pedestrian access doors.2. Automate the door closer, make the doors open and
close themselves.
3. Adjustable for the opening and closing speed/open angle/standing time and etc.
4. No noise, faster and more convenient experience for passager.
5. Waterproof design, adapt to a variety of application environment.
6. Perfectly working with any access control system and electric magnetic lock and bolt lock and etc.
7. 90 degree windproof mode, when opening in correct position, it can prevent the wind from stopping the door.
8. Brushless dc motor, can run continuously without interval.
Feature
1. Specially designed for residential unit doors and pedestrian access doors.2. Automate the door closer, make the doors open and
close themselves.
3. Adjustable for the opening and closing speed/open angle/standing time and etc.
4. No noise, faster and more convenient experience for passager.
5. Waterproof design, adapt to a variety of application environment.
6. Perfectly working with any access control system and electric magnetic lock and bolt lock and etc.
7. 90 degree windproof mode, when opening in correct position, it can prevent the wind from stopping the door.
8. Brushless dc motor, can run continuously without interval.
|
Name
|
Outdoor Automatic Door Opener
|
|
Model
|
VI-PW180
|
|
Max.torque force
|
80Nm
|
|
Opening Direction
|
Single
|
|
Opener Size
|
330*80*120mm
|
|
Max.Door Width
|
1200mm
|
|
Max.Door Weight
|
100KG
|
|
Working Current
|
45W
|
|
Opening Speed
|
3-8S
|
|
Opening Time
|
1-30S
|
|
Working Life
|
>=200 Ten Thousand Times
|
|
Protection Level
|
IP66
|
|
Application
|
Airports,smart building,smart communities,prisons,bank
|
|
Opener Weight
|
9KG
|
Products Structure
