Quick Details
-
Type:
-
Li-Ion
-
Model:
-
NCR18650BD
-
Color:
-
Green
-
Top:
-
Flat top
-
Protected:
-
NO
-
MOQ:
-
No Limit
-
Quality:
-
Original imported
-
Used for:
-
electronic cigarette, flashlights and power tools
-
Stock:
-
Large
-
Skype:
-
susie.soshine
Quick Details
-
Brand Name:
-
for Panasonic
-
Model Number:
-
NCR18650G
-
Place of Origin:
-
Japan
-
Type:
-
Li-Ion
-
Model:
-
NCR18650BD
-
Color:
-
Green
-
Top:
-
Flat top
-
Protected:
-
NO
-
MOQ:
-
No Limit
-
Quality:
-
Original imported
-
Used for:
-
electronic cigarette, flashlights and power tools
-
Stock:
-
Large
-
Skype:
-
susie.soshine
NEWEST! NCR18650BD 18650 3200mah battery cell
* NCR18650BD is a 18650 3200mah li-ion battery cell which has the highest capacity in the world!
1. Rated Capacity: 3200mah (0.2C discharge at 20°C)
2. Minimum Capacity: 3150mAh (0.2C discharge at 25°C)
3. Typical Capacity: 3200mAh (0.2C discharge at 25°C)
4. Nominal Voltage: 3.6V
5. Discharging End Voltage: 2.5V
6. Charging Current (Std.): 960mA (0.3C)
7. Charging Voltage: 4.20V±0.05V
8. Charging Time (Std.): 5.0hours
9. Continuous Discharging Current (Max.): 3C
10. Internal Resistance: less than 100Mω(AC Impedance 1kHz)
11. Weight: less than 47.5g
12. Dimensions: (D)18.25*(H)65.10mm
13. Operating Temperature
Charge: 0~ +40°C
Dicharge: -20~ +60°C
14. Storing Conditions
less than 1month: -20 ~ +50°C
less than 3months: -20 ~ +45°C
less than 1year: -20 ~ +20°C
* Do not incinerate;
* Do not disassemble;
* Do not short positive and negative contacts;
* Do not expose to heat;
* Do not completely discharge;
* Do not use force to install a lithium battery;
* Use only high quality battery charger;
* Charge fully before first use;
* Store in cold and dry place at approximately nominal voltage.
Advantages of recommendations:
1.12 months Manufacturer's Warranty . Buy with confidence!
2.. Each cell with high capacity of the limited size
3. With cells to make up a pack ,and between the cells,there is good quality match.which is achieved through strict control technics procedure.
4.Shortcut delivery----we can supply you products within a week.
5.Circumspect after service-- if there is quality problem,we can give you replacement.
6. PCM functions---over charge,over discharge,temperature control,over current with balance.
7. Dimensions can be designed as your requirement.

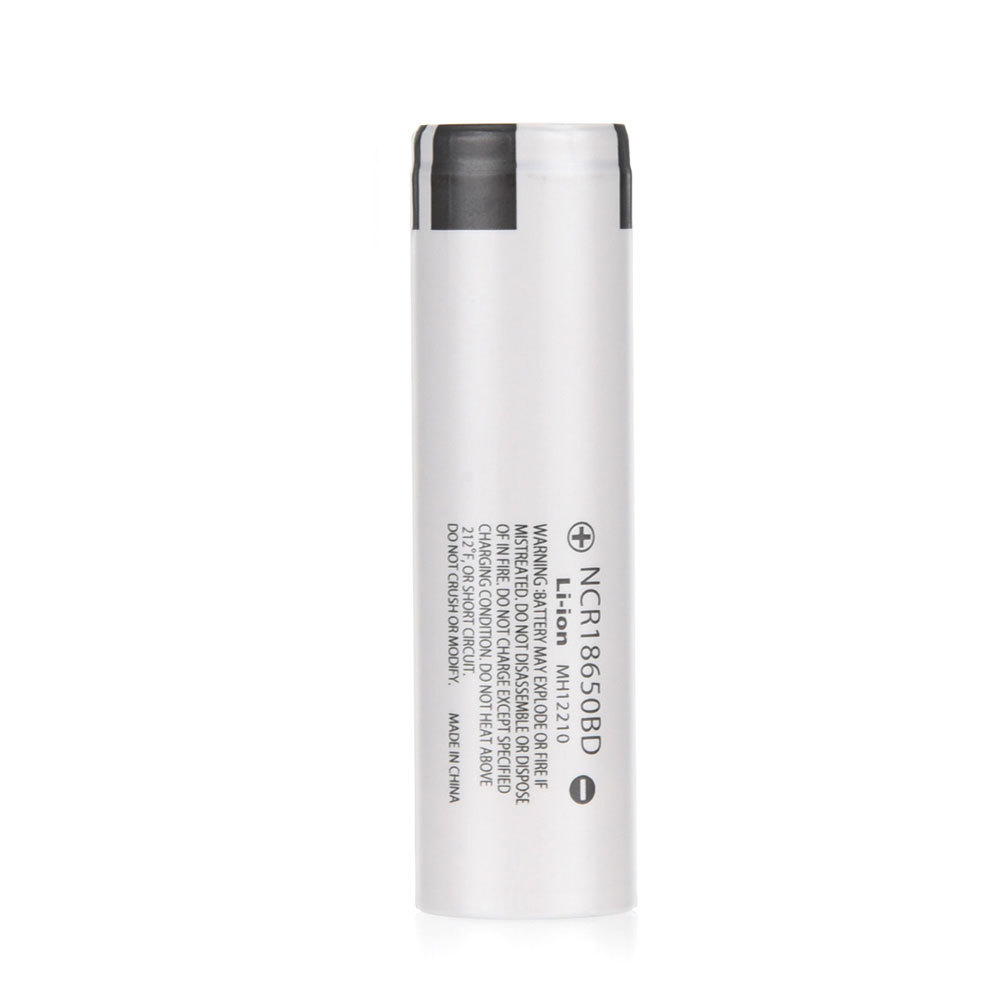

Pictures:
Flat top without protection:
| Other terms: |
|
Shipment terms: DHL, TNT, FedEx, UPS, EMS Payment terms: Paypal, Western Union, T/T MOQ: 1~999pcs (No Limit) Delivery: 2~7 working days |
Shenzhen Soshine Battery Co., Ltd concern your problem and difficulties when you using our products. We will try our best to provide
all-around service and support to you via our official website, customer service email and questionnaire survey.
Customer Support Email:
susie#soshine.com.cn
Notice:
1. Waterproof but not means it can be used in water.
2. Removes battery if not in use for long period.
3. Warning: Please do not irradiate it to human eyes, especially for Children ,or else,
it may cause temporary blindness for the harsh light of flashlight.
Manufacturer Warranty
As soon as you get the goods, please check carefully, if any damage or problem with it
please tell us soonly within one month, if our fault careless, we are really sorry and
will solve all problems by our side. On the other side every one of our products are under
strictly inspection, and make sure all of them in good condition only after ship out.
