Quick Details
-
Output:
-
DC12V/1.5A
-
Working Current:
-
≤15mA
-
Environment Temperature:
-
-20°C~60°C
-
Relative humidity:
-
<95% No Dews
-
Response Time:
-
< 8s
-
Warning level:
-
0.090mg/L; Danger level: 0.250mg/L
-
Accuracy:
-
±8%
Quick Details
-
Place of Origin:
-
Henan, China
-
Sensor Type:
-
fuel cell sensor
-
Working Voltage:
-
AC110V~AC220V, 50/60HZ
-
Output:
-
DC12V/1.5A
-
Working Current:
-
≤15mA
-
Environment Temperature:
-
-20°C~60°C
-
Relative humidity:
-
<95% No Dews
-
Response Time:
-
< 8s
-
Warning level:
-
0.090mg/L; Danger level: 0.250mg/L
-
Accuracy:
-
±8%
Competitive AT319coin operated breathalyzer human life safety producer
1.Technical Parameter of AT319 breathalyzer
|
Model |
AT319 |
|
Sensor type |
fuel cell sensor |
|
Test Range |
0.000~2.000mg/l(0.400%B.A.C; 4.000‰B.A.C; 4.000g/l;) |
|
Warning level |
0.090mg/L |
|
Fail level |
0.250mg/L (could be modified) |
|
Accuracy |
+/-0.005 at 0.05BAC% |
|
Work temperature |
0 °C~50°C |
| Response Time |
< 8s |
|
Work humidity |
less than 95%RH (No Dews) |
|
Breath sampling time |
about 5 seconds continuous breath |
|
Indication manner |
mg/l,mg/100ml,g/l ,%BAC,‰BAC optional |
|
Coin for single time |
0—15 (For 0, the tester can be tested without coin) |
|
Coin diameter |
20mm – 28mm |
|
Coin thickness |
1.2mm – 2.5mm |
|
Coins Capacity |
about 200 pieces |
|
Straw capacity |
200pcs |
|
Dimension l×b×h(mm) |
250×105×400 |
2.Main Features of AT319 breathalyzer
1. Suitable for bar or restaurant, hotel, disco ect
2. Fuel cell sensor ,sensor module rechangeable
3. Coin operated
4.Used by disposable straw
5.Straw box for 200pcs straw one time
6. Other language panel offered
7.Audio and light warning method
8. Test result with 4 digits display
9.Bright LED guide the operating procedure on the panel
10.Power by AC adaptor 110/220V
11.Setup 1 kind coin with 1-15pcs
12.Press straw dispenser to get 1 straw
3.Product Description of AT319 breathalyzer

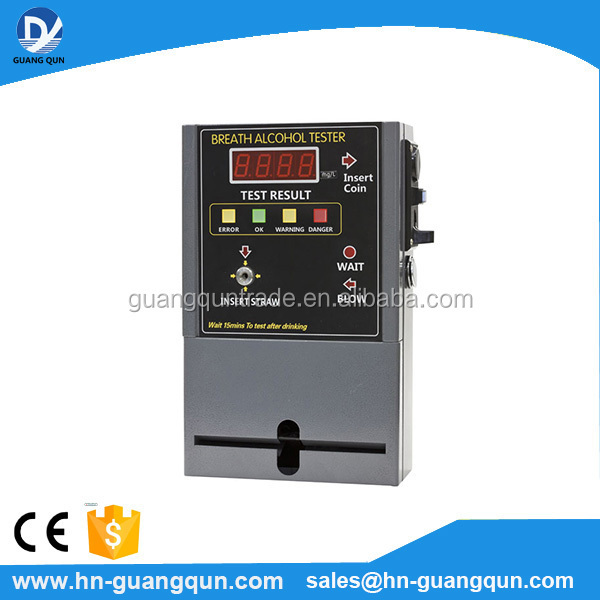

AT319 is a coin-operated and wall-mounted breath alcohol tester which is suitable for public use in bars, restaurants, nightclubs, casions, big companies or anywhere alcohol is consumed.This self-service machine is designed to measure alcohol concentration in the human body. With advanced fuel cell alcohol sensor, this device has excellent sensitivity and reproducibility. When the alcohol content exceeds the preset alarming level, it will send out an alarm warning and show the result directly and clearly on the digital LED display.
4.Your may also interested In
5.Application Area
6.Packing & Delivery
Packing : Standard Packing
7.About Us Company Introduction
8.Certificates
9.Why choose Us?
Company Advantage
(1)Certificates CE
(2)More than 10 years export experience
(3)Have our own R&D Team and Sensor is made by ourselves.
(4)Fast delivery Parts of products are available in stock and can send within 3 working days
(5)After-sales Service All the products have 1 year warranty, and It will be free from maintenance within warranty period, products over warranty period for paid services.
