Quick Details
-
Brand Name:
-
ricool
-
Theory:
-
Resistance Sensor
-
Output:
-
Digital Sensor
-
Description:
-
floor scale load cell
-
capacity:
-
1ton 2ton 3ton 5ton 10ton
-
cable:
-
common cable/metal cable
-
brand:
-
can put your brand
Quick Details
-
Use:
-
PRESSURE SENSOR
-
Model Number:
-
sqb
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ricool
-
Theory:
-
Resistance Sensor
-
Output:
-
Digital Sensor
-
Description:
-
floor scale load cell
-
capacity:
-
1ton 2ton 3ton 5ton 10ton
-
cable:
-
common cable/metal cable
-
brand:
-
can put your brand

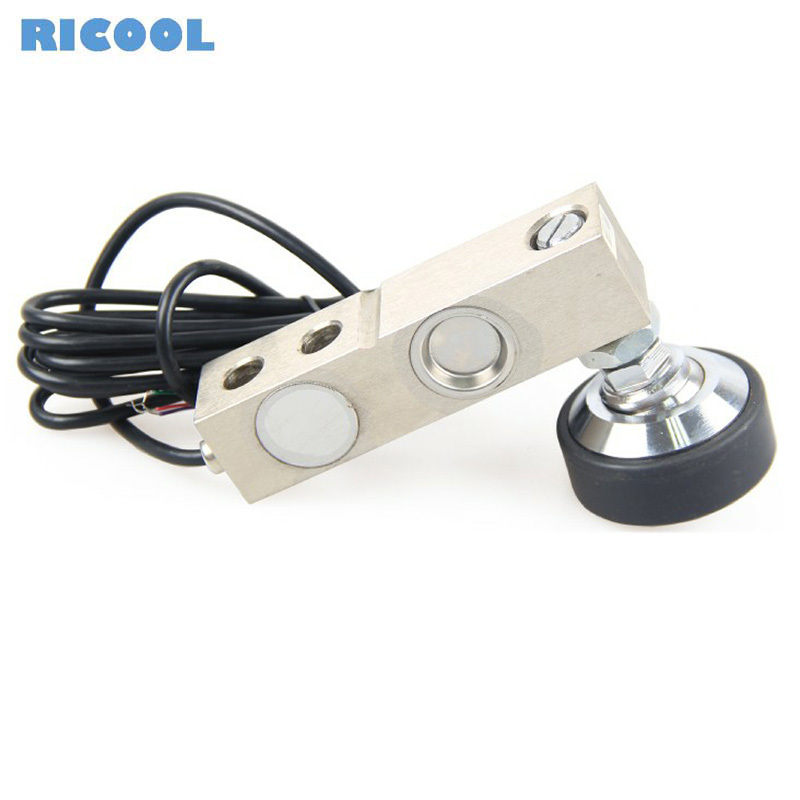

Floor Weighing Scale Load Cell 1Ton 2ton 5ton Load Cell Sensor Shear Beam Load Cell 1t
FEATURES:
Capacity: 0.1t to 10t
Theaded load hole confirguration
Low profile
OIML C3 approval
Optional material: stainless steel, alloy steel
APPLICATION:
Floor scale
Tank weighing
|
SPECIFICATION: |
|
|
Rated capacity: 0.1ton to 10ton |
Operating temperature range: -30 to +70℃ |
|
Rated output:2.0±0.002mv/v(0.1t~0.3t); 3.0±0.003mv/v(0.5t~10t) |
Maximum safe overload;150% OF R.C |
|
Combined error:±0.03% F.S(alloy steel); ±0.05% F.S(stainless steel) |
Ultimate safe overload;180% OF R.C |
|
Non-repeatability:±0.02% F.S |
Recommended Excitation;10 to 12V DC |
|
Non-linearity:±0.02% F.S |
Maximum Excitation;15V DC |
|
Hysteresis error:±0.02% F.S |
Environment protection: IP67(0.1t~0.3t); IP68(0.5t~10t) |
|
Zero balance: ±1% F.S |
Input impedance: 400±20Ω |
|
Creep error(30minutes): ±0.02% F.S |
Output impedance: 352±3Ω |
|
Temperature effect on zero: ±0.02% F.S |
Insulation resistance at 50V DC: ≥5000MΩ |
|
Temperature effect on output: ±0.02% F.S |
Material: nickel-plated alloy steel;Stainless steel |
|
Compensated temperature range: -10 to +40℃ |
Cable length: (1.5/3)meter(0.1t~2.5t),4.2meter(3t~5t),5meter(7.5t~10t),diameter 6mm |
