Quick Details
-
Type:
-
Single Preset Counter
-
Fixed Hole:
-
72*72
-
Power Supply:
-
110V /220VAC±20% , 50/60 Hz
-
DC Power Output:
-
12V/ 60mA max.
-
Input Method:
-
Single or Two Phase Input Selectable
-
Divisor:
-
Range :1~9999
-
Multiplier:
-
Range : 0.001~9.999
-
Memory Method:
-
EPROM
Quick Details
-
Brand Name:
-
FOTEK
-
Place of Origin:
-
TAIWAN
-
Model Number:
-

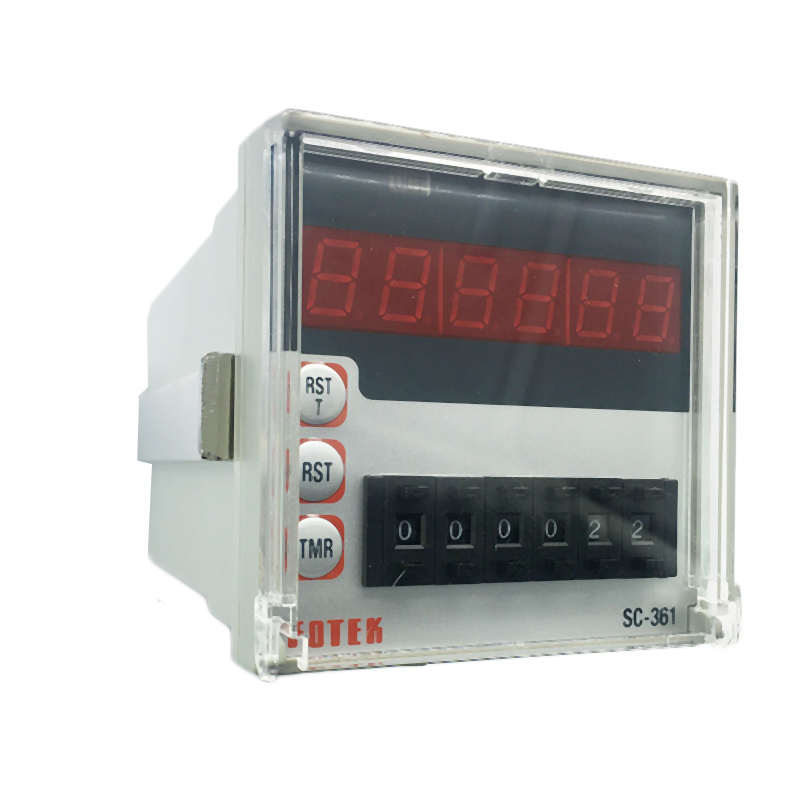

SC-361
-
Type:
-
Single Preset Counter
-
Fixed Hole:
-
72*72
-
Power Supply:
-
110V /220VAC±20% , 50/60 Hz
-
DC Power Output:
-
12V/ 60mA max.
-
Input Method:
-
Single or Two Phase Input Selectable
-
Divisor:
-
Range :1~9999
-
Multiplier:
-
Range : 0.001~9.999
-
Memory Method:
-
EPROM
Product Description
Specification
|
Model
|
SC-341
|
SC-361
|
SC-3616
|
||
|
Outline
|
72*72
|
72*72
|
72*72
|
||
|
TYPE
|
Single Preset Counter
|
Single Preset Counter
|
Single Preset Counter
|
||
|
Output Method
|
one relay
|
one relay
|
one relay
|
||
|
Output Control
|
N/R/C Selectable
|
N/R/C Selectable
|
two relay
|
||
|
Contact Rated
|
5A/ 250 VAC Max.
|
5A/250 VAC Max.
|
|
||
|
Output Delay Timer
|
Auto Reset Timer Range : 0.01S~99.99s
|
0.01S~99.99s
|
|
||
|
Power Supply
|
110V/220VAC±20% , 50/60 Hz
|
|
|
||
|
DC Power Output
|
12V / 60mA max.
|
|
|
||
|
Input Method
|
Single or Two Phase Input Selectable
|
|
|
||
|
Counting Method
|
High Speed <A> <2.5K CPS , Low Speed <B> < 60 CPS
|
|
|
||
|
Divisor
|
Range: 1~9999
|
|
|
||
|
Multiplier
|
Range : 0.001~9.999
|
|
|
||
|
Memory Method
|
EEPROM
|
|
|
||
|
ESD Strength
|
Over 2.5 KV / 1min , Between Power And Each Terminal
|
|
|
||
|
Isolation Strength
|
Over 100MQ/500VDC , Between Power And Each Terminal
|
|
|
||
|
Operating Temp./Hum.
|
-20C~+80C; 35%~85%RH
|
|
|
||
