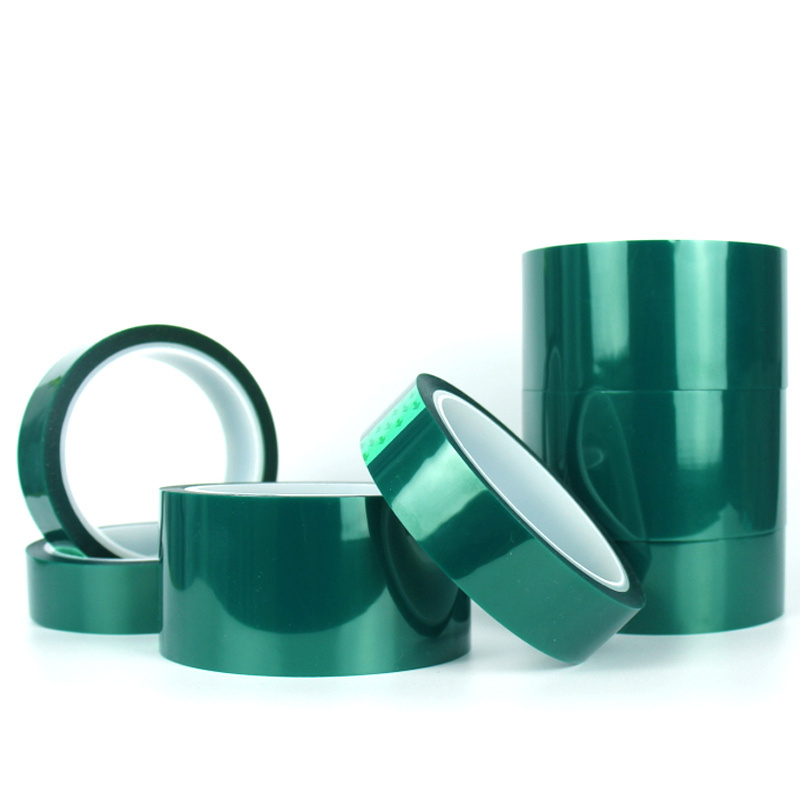

Heat Resistant Polyester Film PET Tape with Silicone Adhesive for Electronic Assembly

FOB Reference Price: Get Latest Price

≥10 Rolls

US $0.6

≥500 Rolls

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Design Printing:: Offer Printing

Material:: Polyester

Feature:: Heat-Resistant

Use:: MASKING

Place of Origin:: Fujian, China

Brand Name:: AERCHS

Model Number:: AHSPET0061

color:: Light Green , Transparent , Amber

Backing:: Polyester

Total Thickness:: 0.06mm

length:: 33m , Custom Size Available

Width:: 980mm, Custom Size Available

Adhesion to Steel(N/25MM):: 7±2

Elongation at break (%):: 35%-55%

Breakdown Voltage (KV):: 4-6

Short-term temperature(℃):: 220℃

Long-term temperature(℃):: 180℃

Quick Details

Adhesive:: Silicone

Adhesive Side:: Single Sided

Adhesive Type:: Pressure Sensitive

Design Printing:: Offer Printing

Material:: Polyester

Feature:: Heat-Resistant

Use:: MASKING

Place of Origin:: Fujian, China

Brand Name:: AERCHS

Model Number:: AHSPET0061

color:: Light Green , Transparent , Amber

Backing:: Polyester

Total Thickness:: 0.06mm

length:: 33m , Custom Size Available

Width:: 980mm, Custom Size Available

Adhesion to Steel(N/25MM):: 7±2

Elongation at break (%):: 35%-55%

Breakdown Voltage (KV):: 4-6

Short-term temperature(℃):: 220℃

Long-term temperature(℃):: 180℃

Products Description

AHSPET0061 is a 0.06mm thickness silIcone adhesive PET tape, which is designed for electrical insulation and high temperature masking & insulation applications to protect circuit board. It meets the needs of PCB manufacturing in gold finger soldering. It's also suitable for masking and splicing.

Color	Light Green, Blue, Red
Backing Thickness:	1 mil ( 0.025 mm )
Total Thickness:	2.6 mil ( 0.066 mm )
Adhesive:	Silicone
Backing:	Polyester Film
Adhesive coating:	Single Coated
Elongation Percentage:	35% - 55%
Dielectric Strength:	4000V - 6000V
Short-term temperature:	428 ℉ ( 220 ℃ )
Long-term temperature:	356 ℉ ( 180℃ )

Features

* Made of heat resistant polyester film and silicone pressure sensitive adhesive

* Wide Operating temperature range from -73℃ ( 99℉ ) to 220℃ ( 428℉ )

* Widely used in e lectrical insulation, and high temperature masking & insulation

* Excellent thermal, chemical, abrasion and radiation resistance

* Customized services are available.

Application

Widely used in High Temperature Insulation & Masking

Automotive Painting

High temperature powder coating

ARCHS Converting Capabilities

ARCHS Tape Solution Co.,Ltd have specialized in tape solution for over 20 years . With experienced team and creatives, we are able to help design all kinds of tapes solutions and customize adhesive backings, sizes, and shapes that you need to meet your requirements and reduce your manufacturing / fabrication cost. Our custom tape services includes :

Die Cutting Services

Laminating Services

Printing Services

Rewinding Services

Sheeting Services

Slitting Services

Prototyping Services

And More ... ...

Whether you need a standard tape or custom parts, please free to contact us, we have the best solution for your application.

About ARCHS

FAQ

Q :Get fast sampling ( free samples excluding freight ) ?
* Available free sample sizes: 2mm to 150mm width X 33M length .
*Please pay 40 USD freight to paypal account
* Quick Lead time: within 3 workdays.

Q:What is your MOQ?
*Sample Order are available .
*100 Square meter (1 Square Meter Equals to 30mm X 33M roll) , For Example 200 Rolls MOQ of 15mm X 33M rolls.

Q: How can we assit you locate the tape you need ?
1 show us the datasheets pictures you have
2 tell us your application
3 let kow quantity X size (width X length X thickness)
4 Then we recommend and offer best price to you

Q:What certificates you have for your products?
* We have some patents and ISO9001 and ISO2004 Certification and other certifications like CE,UL,SGS,RoHs, Reach etc.
