Quick Details
-
Input:
-
4*HDMI
-
Output:
-
4*HDMI
-
Resolution:
-
4K@30Hz, 1080P@60Hz
-
Material:
-
Metal Housing
-
Warranty:
-
1 Year
-
Power supply:
-
DC12V
Quick Details
-
Model Number:
-
MT-HD44LH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MT-ViKI
-
Input:
-
4*HDMI
-
Output:
-
4*HDMI
-
Resolution:
-
4K@30Hz, 1080P@60Hz
-
Material:
-
Metal Housing
-
Warranty:
-
1 Year
-
Power supply:
-
DC12V
Series Available
|
HDMI matrix 4X4
|
Hybrid matrix switch
|
HDMI matrix +video wall
|
Video wall controller
|
|||
|
|
Available for--
|
Available for--
video wall controller 2x2 Video wall controller 3x3 |
||||
|
Special Note:
MT-VIKI authorize clients to sell our branded product, but you may also customize brand (MOQ required)
|
|
|
|
|||
Product Features
About this item

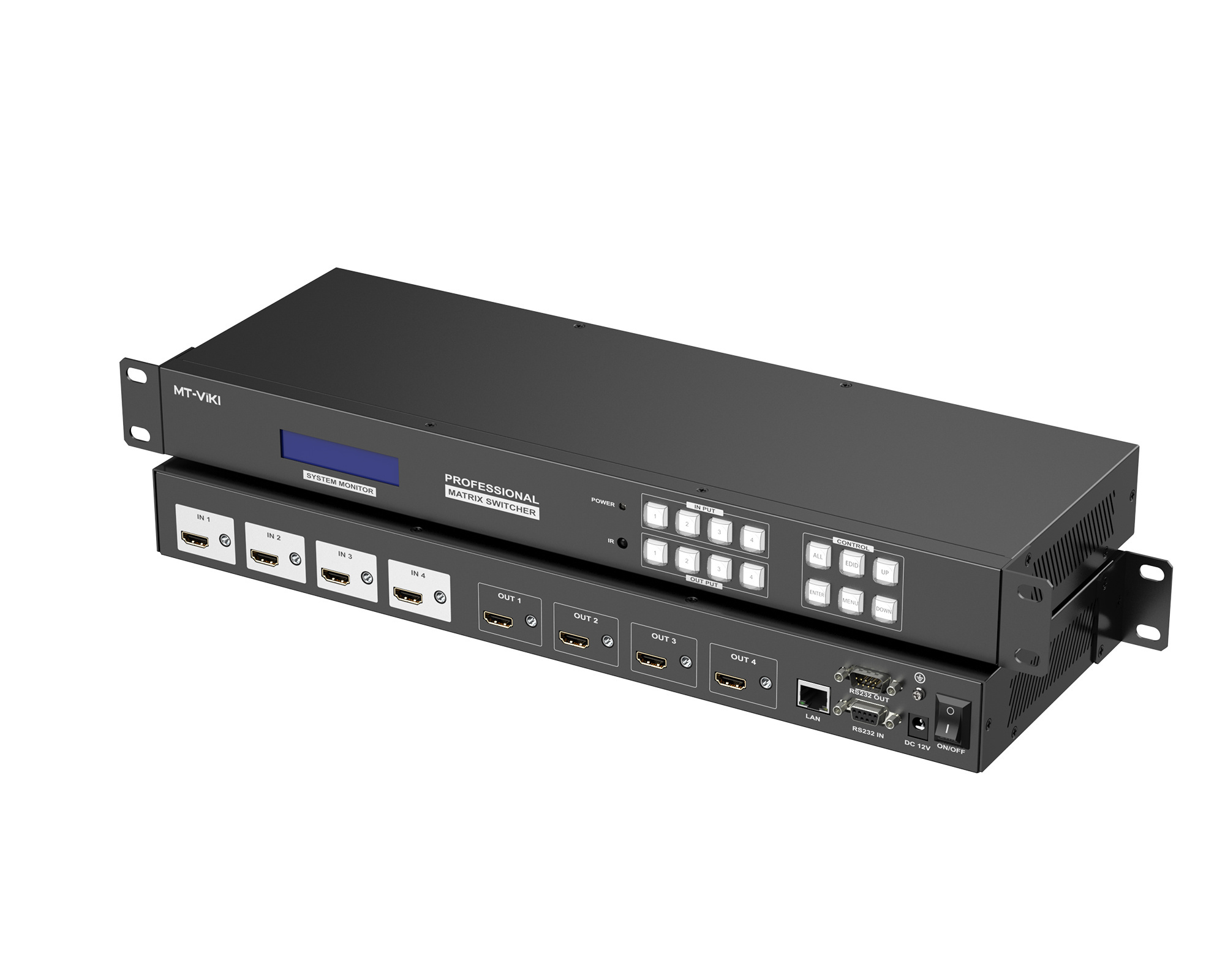

Model：MT-HD44LH
Description:
This HDMI matrix is a new generation that our company is dedicated to create. It supports HDMI1.4 standard, EDID management and resolution up to 4K@30Hz, 1080@60Hz. Support audio and video synchronization switching, suitable for conference rooms, command centers, multimedia rooms and other application scenarious.
Feature:
*Resolution max up to 4K*2K@30Hz .
*Each signal supports HDCP decoding , blu-ray, 3D.
This HDMI matrix is a new generation that our company is dedicated to create. It supports HDMI1.4 standard, EDID management and resolution up to 4K@30Hz, 1080@60Hz. Support audio and video synchronization switching, suitable for conference rooms, command centers, multimedia rooms and other application scenarious.
Feature:
*Resolution max up to 4K*2K@30Hz .
*Each signal supports HDCP decoding , blu-ray, 3D.
*Supports
EDID rewritable and EDID self-adaptive
function, better adapt to the diversified display devices in the field and improve compatibility.
*Using high quality
HDMI version 1.4
cables, the transmission distance can be up to 15m.
*Switching options by:
button, IR remote control, RS232 serial port
without delay.
*Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format.
*Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format.
*Fits for standard
1U 19-inch Cabinet/Rack
. Built-with Acrylic crystal button and LED backlit.
* 3.4G high-bandwidth original switching chip is used, so that all signals can be switched synchronously.
* 3.4G high-bandwidth original switching chip is used, so that all signals can be switched synchronously.
Product Specifics
|
Product name
|
4K 30Hz HDMI matrix switch 4X4
|
|
Input
|
4* HDMI
|
|
Ouput
|
4* HDMI
|
|
Device height
|
1U
|
|
Support resolution
|
480i, 576i, 480p, 576p, 720p ,1080i, 1080p@24/30/50/60/120Hz, 1080P 3D@60Hz, 4K*2K@30Hz
|
|
Control interface
|
1* RS-232 IN, 1* RS-232 OUT, 1* RJ-45(optical)
|
|
HDMI Version
|
HDMI 1.4
|
|
HDCP Version
|
HDCP 1.2
|
|
Protocol standard
|
Support EDID management and rewritable, HDCP decoding
|
|
Color space
|
Support RGB444, YUV444, YUV422 color space, support x.v.Color extended color gamut standard
|
|
Audio output
|
Support left and right stereo sound
|
|
Electrostatic protection
|
Human discharge mode: ± 8kV (air gap discharge) ± 4kV (contact discharge)
|
|
Control method
|
Standard button, RS232, IR control switching; WEB control; APP control
|
|
Power adapter
|
AC:100V-260V 50/60Hz DC:12V/2A
|
|
Input voltage
|
Power AC 100V ~ 260VAC, 50/60 Hz
|
|
Power consumption
|
30W(max)
|
|
Dimension(mm)
|
480mm × 252mm × 57mm
|
|
Weight
|
3.2Kg
|
|
Operating temperature
|
0 ºC~40 ºC/32 ºF~104 ºF
|
|
Storage temperature
|
−20 ºC~60 ºC/−4 ºF~140 ºF
|
About MT-VIKI
MT-VIKI, specialized in research & development of audio & video transmission
Founded in 2003, is manufacturer of AV switchers, splitters, KVM switches, HDMI matrix, video wall controller and HDMI extender series, and is well-known for KVM switches in the past decades. As one of the HDMI adopters, MT-VIKI has been devoting to reaching or exceeding clients' expectation by the leading technology, and successfully launched 5 series products worldwide.
