Quick Details
-
Brand Name:
-
Airandus
-
Model Number:
-
SCP-A, SCP-B
-
Product name:
-

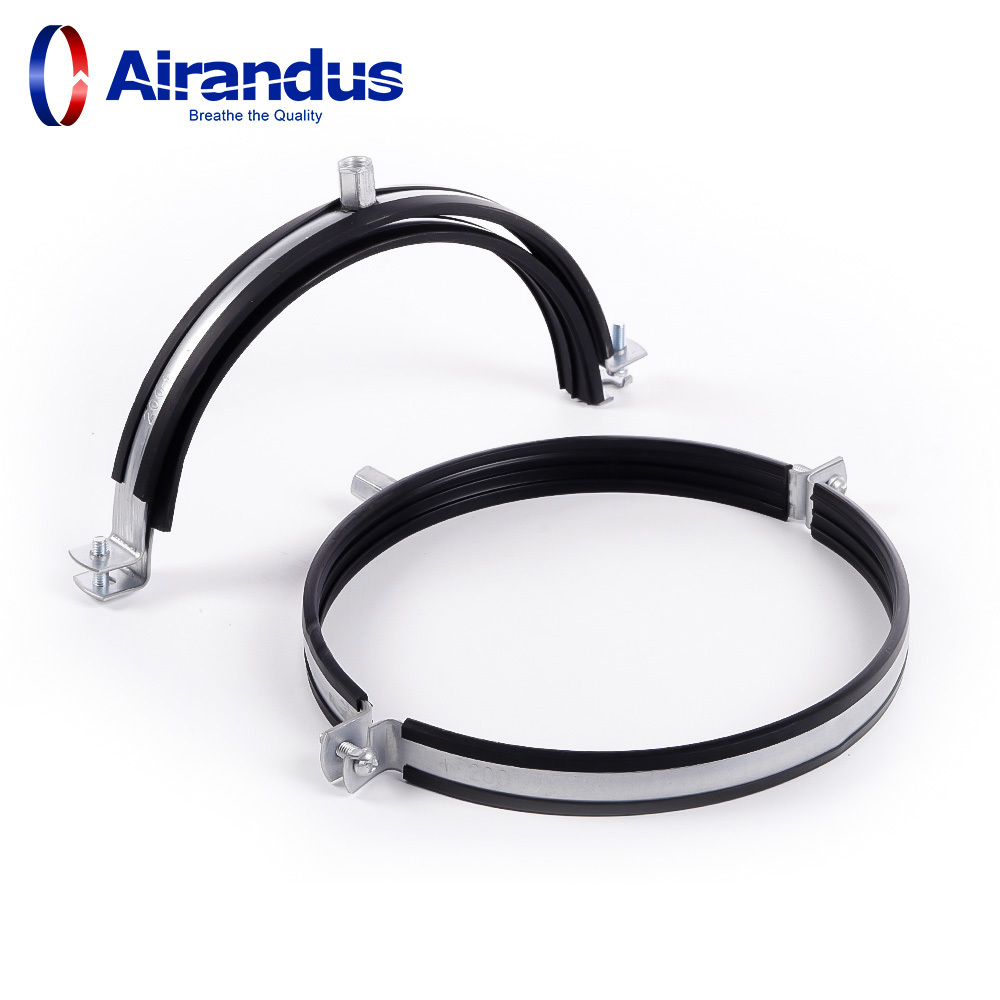

Suspension Clamp with Rubber
-
Size:
-
Standard Size
-
Application:
-
HVAC System Project
-
Type:
-
Ventilation Equipment
-
Function:
-
Suspension of rigid circular ducts
-
Feature:
-
Durable
-
Standard Size:
-
80 up to 400mm
Quick Details
-
Measurement system:
-
INCH
-
Material:
-
Stainless steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Airandus
-
Model Number:
-
SCP-A, SCP-B
-
Product name:
-
Suspension Clamp with Rubber
-
Size:
-
Standard Size
-
Application:
-
HVAC System Project
-
Type:
-
Ventilation Equipment
-
Function:
-
Suspension of rigid circular ducts
-
Feature:
-
Durable
-
Standard Size:
-
80 up to 400mm
Products Description
Spiral Duct Clamp
1. Used for suspension of rigid circular ducts.
2. Dia 80 up to 400 mm with screw M6 on either side, 1-point suspension with M8/M10 nut on top.
3. Dia 450 up to 800 mm with 2-point suspension with M10 hole on either side
4. It ensures fast assembly thanksto an easy system of locking and tightening.
5. Version with a gasket prevents the transmission of vibrations from the system to the building’s structure.
2. Dia 80 up to 400 mm with screw M6 on either side, 1-point suspension with M8/M10 nut on top.
3. Dia 450 up to 800 mm with 2-point suspension with M10 hole on either side
4. It ensures fast assembly thanksto an easy system of locking and tightening.
5. Version with a gasket prevents the transmission of vibrations from the system to the building’s structure.
|
Size
|
T
|
Connection nut
|
|
80
|
1,5
|
M8+M10
|
|
100
|
1,5
|
M8+M10
|
|
125
|
1,5
|
M8+M10
|
|
140
|
1,5
|
M8+M10
|
|
150
|
1,5
|
M8+M10
|
|
160
|
1,5
|
M8+M10
|
|
180
|
1,5
|
M8+M10
|
|
200
|
1,5
|
M8+M10
|
|
224
|
1,5
|
M8+M10
|
|
250
|
1,5
|
M8+M10
|
|
280
|
1,5
|
M8+M10
|
|
300
|
1,5
|
M8+M10
|
|
...
|
...
|
...
|
