Quick Details
-
Weight:
-
180 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
tractor behind snowplow
-
Type:
-
tractor behind Sweeper
-
Match tractor (HP):
-
20-100HP
-
Brush Roller Length:
-
1740mm, 1910mm, 2100mm, 2450,
-
linked Type:
-
POT 3 point hitch
-
clean Width:
-
120-250cm
-
Power:
-
hydraulic and PTO
-
useing field:
-
Road debris and snow cleaning
-
Brush Dia.::
-
500mm
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincerely
-
Dimension(L*W*H):
-
1380*800*800mm
-
Weight:
-
180 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
tractor behind snowplow
-
Type:
-
tractor behind Sweeper
-
Match tractor (HP):
-
20-100HP
-
Brush Roller Length:
-
1740mm, 1910mm, 2100mm, 2450,
-
linked Type:
-
POT 3 point hitch
-
clean Width:
-
120-250cm
-
Power:
-
hydraulic and PTO
-
useing field:
-
Road debris and snow cleaning
-
Brush Dia.::
-
500mm
-
Certification:
-
CE, ISO
High Quality ! Farm/Garden Tractor / ATV Mounted Road Sweeper / Broom / Plow Exported Worldwide
The feature of mini road sweeper
1.The road sweeper can be matched to tractor,wheel loader,forklift,
2. P owered by hydraulic output of these machinery,only tractor could be driven by PTO.
3.PP with steel wires brushes.
4. CE certificate
5. To clear thin layer of deep dust,leaves, sansand , it will be more effective to use it together with other implements . It's also used in sweeping snow .
The specification of mini road sweeper:
|
Items |
SX120 |
SX160 |
SX180 |
|
Structure weight: |
180kg |
220kg |
260kg |
|
Overall dimension(mm): |
1380*800*800mm |
1780*800*800mm |
1980*800*800mm |
|
Brush w i dth(mm) |
1180 |
1580 |
1780 |
|
work efficiency (m2 /hour) |
16800 |
22100 |
24800 |
|
Required tractor power |
20-45 |
30-50 |
40-80 |
|
Connecting method with tractor |
3 point suspension |
3 point suspension |
3 point suspension |
|
Driveline specification: |
Motor drive |
Motor drive |
Motor drive |
|
Brush material: |
PP / steelwire mix |
PP / steelwire mix |
PP / steelwire mix |
|
Brush axle material |
Seamless steel |
Seamless steel |
Seamless steel |
|
brush rotation speed |
180 rpm |
180 rpm |
180 rpm |
|
Brush diameter |
560mm |
560mm |
560mm |
|
Min order quantity : |
5 sets |
5 sets |
5 sets |
|
CBM per package(m): |
0.9 |
1.15 |
1.28 |

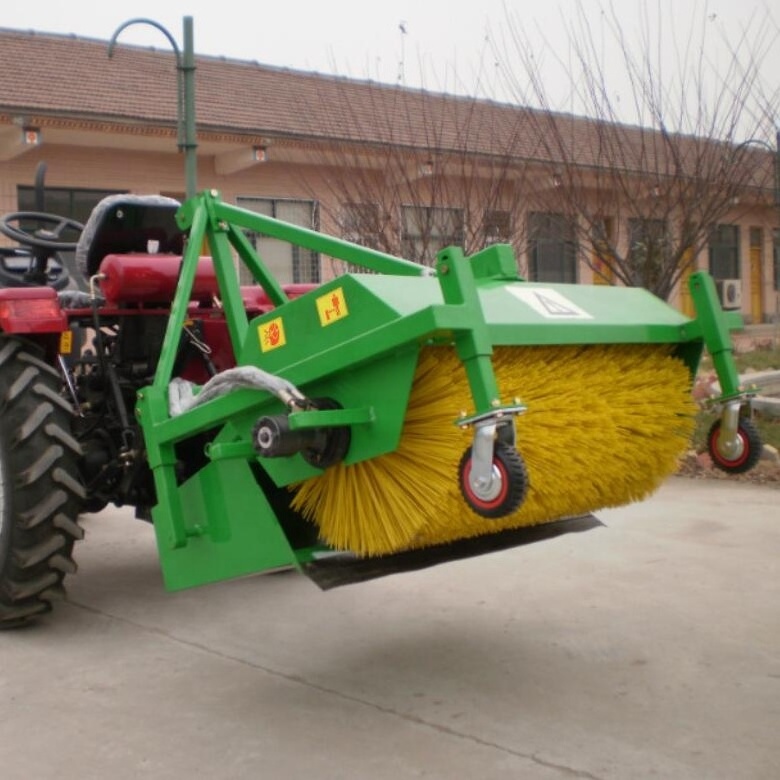

T he photos of mini road sweeper:
packing of snow sweeper:
