Quick Details
-
Size:
-
By customer needs
-
Place of Origin:
-
Shandong, China
-
Max Payload::
-
60Tons
-
Logo::
-
By customer Needs
-
Condition::
-
New Made / Customize by needs
-
Axle Style::
-
American /Germany 13-20Tons
-
Suspension::
-
Bogie/Air/Mechanic/Rigid Optional
-
Color::
-
By Needs
-
USAGE::
-
Transport 20ft/40ft Containers or loose cargo on Roro Ship
-
Aftersale::
-
1 year
-
OE NO.:
-
3708322800116
-
Certification:
-
ISO CCC BV CE DOT
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60Tonnages
-
Brand Name:
-
ELEPH
-
Size:
-
By customer needs
-
Place of Origin:
-
Shandong, China
-
Max Payload::
-
60Tons
-
Logo::
-
By customer Needs
-
Condition::
-
New Made / Customize by needs
-
Axle Style::
-
American /Germany 13-20Tons
-
Suspension::
-
Bogie/Air/Mechanic/Rigid Optional
-
Color::
-
By Needs
-
USAGE::
-
Transport 20ft/40ft Containers or loose cargo on Roro Ship
-
Aftersale::
-
1 year
-
OE NO.:
-
3708322800116
-
Certification:
-
ISO CCC BV CE DOT

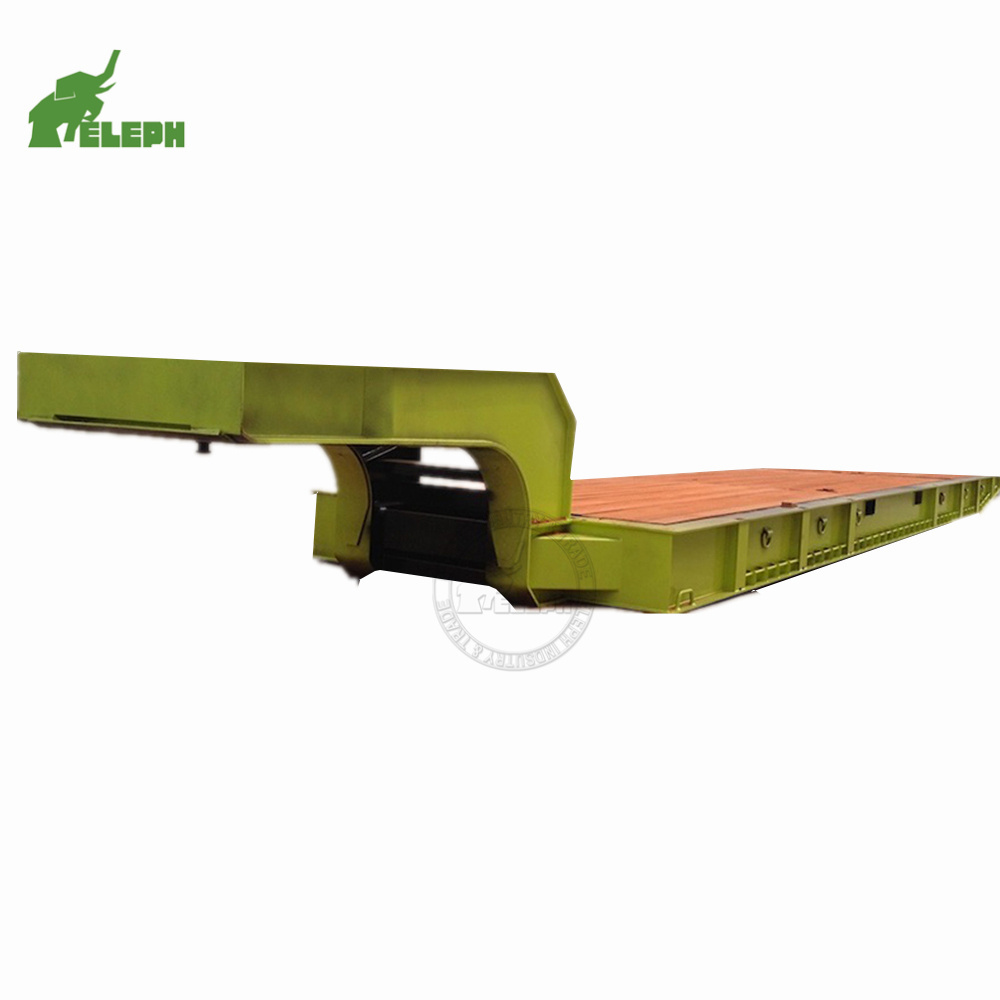

Bulk Cargo Transport Port Using Roro Gooseneck 40ft 45ft Mafi Trailer
|
Model No |
Eleph9231Sbt |
|
|
Overall Size |
12640*2650*742Mm |
|
|
Usage |
Transport 20ft/40ft Containers Or Loose Cargo On Roro Ship |
|
|
Rated Capacity |
60000kgs |
|
|
Tare Weight |
8000kgs |
|
|
Loading Deck L |
12400mm |
|
|
Rear Overhang |
3500Mm |
|
|
Axle Center Distance |
8315mm+1100mm |
|
|
Type |
Low Bed |
|
|
Wood Floor |
Tropical Hard Wood |
|
|
Axles |
Port Trailer Axles |
4 Sets |
|
Tyre |
28*22*22 Pressed-On Solid Tyre |
10 Sets(With 2sets Spare Tyres) |
|
Material |
High Strength Low Alloy Steel With 345Mpa Yield Strength Is Used For Welded H Beam And Fabricated Parts |
|
|
Main Beam |
Fabricated H Beam 540*200mm Top Plate:22mm Bottom Plate:25mm |
|
|
Deck |
45mm T Plankwood |
|
|
Kingpin Plate |
16mm Steel Plate Q345B |
|
|
Kingpin |
2 Bolt On Type |
|
|
Features |
Running Gear 2 Rocker Arms Lowered Box Construction 4 Axles 140x140, 100/80mm Paper Roller Bearings (30216/32020) 8 Steel Reinforced Solid Rubber Tires(22*16*16) |
|
