Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ALK-BA506EZE
-
Product Name:
-
Multifunctional Hospital Bed
-
Function:
-
Multi-function
-
Certificate:
-
SCE ISO13485 ISO9001
-
Castors:
-
4pcs Luxurious Central Locking Castors
-
Application:
-
ICU Room
-
Hospital furniture:
-
Multi-function Electric Hospital Medical Bed
-
Feature:
-
Eletric
-
Bed frame:
-
Anti-rust
-
Weight Capacity:
-
240KGS
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Brand Name:
-
AOLIKE
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ALK-BA506EZE
-
Product Name:
-
Multifunctional Hospital Bed
-
Function:
-
Multi-function
-
Certificate:
-
SCE ISO13485 ISO9001
-
Castors:
-
4pcs Luxurious Central Locking Castors
-
Application:
-
ICU Room
-
Hospital furniture:
-
Multi-function Electric Hospital Medical Bed
-
Feature:
-
Eletric
-
Bed frame:
-
Anti-rust
-
Weight Capacity:
-
240KGS
Product Description
|
Model No.
|
ALK-BA506EZE
|
|
Power supply
|
220V/110V,50HZ/60HZ
|
|
Outer dimensions
|
L2220*W1040mm(±10mm)
|
|
Mattress platform
|
L1945*W900mm(±10mm)
|
|
Bed height
|
460-700mm(±10mm)
|
|
Bed extension(optional)
|
200mm(±10mm)
|
|
Angle of back section
|
0 ~ 70° (±5°)
|
|
Angle of leg section
|
0 ~ 35°(±5°)
|
|
Trendelenburg and Retrendelenburg
|
≥12
|
|
Angle of Standing
|
0 ~ 85°(±5°)
|
|
Height of siderails (from mattress platform)
|
450mm(±10mm)
|
|
Safe working load
|
240KGS
|
Features:
1. Cold steel plate wholly molded surface, integrated frame treated with electrostatic spraying. Anti-aging and anti-rust,IPX4 protection against water and dust , motors Standard protection class: Ip54
2. PE head and foot board removable for CPR function
3. 4 pcs PE siderails , Convenient operation for patients and nurses.
4. Standing function
5. Battery backup, used in case of power failure
6. Four dia125mm castors with central brake system
8. Angle Indicator: The angle indicator at each side rails, show the angles of back and leg section.
9. Foot section correct to horizontal position, convenient for patients when leg traction
10. Back section decompression function, make the patient more comfortable
11. Standards: IEC 60601-1, IEC 60601-2-52, ISO13485:2016
12.Certificate: CE
Dimensions:
1. L2220* W1040 *H500-900mm
2. Sleep size: L1945*W900mm
3. Angle of back section 0 ~ 70° (±5°)
4.Angle of leg section: 0 ~ 35°(±5°)
5.Angle of Trendelenburg and Reverse Trendelenburg: 0 ~ 13°(±2°)
1. Cold steel plate wholly molded surface, integrated frame treated with electrostatic spraying. Anti-aging and anti-rust,IPX4 protection against water and dust , motors Standard protection class: Ip54
2. PE head and foot board removable for CPR function
3. 4 pcs PE siderails , Convenient operation for patients and nurses.

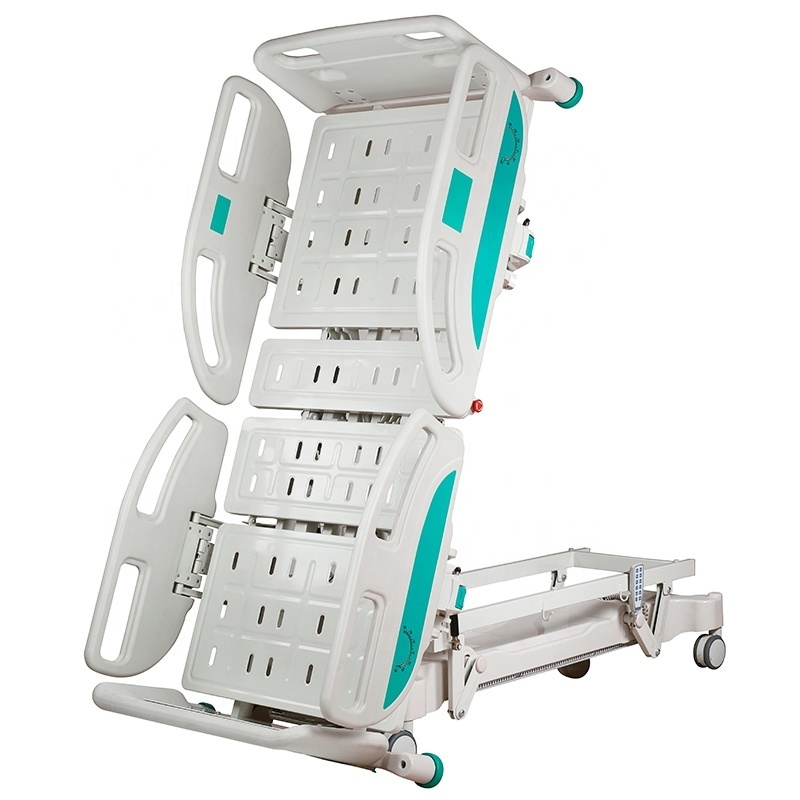

4. Standing function
5. Battery backup, used in case of power failure
6. Four dia125mm castors with central brake system
8. Angle Indicator: The angle indicator at each side rails, show the angles of back and leg section.
9. Foot section correct to horizontal position, convenient for patients when leg traction
10. Back section decompression function, make the patient more comfortable
11. Standards: IEC 60601-1, IEC 60601-2-52, ISO13485:2016
12.Certificate: CE
Dimensions:
1. L2220* W1040 *H500-900mm
2. Sleep size: L1945*W900mm
3. Angle of back section 0 ~ 70° (±5°)
4.Angle of leg section: 0 ~ 35°(±5°)
5.Angle of Trendelenburg and Reverse Trendelenburg: 0 ~ 13°(±2°)
6.Angle of Standing: 0 ~ 85°(±5°)
Accessories:
1. Stainless steel IV pole with four hooks.
2. 4pcs Drainage bag holder, 2 holders in each side
3. Mattress(optional)
Accessories:
1. Stainless steel IV pole with four hooks.
2. 4pcs Drainage bag holder, 2 holders in each side
3. Mattress(optional)
Manual and electric CPR
Electric CPR function and Manual CPR function
Back section decompression function
When the back rises, the back plate and the abdomen plate can retreat, increasing the area of the abdomen area, minimizing the abdominal pressure of the patient, and making the patient feel more comfortable
Foot section correct to horizontal position
Convenient for patients when leg traction,
more comfortable feeling
Related products
Certifications
Manufacturing Technique
Robotic ensure 360° full smooth wedlding
Panasonic and OTC Robotic ensure
360° full smooth wedlding.
Auto-Packing system
KUKA® Auto-Packing system import from Gernmany, which can improve work efficiency, reduce labor costs, improve the quality of product packaging.
11 Process epoxy painting
ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact,Effectively resist E. coli and Staphylococcus aureus, antibacterial rate is over 95%
Cases
Cases from all the world
Exhibition
We will attend the exhibioth,the quality products were neatly laid out in the exhibition hall. Welcome to our booth.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
