Quick Details
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
Donghe
-
encoder:
-
solid-shaft rotary encoder
-
encoder sensor:
-
incremental encoder
-
Certificate:
-
GB/T19001-2000,ISO9001:2000
-
Model:
-
PIB-1000-GO5E
-
Brand:
-
Donghe
-
Warranty:
-
12 MONTHS
-
Power supply:
-
D c +5Vor 5V-24V
-
Application:
-
Wide Range
-
Condition:
-
100% Original
-
Operating temperature:
-
-10℃~+70℃
Quick Details
-
Mounting Type:
-
motor encoder
-
Description:
-
worm motor magnetic encoder
-
Model Number:
-
PIB-1000-GO5E
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
Donghe
-
encoder:
-
solid-shaft rotary encoder
-
encoder sensor:
-
incremental encoder
-
Certificate:
-
GB/T19001-2000,ISO9001:2000
-
Model:
-
PIB-1000-GO5E
-
Brand:
-
Donghe
-
Warranty:
-
12 MONTHS
-
Power supply:
-
D c +5Vor 5V-24V
-
Application:
-
Wide Range
-
Condition:
-
100% Original
-
Operating temperature:
-
-10℃~+70℃

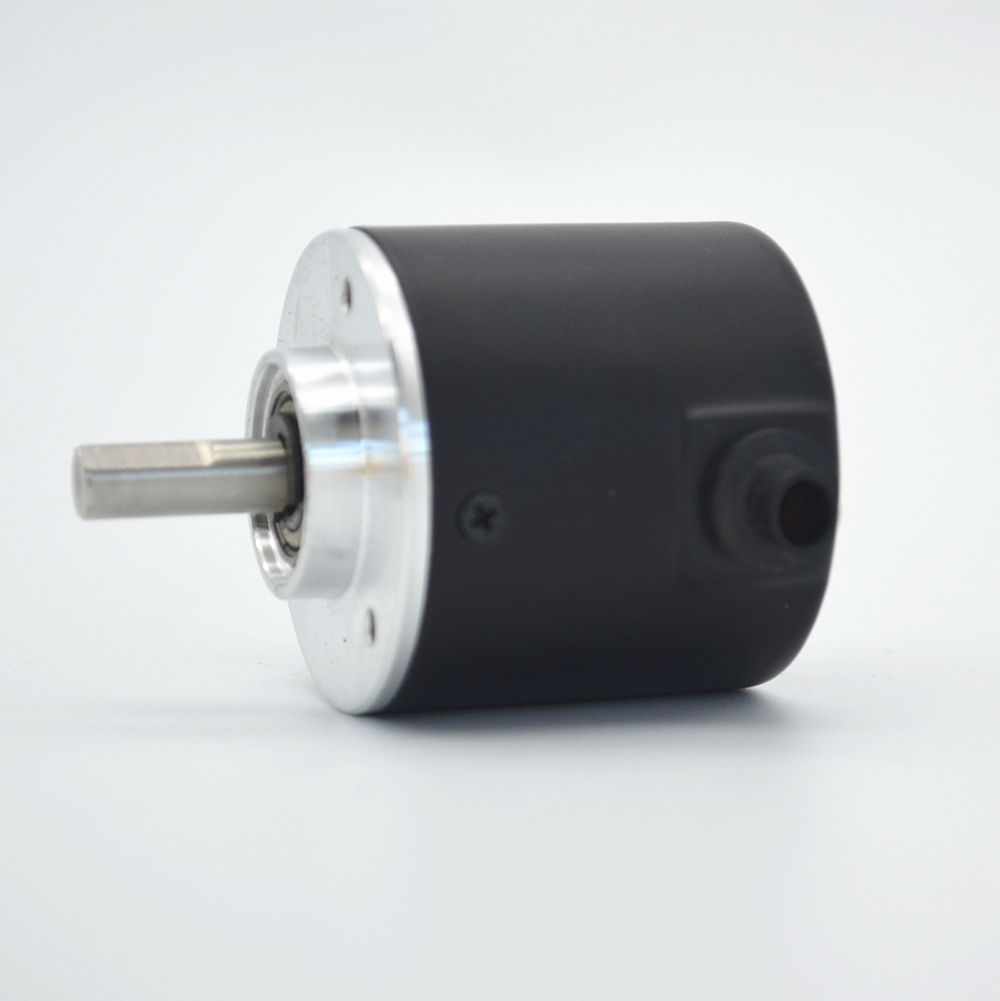

rotary incremental encoder E6B2-CWZ6C CWZ5B CWZ3E CWZ1X CWZ5G 1000PR 600P
Technical data : Outer diameter: 38mm,shaft diameter:6mm,1000ppr, dc5v,cable radial, voltage output,five wire.ABZ phase
Supply to Eastern Europe,Southern Europe,Northern Europe,Western Europe,Oceania,South America,South Asia,North America,Southeast Asia.
*
solid shaft type
* output circuits :
line driver,opencollector,push-pull,voltage
* pulse :
5-5000ppr
* Supply voltage :
D c +05v -24v
*Termination:
E: cable axial, C:connector radial, R:connector axial G:cable radial
*outer Diameter: 58mm/60mm, shaft Diameter:6mm/8mm/10mm
Tabel specifications
|
Operating temperature
|
0℃~+70℃
|
output frequency
|
0-200KHz
|
|
Storage temperature
|
-30℃~+70℃
|
Moment of inertia
|
4×1 0
-7
N·m·S
2
|
|
current consumption
|
≤100mA
|
Starting torque(25℃)
|
5×1 0
-2
N·m
|
|
Supply voltage
|
D c +5Vor 5V-24V
|
Radial direction Max. Allowable load
|
60N
|
|
Max.speed
|
6000r/min
|
Axial direction Max. Allowable load
|
40N
|
|
Shock resistance
|
980m/S
2
|
Allowable input angle acceleration
|
10000rad/S
2
|
|
Vibration resistance
|
50m/S
2
|
Protection rating
|
Ip54
|
External View
Output circuit
Connection
Changchun Donghe Optics & Electronics Co., Ltd was established in June 1992. It has been in the field of encoder for 25 years. It engaged in product development, manufacturing, sales and after-sales services, is the leading manufacturer of encoder in China. The company focuses on the development of new products and has a professional R & D team of 20 technicians, who will continue to develop high-tech encoders. Meanwhile, customized encoders are also available.
The company manufactures hundreds of encoders. The LF, LMA, LEC, PKT and PAW series are widely used on CNC, electric motor, lift, textile equipment and etc. The products have passed the certification of GB/T19001-2000 and ISO9001:2000.
Donghe has been the domestic supplier for over 20 years for many famous companies such as Shenyang Machine Tools, SIGMA elevator, Suzhou Fuji precision elevator and so on.
From the year of 2017, Changchun Donghe Optics & Electronics Co., Ltd has come to the global market. Hoping to establish a friendly and long term cooperation with friends from all over the world.
* Delivery time sample order: 3-5 working days after receipt of the full payment.
* Stock order: 3-7 working days after receipt of the full payment
* Oem order: 15-20 working days after receipt of the deposit.
* Transportation : Transported by dhl, ups, ems, fedex, air freight, sea freight according to customzie requests,Normally we checked and compare.
We produce encoder,optical encoder,magnetic encoder,motor encoder,encoder wheel,incremental encoder,rotary encoder,photoelectric encoder,absolute encoder,handwheel encoder,hollow shaft encoder,solid shaft encoder,optical encoder disk,encoder sensor,mini rotary encoder,servo motor encoder,absolute rotary encoder,quadrature encoder,dc motor encoder,elevator encoder, cnc spindle encoder , motorized rotary encoder and etc.
1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Warranty 12 months: Free replacement of defective products within 12 months.
4. OEM & ODM is provided.
5. Generally 5-10 working days if the goods are in stock, or 15-20 working days with large quantity or customization.
6. Support multiple payment terms(t/t, e-checking, l/c, western union, online trade assurance
7. Sample order
8. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and customized encoder are available for us.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
