Quick Details
-
Brand Name:
-
VIC
-
Voltage:
-
380v,220v
-
Dimension(L*W*H):
-
1950x1370x1700mm
-
Weight:
-
1200 KG
-
Control box:
-
Yes
-
English manual:
-
Yes
-
Filtering system:
-
Double filtering
-
Raw material:
-
oil seeds
-
Name:
-
Oil Press Machine
-
Function:
-
Oil Pressing
-
Product name:
-
Edible Oil
-
Advantage:
-
High Oil Yield
-
Material:
-
Partical Stainess Steel
-
warranty period:
-
12 months
Quick Details
-
Usage:
-
all kinds of seeds
-
Production Capacity:
-
200-300kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VIC
-
Voltage:
-
380v,220v
-
Dimension(L*W*H):
-
1950x1370x1700mm
-
Weight:
-
1200 KG
-
Control box:
-
Yes
-
English manual:
-
Yes
-
Filtering system:
-
Double filtering
-
Raw material:
-
oil seeds
-
Name:
-
Oil Press Machine
-
Function:
-
Oil Pressing
-
Product name:
-
Edible Oil
-
Advantage:
-
High Oil Yield
-
Material:
-
Partical Stainess Steel
-
warranty period:
-
12 months
Raw materials for the combined oil press machine with oil filter:
Such as copra, cottonseeds, soybean, rapeseeds, peanut, sunflower seeds, tea seeds, olive,etc.
Oil extraction rate of different oil content materials:
|
Raw material |
Oil content |
|
Camellia |
58-60% |
|
Peanut |
44-55% |
|
Castor seed |
50-70% |
|
Soybean |
18-21% |
|
Cottonseed |
33-40% |
|
Rapeseed |
33-40% |
|
Sesame |
45-50% |
|
Sunflower |
45% |
|
Safflower |
29-45% |
|
Rice bran |
18-20% |
|
Corn embryo |
30-40% |
|
Walnut |
40-65% |
|
Flaxseed/linseed |
29-44% |
|
Palm |
50-55% |
|
Coconut |
35-45% |
Application about the combined oil press machine with oil filter:
1.Advantage : nice shape, highly structured, easy installation, , fast warn-up and high oil output rate
2.New type :this kind of machine is our latest environment protection oil press.
3.Main feature: this kind of combined oil press machine mainly has 3 parts: electric control box to control the machine working, oil pressing part, and vacuum filtering part for clearing oil.
4 .Function : hot press and cold press are available.
5.Structure :6YL-T series integrated oil press machines are designed on the basis of the advantage of 6YL-series oil press
6.Suitable place :this kind of machine is situable for small-medium factory and supermarket.
Main data about the combined oil press machine with oil filter :
Model: 6YL-100T screw oil press
Capacity:3.5-4.5T/D
Power: 11kw+1.1kw
Residue oil in cake: less than 7%
Size: 1950x1370x1700mm
Weight: 1200kg
6YL-T system combined oil press with oil filter main data:
|
Model |
Capacity (kg/h) |
Power ( kw ) |
Size ( mm ) |
Weight ( KG ) |
|
6YL-80T |
100-150 |
5.5kw+0.75kw |
1600x1100x1500 |
600 |
|
6YL-100T |
200-250 |
7.5kw+0.75kw |
1970x1375x1700 |
1200 |
|
6YL-120T |
300-350 |
11kw+1.1kw |
2150x1500x1800 |
1750 |
|
6YL-160T |
400-500 |
18.5kw+1.5kw |
2350x1650x1930 |
2100 |
More picture and details about 6YL-100T combined screw oil press machine with oil filter:
Schematic diagram

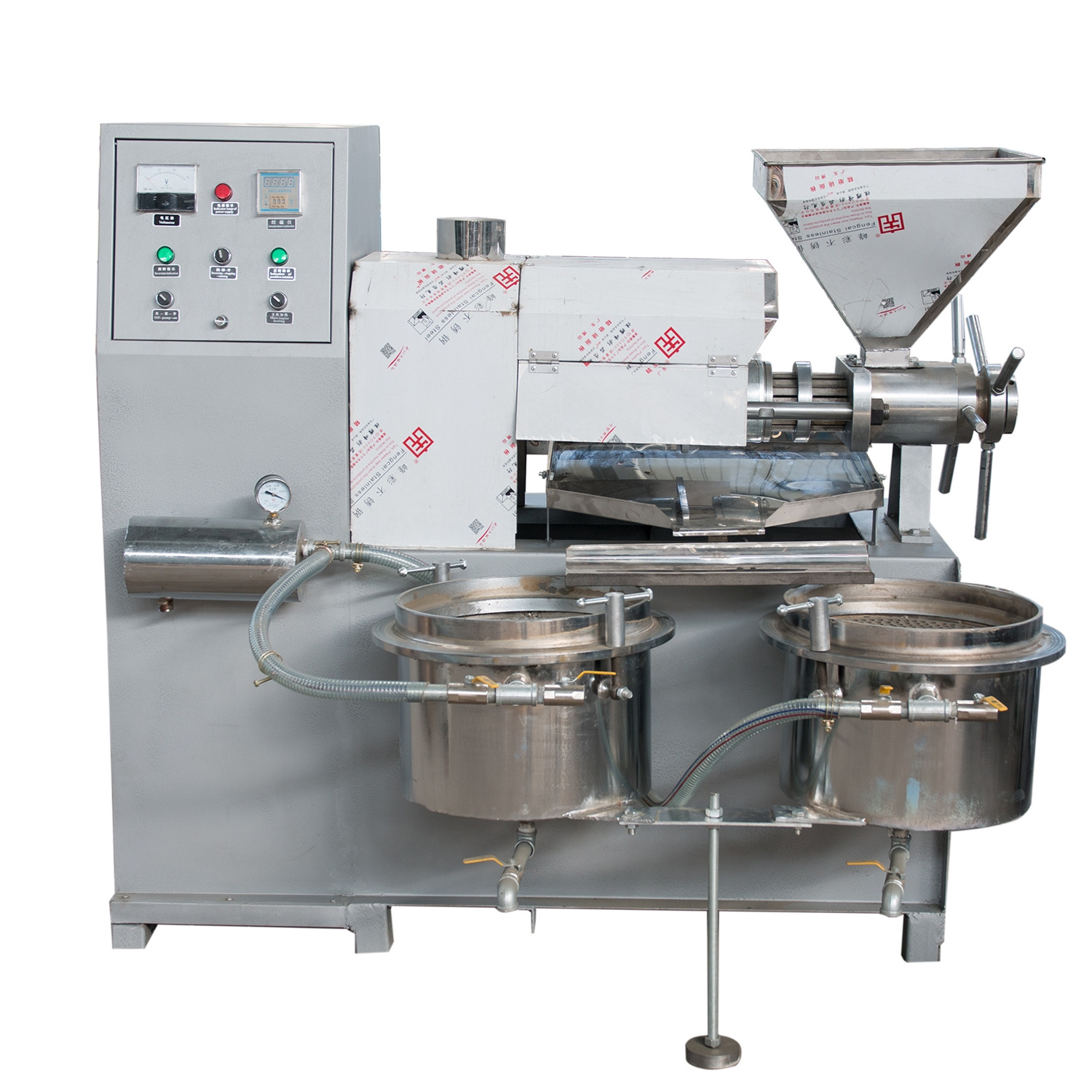

Main machine
Precisely assembled barrel ea sily to press oil
Extended stainless steel handle for easy pressure adjustment
Vacuum pump and the pressure gauge
Control systems is simple and easy to operate
Stainless steel oil pan and cover
Double oil filter tank
Main parts
Workshop corner
Packaging picture
Shipping:
Delivery time: In 15 days after paid deposit.
Packing: wooden case package.
Partial shipment:not allowed
Transshipment:allowed
| Other type oil press machine | |
| 6YL-100 Oil press machine | 6YL-100A Combined oil press |
|
Capacity: 4.5-5t/d Power: 7.5kw |
Capacity:200-250kg/h Power: 7.5kw+1.1kw |
For warranty parts and service:
**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
