Quick Details
-
Brand Name:
-
IDEALPLUSING, IDEALPLUSING
-
Model Number:
-
IPS-WD350;IPS-WD500;IPS-WD700,IPS-WD1000,
-
Output Frequency:
-
50/60Hz±1%
-
Size:
-
According to model
-
Weight:
-
According to model
-
Rated power:
-
350W/500W/700W/1000W
-
Application:
-
solar system, car, truck, rv, camper
-
Waveform:
-
Pure Sine Wave Inverter
-
Protection:
-
Overload,over voltage,shortcut
-
Certificate:
-
CE
Quick Details
-
Output Current:
-
220VAC, 0A~40A (Depending on the model)
-
Customized support:
-
support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IDEALPLUSING, IDEALPLUSING
-
Model Number:
-
IPS-WD350;IPS-WD500;IPS-WD700,IPS-WD1000,
-
Output Frequency:
-
50/60Hz±1%
-
Size:
-
According to model
-
Weight:
-
According to model
-
Rated power:
-
350W/500W/700W/1000W
-
Application:
-
solar system, car, truck, rv, camper
-
Waveform:
-
Pure Sine Wave Inverter
-
Protection:
-
Overload,over voltage,shortcut
-
Certificate:
-
CE

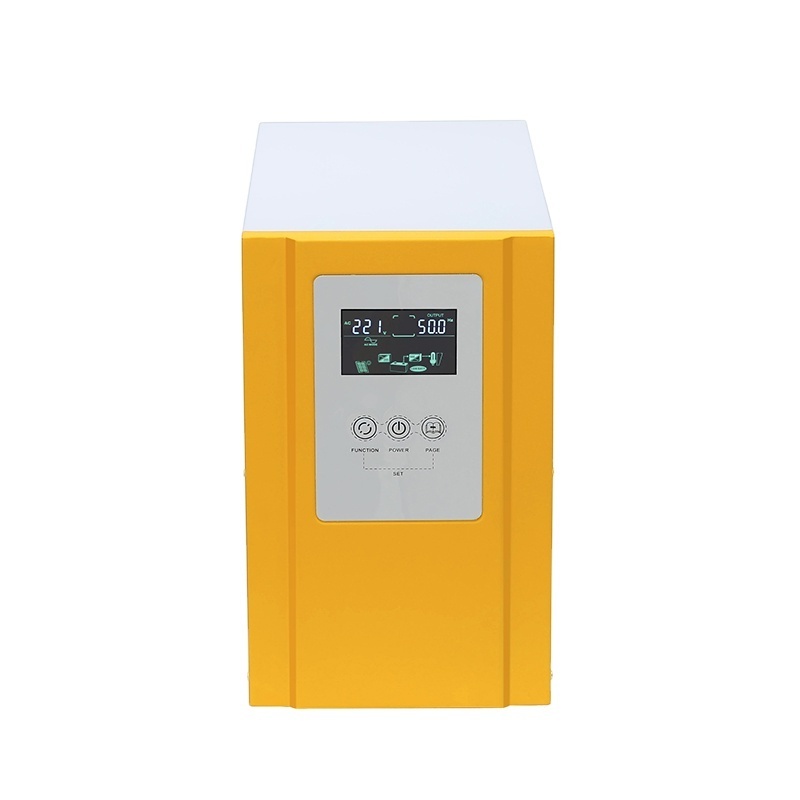

12VDC 500W off grid inverter 110V/220VAC Pure sine wave Inverter PWM,UPS With AC Battery Charging Function, Surge Power 1500VA1000W Pure Sine Wave Power Inverter 12V 24V DC to AC 110V 220V MPPT PWM Solar PV Controller Charging UPS Off grid hybrid Inverter
I . FEATURE
|
1 |
Pure sine wave output |
|
2 |
High-efficiency toroidal transformer lower loss |
|
3 |
Intelligent LCD integration display |
|
4 |
AC charge current 0-20A adjustable; battery capacity configuration more flexible |
|
5 |
Three types of working modes adjustable: AC first, DC first, energy-saving mode |
|
6 |
Frequency adaptive function, adapt to different grid environments |
|
7 |
Built-in PWM or MPPT controller optional |
|
8 |
Added fault code query function, facilitating the user to monitor the operation state in real-time |
|
9 |
Supports diesel or gasoline generator, adapt to any tough electricity situation |
|
10 |
RS485 communication port/APP optional |
II . PRODUCT PARAMETERS-MAIN INFORMATION
|
Brand |
IDEALPLUSING |
||
|
Model |
IPS-WD350212 |
IPS-WD500212 |
IPS-WD1000212 |
|
Rated Power |
350W |
500W |
1000W |
|
Peak Power (20ms) |
750VA |
1500VA |
3000VA |
|
Start Motor |
0.3HP |
0.5HP |
1HP |
|
Battery Voltage |
12VDC |
12VDC |
12VDC |
|
Size(L*W*H)(MM)(1 UNIT) |
L299*W135*H195(MM) |
L299*W135*H195(MM) |
L299*W135*H195(MM) |
|
Packing Size(L*W*H)(MM) (1 UNIT) |
L405*W230*H430(MM) |
L405*W230*H430(MM) |
L405*W230*H430(MM) |
|
N.W.(KG)(1 UNIT) |
5.5KG |
5.5KG |
10KG |
|
G.W.(KG)(1 UNIT) |
7KG |
7KG |
11KG |
|
Installation Method |
Tower |
Tower |
Tower |
Product details
Wiring diagram
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or invertor;
2. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the inverter, the grid will supply power to the loads directly after the voltage is stabilized and charge batteries via an inverter. When the grid is cut off, the battery will automatically continue to supply power via an inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter's rated power, there will be no output from the invertor. Only the chip of the inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads. The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, the battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
System Application Diagram
