Quick Details
-
Output Speed:
-
600rpm
-
Place of Origin:
-
Sichuan, China
-
Product name:
-
PLE40 ratio 5:1 small planetary gearbox
-
Ratio:
-
3:1 4:1 8:1 10:1 5:1
-
Application:
-
CNC Tools
-
Material:
-
Aluminum Alloy
-
Mount Position:
-
Flange Mounted
-
Standard:
-
Sumitomo
-
Output Form:
-
shaft
-
Efficiency:
-
95%
-
Process:
-
Machining
-
Serie:
-
PLE40
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
6 Nm
-
Input Speed:
-
3000rpm
-
Output Speed:
-
600rpm
-
Place of Origin:
-
Sichuan, China
-
Product name:
-
PLE40 ratio 5:1 small planetary gearbox
-
Ratio:
-
3:1 4:1 8:1 10:1 5:1
-
Application:
-
CNC Tools
-
Material:
-
Aluminum Alloy
-
Mount Position:
-
Flange Mounted
-
Standard:
-
Sumitomo
-
Output Form:
-
shaft
-
Efficiency:
-
95%
-
Process:
-
Machining
-
Serie:
-
PLE40

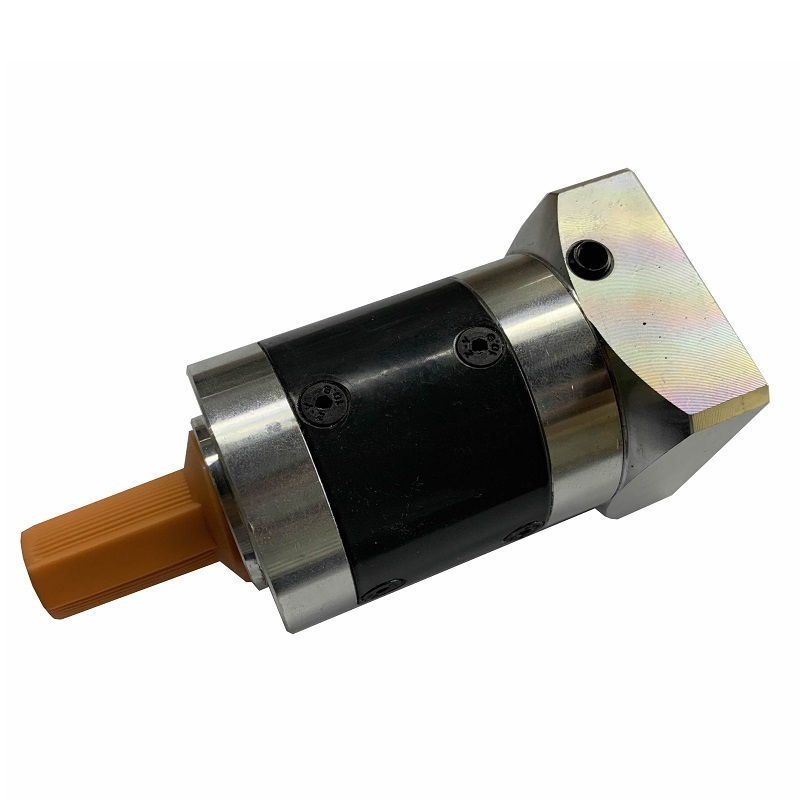

PL40 PLE40 ratio 5:1 one stage 40mm small planetary gearbox
|
Series |
PLE, PLF, PLS, PLX, WPLE, WPLF |
||
|
Gearbox outline size (mm) |
40, 60, 80, 90, 142, 160, 190, 242 |
||
|
Stage |
Single stage |
Two stage |
Three stage |
|
Ratio |
3:1, 4:1, 5:1, 7:1, 10:1 |
12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 |
64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
|
Rated input speed (rpm) |
3500 |
3500 |
3500 |
|
Max input speed (rpm) |
6000 |
6000 |
6000 |
|
Efficiency (%) |
96 |
94 |
90 |
|
Lowest backlash (arcmin) |
3 |
6 |
8 |
|
Noise (dB) |
≤62 |
≤62 |
≤62 |
|
Life (h) |
30000 |
||
|
Lubrication |
Lifetime lubrication |
||
|
Level of protection |
IP65 |
||
As one of the most professional planetary gearbox manufacture in China, Hongjun Science and Technology Co. Ltd. has been specializing in this field for over 10 year. Our factory, which has very proven technique of producing planetary gear box, has pretty strong research and development ability. Since our decades of hardworking, nowadays we have developed long term business relationship with many customers from all over the world. In Europe, our reducers are widely used to replace famous brand precision planetary gearbox, such as NEUGART, to build new cnc machines, machinery arms and robots, because of our good quality and price.
PL40 PLE40 ratio 5:1 one stage 40mm small planetary gearbox
Generally, our small planetary gearbox are packaged with carton, big one will be packaged with wooden case. All reducers will be protected with soft material inside the box. We can also accept customized packaging method.
Samples planetary reducer will be shipped in 5 days. Bulk order lead time is up to the quantity.
About the shipping method, we support DHL, TNT, FedEx, EMS, UPS door to door, and also by sea, by air.
1. On receiving Inquiries or any other messages from customers, we promise to reply in several hours. We're on line for customers for a very long time every day;
2. We supply our customers not only standard planetary gearbox, but also customized reducers;
3. After receiving payment, we'll arrange production at once. When production has been finished, goods will be shipped with well and proper packaging soon.
4. We promise to give all our customers perfect after-sales services.
