- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
yuxing
-
Overall Dimensions:
-
5400*1400*2000
-
Power:
-
3000w
-
Worktable Size:
-
3.3m
-
Embroidery Area:
-
all
-
Weight (KG):
-
4000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
belongs to:
-
industrial 33 heads multi needle embroidery quilting machines for sale
Quick Details
-
Maximum Speed:
-
1000 RPM
-
Operation:
-
Computerized
-
Head Interval:
-
50.8
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
yuxing
-
Overall Dimensions:
-
5400*1400*2000
-
Power:
-
3000w
-
Worktable Size:
-
3.3m
-
Embroidery Area:
-
all
-
Weight (KG):
-
4000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
belongs to:
-
industrial 33 heads multi needle embroidery quilting machines for sale
|

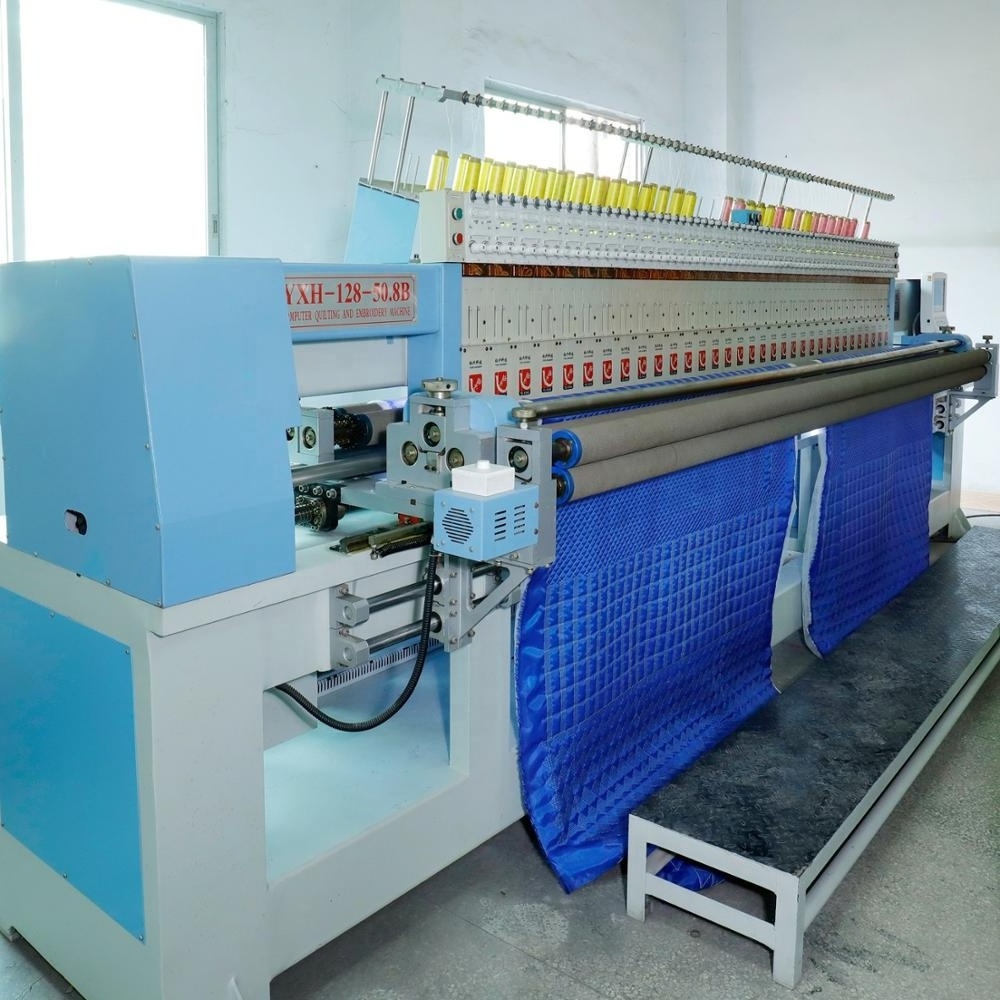

Product Name |
Computerized Multi Needle Quilting Embroidery Machine |
|
Model |
YXH-128 -50.8B |
|
Size(L*W*H) |
5400 * 1400 * 2000mm |
|
Weight |
3000 kg |
|
Q uilting width |
3352mm |
|
Needle space |
50.8 |
|
X-axis movement |
260 |
|
Head quantity |
33 pieces |
|
Rotating shuttle |
B ig rotating shuttle |
|
Quilting thickness |
20-600g |
|
Stitch |
B inary system:0.15-12.7mm |
|
Needle storage capacity |
120,000 |
|
Pattern storage capacity |
960 |
|
Needle type |
#14,#16 |
|
Principal drive |
S ervo motor drive |
|
Rated voltage(AC) |
As required |
|
Power |
5 KW |
Special feature:
1.Unique quilting and embroidery drawing and plate making function, and immediately drawing and proofing efficient function.Compatible with the general embroidery machine function and embroidery machine plate reading function in the same industry.
2.Precision finishing,and no need to modify the pattern,the difference between the finished patterns with the computer-ready patterns is tiny.
3.Advance computer control and mechanical manufacturing technology,to ensure that the noise of the machine is very small.
4.The head of quilting and embroidery machine has a simple structure,reliable performance and easy maintenance features.
5.Taking the big rotating shuttle,the max high speed can reach 1000r/min.
6.Saddling rack,roller and principal motors are driven by servo equipment.
7.360° quilting and embroidery,limitless multi-span and independent
quilting and embroidery.
8.Stitch can be adjusted and pattern compensation function,an effective solution for graphical variant when quilting and embroidery thick material.
9. Auto-stop system when thread is broken,auto and manual fill-stitch function.
10.Automatic lubrication system.
11.Machine head can be chosen randomly for quilting and embroidery.
12.Ringing notice when start machine.
Important machine parts:
Our company is specialized in manufacturing computerized multi-needle quilting machine,
computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin w inding machine,more than 10 kinds of products.
