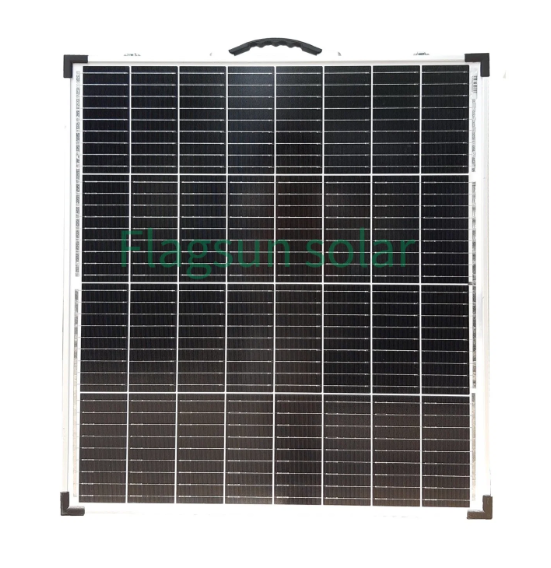

- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
10 Years
-
Brand Name:
-
Flagsun
-
Model Number:
-
FSF-140W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
600*670*65mm
Quick Details
-
Cell size:
-
158.75mm*158.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
15.59%
-
Warranty:
-
10 Years
-
Brand Name:
-
Flagsun
-
Model Number:
-
FSF-140W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
600*670*65mm
Product Description
|
Electrical Characteristics
|
|
|
Module No.
|
FSF-140W
|
|
Maximum Power at STC (Pmax)
|
140Wp
|
|
Optimum Operating Voltage (Vmp)
|
19.5V
|
|
Optimum Operating Current (Imp)
|
7.17A
|
|
Open-Circuit Voltage (Voc)
|
23.1V
|
|
Short-Circuit Current (Isc)
|
7.92A
|
|
Module Efficiency
|
15.59%
|
|
Power Tolerance
|
0~+3%
|
|
Operating Module Temperature
|
-40 ℃ to +85 ℃
|
|
Maximum System Voltage
|
1000V
|
|
Maximum Series Fuse Rating
|
15A
|
|
Mechanical Characteristics
|
|
|
Solar Cells
|
Mono
|
|
Fold size
|
600*670*65mm
|
|
Unfold size
|
600*1340*30mm
|
|
Weight
|
23kg
|
|
Front Glass
|
3.2mm Tempered Glass
|
|
Junction Box
|
IP68
|
|
Cable
|
4mm², 90cm
|
|
Connector
|
MC4
|
|
Temperature Characteristics
|
|
|
Nominal Operating Cell Temperature (NOCT)
|
45℃ ± 2 ℃
|
|
Temperature Coefficient of Pmax
|
- 0.45 %/ºC
|
|
Temperature Coefficient of Voc
|
- 0.35 %/ºC
|
|
Temperature Coefficient of Isc
|
0.065±0.015 %/ºC
|
