Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DH
-
Model Number:
-
DH-20240312J
-
Usage:
-
sand blasting/waterjet cutting
-
magnetism:
-
weakly magnetic
-
Size:
-
12 24 30 46 60 80 100 120mesh
-
Sample:
-
Provided
-
type:
-
irregular
-
melting point:
-
1340℃
-
SiO2:
-
36-40%
-
AL2O3:
-
20-24%
-
Fe2O3::
-
4-6%
-
TiO2:
-
0-0.5%
-
MgO:
-
8-13%
Quick Details
-
Type:
-
blasting media
-
Abrasive Grain Sizes:
-
12/24/30/46/60/80/100/120mesh
-
Warranty:
-
1
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DH
-
Model Number:
-
DH-20240312J
-
Usage:
-
sand blasting/waterjet cutting
-
magnetism:
-
weakly magnetic
-
Size:
-
12 24 30 46 60 80 100 120mesh
-
Sample:
-
Provided
-
type:
-
irregular
-
melting point:
-
1340℃
-
SiO2:
-
36-40%
-
AL2O3:
-
20-24%
-
Fe2O3::
-
4-6%
-
TiO2:
-
0-0.5%
-
MgO:
-
8-13%

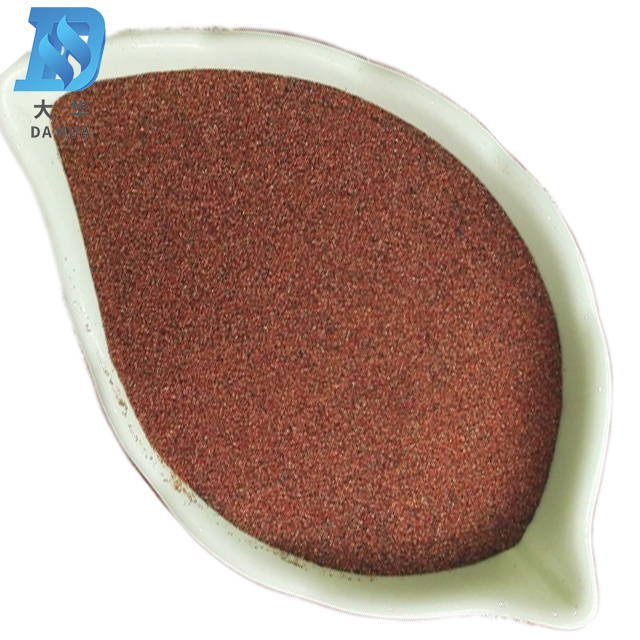

Garnet sand, made of garnet as raw material, has the characteristics of high hardness, high temperature resistance, stable chemical properties, uniform particles, high grinding efficiency, no scratch and so on. Suitable for water knife cutting industry;All kinds of metal, plastic, wood and other surface sandblasting industry; Mechanical industry of ultra-fine grinding,precision casting and on the picture tube glass, optical glass, silicon wafer grinding industry.
character：
(1) The texture is hard, the Mohs hardness is above 7.1, which is higher than the commonly used sand blasting materials such as quartz sand, sea sand and river sand, and the service life is long.
(2) Because the garnet is a crystal of the equiaxed crystal system and has no cleavage itself, it is easy to form approximately cubic particles with edges and corners after sandblasting, and the effect of sandblasting is better. It can not only completely remove the rust, oxide, coating and its pollutants on the metal surface, but also because of the high hardness, it can produce an ideal angular rough surface on the metal surface after being cleaned, increase the surface area of the metal, improve the interface bonding force, so that the binding force of the corrosion resistant protective coating and the metal surface is significantly enhanced, thereby improving the bonding performance of the coating and the metal surface.
(3) The density is larger, usually around 4g/cm³, the impact force is strong, and the metal surface can be better cleaned.
(4) The strength is large, the metal surface is not easy to break when sprayed, and even after fragmentation it will produce a new approximate cube particle with edges, so it can be used repeatedly, generally up to more than 20 times. It is 20 times the number of uses of siliceous sand (sea sand or river sand) and more than 2 times that of quartz sand (artificially made), and the relative cost of its use is low.
(2) Because the garnet is a crystal of the equiaxed crystal system and has no cleavage itself, it is easy to form approximately cubic particles with edges and corners after sandblasting, and the effect of sandblasting is better. It can not only completely remove the rust, oxide, coating and its pollutants on the metal surface, but also because of the high hardness, it can produce an ideal angular rough surface on the metal surface after being cleaned, increase the surface area of the metal, improve the interface bonding force, so that the binding force of the corrosion resistant protective coating and the metal surface is significantly enhanced, thereby improving the bonding performance of the coating and the metal surface.
(3) The density is larger, usually around 4g/cm³, the impact force is strong, and the metal surface can be better cleaned.
(4) The strength is large, the metal surface is not easy to break when sprayed, and even after fragmentation it will produce a new approximate cube particle with edges, so it can be used repeatedly, generally up to more than 20 times. It is 20 times the number of uses of siliceous sand (sea sand or river sand) and more than 2 times that of quartz sand (artificially made), and the relative cost of its use is low.
Specification
|
Product
|
Garnet sand
|
|
Conductivity
|
Less than 25 microsiemens per meter
|
|
Average Bulk
|
2.4 g/cm3
|
|
Specific Gravity
|
4.1g/cm3
|
|
Toxicity
|
None
|
|
Chloride Content
|
Less than 25 ppm
|
|
Soluble Salts
|
Less than 100 ppm
|
|
Chemical Element
|
Content
|
|
SiO2
|
36-40%
|
|
Al2O3
|
20-24%
|
|
MgO
|
8-13%
|
|
FeO + Fe2O3
|
28-42%
|
|
CaO
|
6-9%
|
|
MnO
|
0.5-2%
|
|
TiO2
|
0.5-2%
|
(1) sandblasting of steel structures, hulls, Bridges, etc.;
(2) Water knife cutting of metal, stone, glass, etc.;
(3) filtration media for chemical, petroleum, pharmaceutical and water treatment;
(4) Grinding of marble, optical lenses, glassware, leather and other materials;
(5) Grinding wheel, whetstone, emery cloth, sandpaper raw materials;
(6) highway pavement, airstrip, wear-resistant rubber, anti-slip paint and other wear-resistant materials;
(7) Widely used in the construction industry, high-grade real stone paint exterior wall decoration interior decoration temperament
noble and elegant. Ideal new non-metallic wear-resistant floor aggregate.
(2) Water knife cutting of metal, stone, glass, etc.;
(3) filtration media for chemical, petroleum, pharmaceutical and water treatment;
(4) Grinding of marble, optical lenses, glassware, leather and other materials;
(5) Grinding wheel, whetstone, emery cloth, sandpaper raw materials;
(6) highway pavement, airstrip, wear-resistant rubber, anti-slip paint and other wear-resistant materials;
(7) Widely used in the construction industry, high-grade real stone paint exterior wall decoration interior decoration temperament
noble and elegant. Ideal new non-metallic wear-resistant floor aggregate.
Henan Dahua New Materials Co., LTD., specializing in the production of white corundum sand, particle size sand, white corundum powder, brown corundum, silicon carbide, silicon carbide powder, high aluminum ceramic ball, plate corundum, fused spinel,sintered spinel, fused mullite, reduced iron powder, chromium iron ore and other high-grade abrasives and refractory materials of modern enterprises, now has a fully automatic intelligent control dumping furnace, With an annual output of thousands of tons of high-quality corundum and refractory materials, located in Xingyang City, Henan Province, the company adheres to the development strategy of "science and technology Xing factory", advanced production equipment, strong technical force, complete testing equipment, stable product quality, and the ability to independently develop and produce new products in the industry. The company's quality assurance system is perfect, strict implementation of ISO9001 standards, product performance is stable, safe and reliable. The company vigorously introduce advanced professional production equipment and automatic production line, manufacturing by the majority of customers benefit products, we with stable quality, first-class service, reasonable prices, welcome domestic and foreign merchants to the factory to negotiate benefit products.
1.25 kg/bag then 40 bag one ton bag/pallet, one ton one bag;
2. According to customer requirements.
1. Can I get free samples?
Yes, free samples 1-2 kg.
Please advise your contact details.
( Like your company name, address,phone No. etc.) We will arrange sample immediately, you will get it within 5 days.
2. What's your delivery time?
Production time: 15-25 days after deposit payment received.
3. How about the product quality?
The company strictly controls the quality of products, strict inspection of products before shipment.
4. Can you visit the field
Of course. Anytime.
5. What are the advantages of the customer?
Advanced equipment, good quality, low price.
Platform price is the reference price, the actual transaction price contact customer service consultation.
Yes, free samples 1-2 kg.
Please advise your contact details.
( Like your company name, address,phone No. etc.) We will arrange sample immediately, you will get it within 5 days.
2. What's your delivery time?
Production time: 15-25 days after deposit payment received.
3. How about the product quality?
The company strictly controls the quality of products, strict inspection of products before shipment.
4. Can you visit the field
Of course. Anytime.
5. What are the advantages of the customer?
Advanced equipment, good quality, low price.
Platform price is the reference price, the actual transaction price contact customer service consultation.
