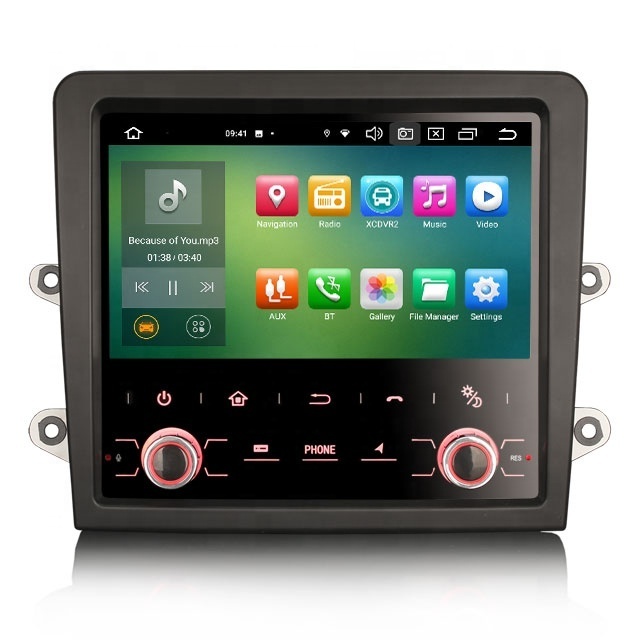

ES8559C 7" IPS Android 11.0 Car Radio Multimedia DVD Player GPS CarPlay Auto Navi Stereo for Porsche 911 Cayman Boxster Cayman

Key Features:

- Android 11.0 OS, Octa Core, 2*A75+6*A55 64-bit 1820MHz CPU Architecture, benchmark scores does go above 200000
- 4GB RAM and 64GB ROM, 3 USB up to 3*128GB extended Storage.
- Built-in TDA7851L Power Amplifier with DSP Amplifier System, which bring the perfect music sound in your car. For car modification enthusiasts, this unit also provides a special optical fiber connector, which can be connected to your modified (not original) optical amplifier and achieve lossless sound quality through optical fiber transmission.
- Built-in Wireless Apple CarPlay and Wired/Wireless Android Auto module, you don't need to use another adapter, just connect your iPhone to this unit via BT & WiFi to use the CarPlay function, or connect your Android Smartphone to this unit via BT & WiFi or USB data cable to use the Android Auto function.
- Built-in BT module, which supports hands-free function with A2DP Audio Streaming.
- Built-in GPS Module, which supports offline GPS Navigation, GPS function ready to use.
- Built-in Dual Band WiFi Module for Internet, support 2.4GHz and 5GHz WiFi networking, go online faster.
- Built-in 4G Module for Internet, support 99% of carriers in the word, support micro SIM card.
- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB.
- Built-in USB, Radio, RDS, WiFi, Clock, Calendar, Calculator, Chrome, Adobe Reader.
- Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN, Video Out etc. extended functions.
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving, Canbus decoder included.
- Support panel light colors adjustment, many RGB-colors can be chosen
- Support Split Screen, you can run two apps side by side.

Compatible Models & Years:

Porsche Cayman/Boxster/718/911/981/997 2012-2017

Important Note:
This unit has front panel size 190mm(Top width)*167mm(High)*178mm(Bottom width) . To make sure the item fits your car, please check the shape and dimensions of your original car Media Player which is the same as the description in our listing before bidding.

General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch
- Front panel Size: 190mm(Top width)*167mm(High)*178mm(Bottom width)
- Package Size: 300mm*270mm*200mm
- Shipping Weight: 3.5kg

System
- Operation System: Google Android 11.0
- CPU: 1820MHz 64-bit Cortex 2* A75 + 6* A55
- RAM: 4GB
- Internal Memory: 64GB
- Extended Card/USB: Support USB Stick up to 128GB

Display
- Screen Type: Multi-touch screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 2 live wallpapers, 25 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes

Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot, support 2.4GHz and 5.0GHz Dual Band WiFi networking.
- 3G/4G Internet: Built-in 4G Module, support 99% of carriers in the word, support micro SIM card.
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: TDA7851, Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)

GPS
- Operation System: Android 11.0
- Support Maps: IGO, Sygic, Waze maps for Android 11.0
- Support offline navigation: Yes, ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps

BT
- Hands Free: Yes
- A2DP (BT Stereo Music): Yes, can play stereo music through BT
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back

Radio
- Main Chips: TDA7708
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

USB
- Position: 3 USB Port On the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

Android Auto
- Built-in Android Auto: Yes
- Connection: BT & WiFi wireless or USB data cable wired connecting
- Support Device: Android Smartphone with Android 8.0 and above
- Control the connected Android Phone on head unit: Yes

CarPlay
- Built-in CarPlay: Yes
- Connection: BT & WiFi wireless connecting
- Support Device: iPhone iOS 7.1 and above
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control

Car DVR
- Built-in DVR App: Yes, just connect a USB DVR Camera to use this function
- Connection Port: USB
- Storing Position: TF Card in Camera
- Touch Control DVR-Camera on unit: Yes
- DVR-Camera incl.: No, you can contact us to buy it together

TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together

DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
- DAB+ Box incl.: No, you can contact us to buy it together

DTV-IN
- Built-in DTV Player App: Yes
- Connection Port: Special
- Power Supply to connected DTV Box directly: Yes, you can connect our DTV Box to achieve this function
- Touch unit's screen to control the connected DTV Box: Yes, you can connect our DTV Box to achieve this function
- DVB-T2 Box incl.: No, you can contact us to buy it together

Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a BT OBD2 Scanner Tool to use this function
- Support steering wheel control
- Support change panel light colors, many RGB-colors can choose
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB
- Built-in TDA7851L Power Amplifier with DSP Amplifier System, which bring the perfect music sound in your car.
- For car modification enthusiasts, this unit also provides a special optical fiber connector, which can be connected to your modified (not original) optical amplifier and achieve lossless sound quality through optical fiber transmission.

Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- CarPlay In: One
- TPMS Box In: One
- DAB+ Box In: One
- Car DVR In: One

Output
- Video Out: Yes, need buy the USB-RCA-Converter from us to share screen display with your passenger
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*48w
- Subwoofer Out: One
- Fiber-Optic Audio Out: One

Accessories
- 1*User's Manual in English
- 1*RCA AV Cable
- 1*Control Cables and Camera-IN
- 1*Rear USB Adapter Cables
- 1*External Microphone
- 1*GPS Antenna
