Quick Details
-
Voltage:
-
Customers Local Voltage, Customers Local Voltage
-
Power:
-
Multi Power
-
Dimension(L*W*H):
-
Customized Size
-
Warranty:
-
1 Year
-
Equipment Name:
-
ABS Plastic Vacuum Chrome Plating Machine
-
Size of vacuum plating chamber:
-
Custom Made
-
Application:
-
Decorative Coating
-
Coating color:
-
Chrome mirror finishes
-
Coating film:
-
Aluminum or chrome
-
Technology:
-
Thermal Evaporation Coating or magnetron sputtering
-
Type of vacuum chamber:
-
Horizontal or vertical
-
Material of vacuum chamber:
-
Carbon steel or SUS304
-
Control:
-
PLC automatic control
-
Certification:
-
CE
-
Weight:
-
3-10 TONS
Quick Details
-
Machine Type:
-
PVD Coating Machine - Vacuum Metallization
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Hongfeng VAC
-
Voltage:
-
Customers Local Voltage, Customers Local Voltage
-
Power:
-
Multi Power
-
Dimension(L*W*H):
-
Customized Size
-
Warranty:
-
1 Year
-
Equipment Name:
-
ABS Plastic Vacuum Chrome Plating Machine
-
Size of vacuum plating chamber:
-
Custom Made
-
Application:
-
Decorative Coating
-
Coating color:
-
Chrome mirror finishes
-
Coating film:
-
Aluminum or chrome
-
Technology:
-
Thermal Evaporation Coating or magnetron sputtering
-
Type of vacuum chamber:
-
Horizontal or vertical
-
Material of vacuum chamber:
-
Carbon steel or SUS304
-
Control:
-
PLC automatic control
-
Certification:
-
CE
-
Weight:
-
3-10 TONS

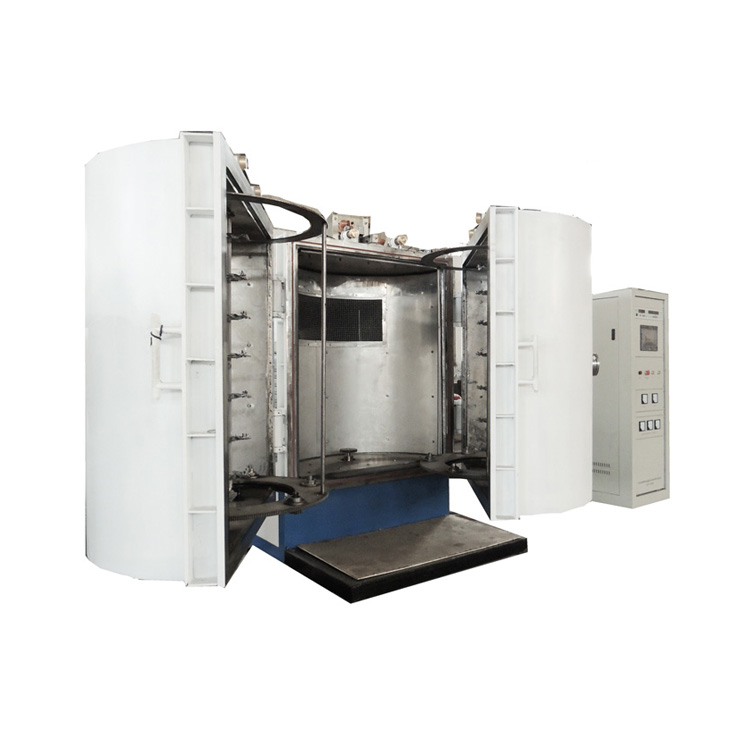

ABS Plastic Vacuum Chrome Plating Machine
Hongfeng VAC uses base and top coats that are automotive quality coatings. The second surface vacuum metalizing process involves depositing the evaporated metal on a clear substrate (glass or clear plastic) and back coating the metal with an opaque paint. This process has been used to decorate automotive emblems for exterior applications.
Vacuum Metalizing can be applied to: Plastics, Metals, Glass, Urethanes, Fiberglass, Ceramic, SLA’s, Paper products and many other materials .Products such as: Headlamp and Tail Lamp Reflectors, Automotive and Motorcycle trim, Hardware, Lamp Reflectors, Advertising Display Items, Emblems, Trophies, Packaging films, Toys, Fishing Lures and novelty items are some of the many products that are Vacuum Metalized.
Base coating
: For most decorative and reflective applications it is necessary to apply a specially formulated primer or basecoat to promote adhesion and to provide a smooth surface, assuring a high quality surface for the metalizing or finish paint steps.
Then vacuum metalizing itself
Top coating:
only when it requires, topcoat is applied to enhance, moisture, abrasion, and chemical resistance.
Technical specifications
| Mode | EV-1000 | EV-1200 | EV-1600 | EV-1800 |
| Dimension | D1000*H1100mm | D1200*H1400mm | D1600*H2000m | D1800*H2000m |
| Main Applications | Plastic or glass metallizing, decorative coatings | |||
| Coating System | Evaporation Coating System with high power transformer | |||
| Vacuum chamber structure | Vertical chamber front opening door, one or two doors, as well as two chambers optional | |||
| Pumping system |
Diffusion pump(Molecular pump) +Roots pump +Mechanical pump
(5.0*10-4Pa) |
|||
| Workpiece Carousel | Public rotation Frequency control: 0-20RPM | |||
| Vacuum degree measuring | Digital display composite vacuum gauge: from atmosphere to 8.0*10-4Pa | |||
| Control mode | Manual/Automatic work mode by PLC touched screen | |||
| Remark |
All the specifications can be customized according to your requests. |
|||
Vacuum metallizing coating is an economic method to apply the high quality reflective metallic finishing on plastic substrates. This machine is very fast cycle. You may apply this thermal evaporation coating for different industries.
Some of the products only need the silver/chroming effect. But some of them need to be colorful. Then the customers will need other machines to apply the colors.
