1. Installation: the user according to our factory provided
factory foundation plan, design drawing & installation suggestion maps,
brochures and other materials to ask
local professional company
to install.
2. Commissioning: Once the user finished installation at local, and requiring our engineers go to overseas to do commissioning kindly notify us before
20 days
.
3. Training: In the commissioning process our engineers will do an on-site training, to make the user's engineers to real operate operation and routine maintenance on-site training to ensure operators can be more familiar with relevant knowledge and skills.
4. Acceptance: Once completed the equipment commissioning & training. Our after-sales service engineers and users or buyers together sign acceptance report to confirm the equipment commissioning work has been completed.
5.Quality Warranty Shelf life: We promise 18-month warranty from the date of release from vendor's factory premises but not more than 12-month warranty since successful commissioning and start-up at client's project site, subject to whichever is due first. In case of any failure caused of the compressor itself due to its design, manufacture, assembly quality problem and etc.. We will provide free maintenance service in a timely manner.
6.Technical support: Each compressor package with a related
gas compressor 's operation manual & maintenance manual, detail design drawing, electric control system drawing, Manufacture test report etc
. Please the user serious reading the detail before operate it. If there have any doubt for trial operation, parameter setting, failure alarm reset, etc, also welcome to email to us at www.chnequipment.com or whatsapp: +008613908096496 about your questions. We will do the best to answer you within 24 hours, and within 48 hours to provide the related solution with free technical support.
- Product Details
- {{item.text}}

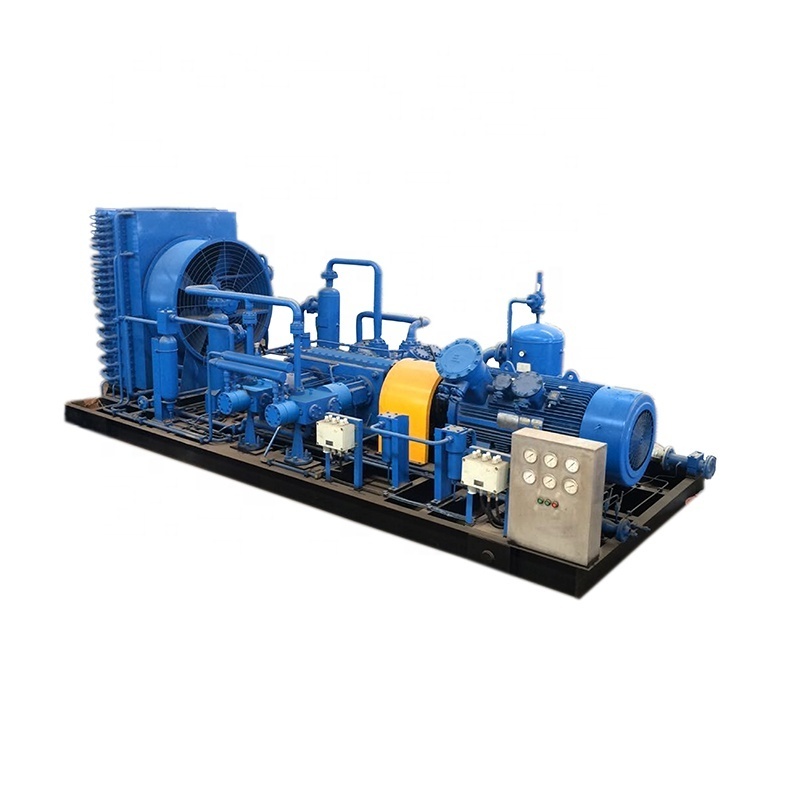

Quick Details
-
Model Number:
-
MW-22/40
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
4140*2100*2540mm
-
Weight:
-
12500KG
-
Working Pressure:
-
40 bar
-
Air capacity:
-
22Nm3/min
-
Marketing Type:
-
New Product
-
Gas Type:
-
NF3 Nitrogen Trifluoride
-
Feature:
-
Customizable
-
Inlet Pressure:
-
Micro Positive Inlet Pressure
-
Discharge Pressure:
-
4MPa
-
Frequency:
-
50Hz/60Hz
-
After Sales Service:
-
Online Service
Quick Details
-
Applicable Industries:
-
Electronics Industry
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SNTC
-
Model Number:
-
MW-22/40
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
4140*2100*2540mm
-
Weight:
-
12500KG
-
Working Pressure:
-
40 bar
-
Air capacity:
-
22Nm3/min
-
Marketing Type:
-
New Product
-
Gas Type:
-
NF3 Nitrogen Trifluoride
-
Feature:
-
Customizable
-
Inlet Pressure:
-
Micro Positive Inlet Pressure
-
Discharge Pressure:
-
4MPa
-
Frequency:
-
50Hz/60Hz
-
After Sales Service:
-
Online Service
Product Paramenters
|
Model
|
MW-22/40
|
|
Type
|
M type
|
|
Medium
|
NF3 Nitrogen Trifluoride
|
|
Feature
|
Customizable
|
|
Flow
|
22Nm3/min
|
|
Inlet Pressure
|
Micro Positive Inlet Pressure
|
|
Discharge Pressure
|
4MPa
|
|
Dimensions
|
4140*2100*2540mm
|
|
Power
|
220KW
|
|
Frequency
|
50Hz/60Hz
|
|
Voltage
|
220V /380V /440V
|
|
Cooling method
|
Air Cooling/Water Cooling
|
|
After Sales Service
|
Online Service
|
|
Driving Mode
|
Electric Motor
|
Note:
1, In addition on the above-mentioned products we can also provide products used for compression of various gas and other specifications and models upon users' special requirement.
2, Clients' inquiries should contain related parameters
1. The gas compression medium
2. The flow rate: _____Nm3/hr(min)
3. Inlet pressure : _____ Bar
4. Discharge pressure : _____ Bar
5. Inlet temperature
6. Cooling water temperature as well as other technical requirement.
2, Clients' inquiries should contain related parameters
1. The gas compression medium
2. The flow rate: _____Nm3/hr(min)
3. Inlet pressure : _____ Bar
4. Discharge pressure : _____ Bar
5. Inlet temperature
6. Cooling water temperature as well as other technical requirement.
