Quick Details
-
Voltage:
-
380V/50HZ/Triple phase
-
Dimension(L*W*H):
-
880*440*770mm
-
Weight:
-
160 KG
-
Raw material:
-
Peanut, Sunflower, Sesame, Olive, Rapeseed, Soybean etc.
-
Name:
-
Screw Oil Press Machine
-
Product name:
-
Screw Press Oil Expeller
-
Function:
-
Oil Pressing Peanut, Sunflower, Sesame, Olive, Rapeseed, Soybean etc.
-
Application:
-
Oil Production Line
-
Advantage:
-
Energy Saving, High Oil Yield etc.
-
Material:
-
Carbon steel or stainless steel
-
Output:
-
40-50kg/h
-
Keyword:
-
Screw Type Oil Expeller
-
Section:
-
Pretreatment, press, meal extraction & oil refinery machine section
Quick Details
-
Production Capacity:
-
oil yield≥98%, cake≤5% , meal residual≤1%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HDC
-
Voltage:
-
380V/50HZ/Triple phase
-
Dimension(L*W*H):
-
880*440*770mm
-
Weight:
-
160 KG
-
Raw material:
-
Peanut, Sunflower, Sesame, Olive, Rapeseed, Soybean etc.
-
Name:
-
Screw Oil Press Machine
-
Product name:
-
Screw Press Oil Expeller
-
Function:
-
Oil Pressing Peanut, Sunflower, Sesame, Olive, Rapeseed, Soybean etc.
-
Application:
-
Oil Production Line
-
Advantage:
-
Energy Saving, High Oil Yield etc.
-
Material:
-
Carbon steel or stainless steel
-
Output:
-
40-50kg/h
-
Keyword:
-
Screw Type Oil Expeller
-
Section:
-
Pretreatment, press, meal extraction & oil refinery machine section
Product Description
Production Introduction:

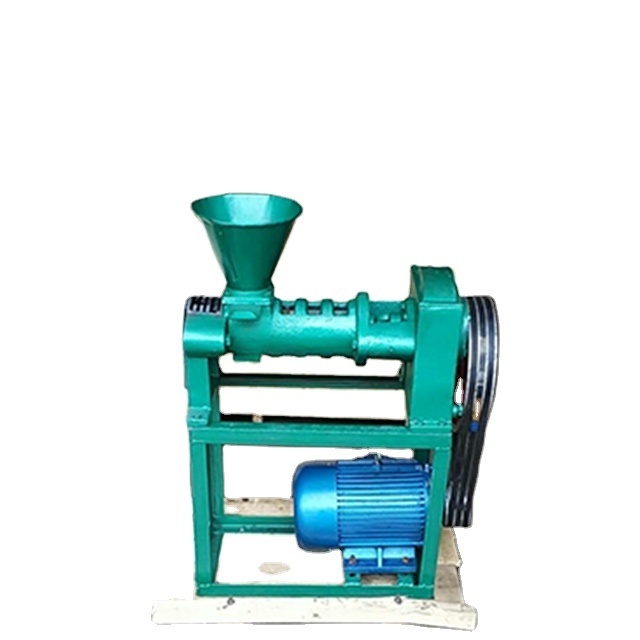

Model HDC-6YL series screw oil press machine boasts strong pressing structure and automatic heating system for highest oil output. Different from traditional small oil screw press, HDC- 6YL adds an automatic heater to increase the oil output rate by hot extrusion. This automatic oil press machine is ideal for vegetable oil making, from small oil pressing workshops to large-scale oil extrusion factory.
Model HDC-6YL series screw oil press machine boasts strong pressing structure and automatic heating system for highest oil output. Different from traditional small oil screw press, HDC- 6YL adds an automatic heater to increase the oil output rate by hot extrusion. This automatic oil press machine is ideal for vegetable oil making, from small oil pressing workshops to large-scale oil extrusion factory.
Details Images
Working Principle:
When the oil press is running, the processed material embryo enters the squeezing chamber from the hopper. The helix of the squeezed screw is pushed in and squeezed. The material embryo is carried out in the pressing chamber of the oil press. Under the condition of high pressure, there is a great friction resistance between the material embryo and the squeezing and squeezing chamber. The heat caused by the heat caused the thermal denaturation of the protein in the embryo, destroyed the colloid,
increased the plasticity, and also reduced the viscosity of the oil and thus precipitated oil easily. The oil production rate of the oil press is improved.
When the oil press is running, the processed material embryo enters the squeezing chamber from the hopper. The helix of the squeezed screw is pushed in and squeezed. The material embryo is carried out in the pressing chamber of the oil press. Under the condition of high pressure, there is a great friction resistance between the material embryo and the squeezing and squeezing chamber. The heat caused by the heat caused the thermal denaturation of the protein in the embryo, destroyed the colloid,
increased the plasticity, and also reduced the viscosity of the oil and thus precipitated oil easily. The oil production rate of the oil press is improved.
Product structure
|
Model
|
Capacity
|
Power
|
Electric machinery
|
Packing size(mm)
|
Gross and
net weight (kg)
|
|
6YL-68
|
40-50kg/h
|
5.5KW
|
380V/50HZ
|
880*440*770
|
160/140
|
|
6YL-80
|
80-150kg/h
|
5.5KW
|
380V/50HZ
|
1510*440*700
|
350/330
|
|
6YL-95/100
|
150-200kg/h
|
7.5KW
|
380V/50HZ
|
1910*550*765
|
450/420
|
|
6YL-120
|
200-300kg/h
|
11KW
|
380V/50HZ
|
2100*630*770
|
530/500
|
|
6YL-130
|
300-400kg/h
|
15KW
|
380V/50HZ
|
2280*700*780
|
780/750
|
|
6YL-160
|
400-600kg/h
|
18.5KW
|
380V/50HZ
|
2050*600*850
|
950/900
|
Applications
Applications:
Although 6YL Screw oil press machine is small in size, it boasts superior oil making capacity.It can be used for various materials such as Peanuts, Rape seeds, Soybeans, cottonseeds, Tea seeds, Tung Tree seeds, Sunflower seeds, Palm kernel, Coconut meat, Corn germ, Rice bran, Almonds, Black cumin, Cacao beans, Coffee beans, Hazelnuts, Hemp seed, Jatropha, Jojoba, Linseed, Mustard seeds,
Black seeds, Palm nuts, Poppy seeds, Pumpkin seeds, Shea nuts etc.
Although 6YL Screw oil press machine is small in size, it boasts superior oil making capacity.It can be used for various materials such as Peanuts, Rape seeds, Soybeans, cottonseeds, Tea seeds, Tung Tree seeds, Sunflower seeds, Palm kernel, Coconut meat, Corn germ, Rice bran, Almonds, Black cumin, Cacao beans, Coffee beans, Hazelnuts, Hemp seed, Jatropha, Jojoba, Linseed, Mustard seeds,
Black seeds, Palm nuts, Poppy seeds, Pumpkin seeds, Shea nuts etc.
