- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HiGlue, HiGlue
-
Model Number:
-
277, 222/242/243/262/271/272/277/290
-
Type:
-
Thread Sealant
-
Curing time:
-
12 hours
-
Packing:
-
10ml, 50ml,250ml
-
Shelf life:
-
3 Years
-
Strength:
-
High strength
-
Use:
-
Used for locking and sealing of thread below M20
-
Certificate:
-
MSDS,TDS
-
Color:
-
Red
Quick Details
-
CAS No.:
-
25852-47-5
-
Other Names:
-
Threadlocker
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
HiGlue, HiGlue
-
Model Number:
-
277, 222/242/243/262/271/272/277/290
-
Type:
-
Thread Sealant
-
Curing time:
-
12 hours
-
Packing:
-
10ml, 50ml,250ml
-
Shelf life:
-
3 Years
-
Strength:
-
High strength
-
Use:
-
Used for locking and sealing of thread below M20
-
Certificate:
-
MSDS,TDS
-
Color:
-
Red
Product Description
Designed for high-strength, permanent locking and sealing of large threads greater than 25 mm (1").

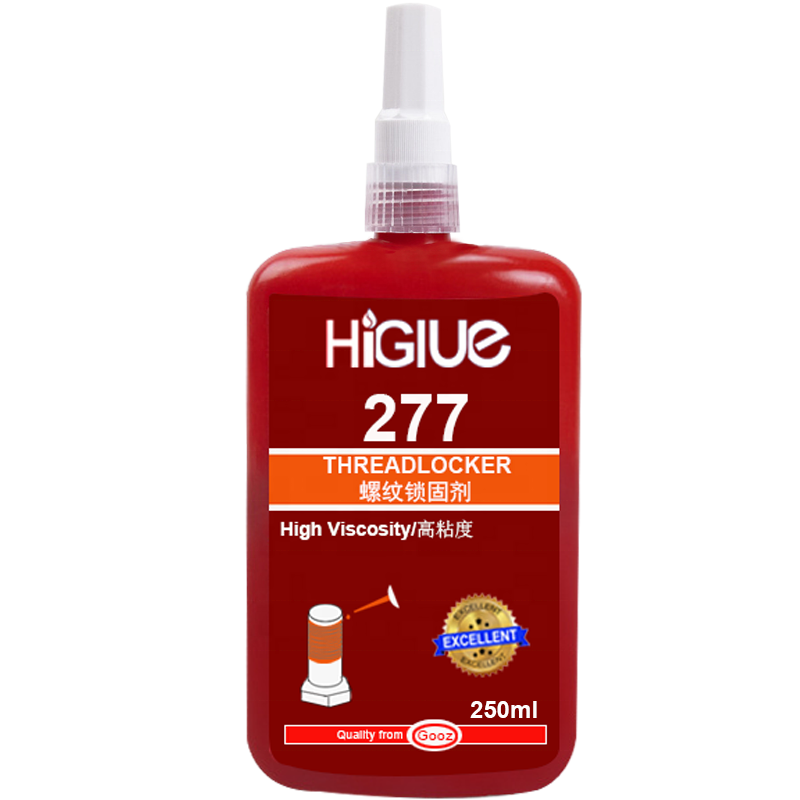

LOCTITER 277 is a red, high strength, high-viscosity threadlocking adhesive especially suitable for large bolts and studs greater than 25.4 mm (1"). Disassembly with heat possible.
50ml Screw Glue Loctiter Thread Sealant Sealing
Anaerobic Locking Adhesive 222 242 243 262 270 271 272 277 290
HiGlue anaerobic thread sealant enable clients to lock bolts, studs, nuts and screws. Also to avoid loosening caused by stress and
vibration.
BENIFITS:
• Replace mechanical washers and fasteners.
• Prevent loosening caused by vibration, mechanical and thermal shock.
• Lubricate for easier assembly.
• Maintain the initial applied torque.
• Available in 3 grades of locking strength: low (easy to dismantle), medium (possible to dismantle), high (permanent locking).
Anaerobic Locking Adhesive 222 242 243 262 270 271 272 277 290
HiGlue anaerobic thread sealant enable clients to lock bolts, studs, nuts and screws. Also to avoid loosening caused by stress and
vibration.
BENIFITS:
• Replace mechanical washers and fasteners.
• Prevent loosening caused by vibration, mechanical and thermal shock.
• Lubricate for easier assembly.
• Maintain the initial applied torque.
• Available in 3 grades of locking strength: low (easy to dismantle), medium (possible to dismantle), high (permanent locking).
Features&Benefits
* Prevents loosening on vibrating assemblies, e.g. pumps, gear boxes or presses
* Works on all metals, including passive substrates (e.g. stainless steel, aluminum, plated surfaces)
* Proven to tolerate minor contamination by industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids
* Permits disassembly with ordinary hand tools for easy service and maintenance
* Works on all metals, including passive substrates (e.g. stainless steel, aluminum, plated surfaces)
* Proven to tolerate minor contamination by industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids
* Permits disassembly with ordinary hand tools for easy service and maintenance
Specification
|
Product
Number |
Container
(ml) |
color
|
Viscosity
(mPa.s) |
Prevail torque(N.m)
|
Break torque
(N.M) |
Temperature range (°C)
|
Fixture time/
Fullcure time |
|
222
|
10/50/250
|
Purple
|
1200/5000
|
3.4
|
6
|
-54/150
|
20min/24hrs
|
|
242
|
10/50/250
|
Blue
|
1300/3000
|
4.9
|
12.4
|
-54/150
|
20min/24hrs
|
|
243
|
10/50/250
|
Blue
|
1300/3000
|
7
|
20
|
-54/150
|
20min/24hrs
|
|
262
|
10/50/250
|
Red
|
1200/2400
|
32
|
22
|
-54/150
|
20min/24hrs
|
|
271
|
10/50/250
|
Red
|
400/600
|
25-40
|
17-40
|
-54/150
|
20min/24hrs
|
|
272
|
10/50/250
|
Red
|
4000/5000
|
25
|
23
|
-54/230
|
20min/24hrs
|
|
277
|
10/50/250
|
Red
|
6000/8000
|
32
|
32
|
-54/150
|
20min/24hrs
|
|
290
|
10/50/250
|
Green
|
25-55
|
29
|
10
|
-54/150
|
20min/24hrs
|
When choosing a threadlocker, there are four things to consider
1. Strength
▶ Low Strength (Purple): Ideal for fasteners <1⁄4" (6 mm). Easy disassembly using hand tools
▶ Medium Strength (Blue): Designed to be removable with standard hand tools on 1⁄4" to 3⁄4" fasteners
,like 242 243 262 263
▶ High Strength (Red): Designed to deliver high strength on 1⁄4" to 3⁄4" (6 mm to 22 mm) fasteners. For removal, it may require
localized heat (>550°F/260°C), hand tools, and disassembly while hot,like 271 272 290
2. Viscosity
▶ Liquid Formulas: Everyday assembly; ideal for fine threads and blind holes
▶ Semisolid Formulas: Pocket-friendly, ideal for overhead applications
▶ Tape Formula: Pocket-friendly; controlled application; can be pre-applied several days before assembly
3. Application Methods
▶ Pre-Applied: Quick Tape threadlocker can be applied beforehand on bolts that are waiting to be assembled
▶ Pre-Assembly: Most HiGlue liquid threadlockers are designed to be applied at the moment that parts will be assembled
▶ Post-Assembly: Wicking grade formula can be applied on parts that are already assembled
4. Materials Being Assembled
All HiGlue Threadlockers: Metal-to-metal applications
425 Assure: Plastic-to-plastic, plastic-to-metal applications
1. Strength
▶ Low Strength (Purple): Ideal for fasteners <1⁄4" (6 mm). Easy disassembly using hand tools
▶ Medium Strength (Blue): Designed to be removable with standard hand tools on 1⁄4" to 3⁄4" fasteners
,like 242 243 262 263
▶ High Strength (Red): Designed to deliver high strength on 1⁄4" to 3⁄4" (6 mm to 22 mm) fasteners. For removal, it may require
localized heat (>550°F/260°C), hand tools, and disassembly while hot,like 271 272 290
2. Viscosity
▶ Liquid Formulas: Everyday assembly; ideal for fine threads and blind holes
▶ Semisolid Formulas: Pocket-friendly, ideal for overhead applications
▶ Tape Formula: Pocket-friendly; controlled application; can be pre-applied several days before assembly
3. Application Methods
▶ Pre-Applied: Quick Tape threadlocker can be applied beforehand on bolts that are waiting to be assembled
▶ Pre-Assembly: Most HiGlue liquid threadlockers are designed to be applied at the moment that parts will be assembled
▶ Post-Assembly: Wicking grade formula can be applied on parts that are already assembled
4. Materials Being Assembled
All HiGlue Threadlockers: Metal-to-metal applications
425 Assure: Plastic-to-plastic, plastic-to-metal applications
