Quick Details
-
Brand Name:
-
Dongfeng
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
9000*2450*3800
-
Place of Origin:
-
Hubei, China
-
Name:
-
Bulk Feed Truck
-
Color:
-
Customer's Requirement
-
Chassis brand:
-
Choice
-
Driving type:
-
4x2
-
Other name:
-
Dongfeng Bulk Feed Truck
-
Tire:
-
9.00R20,9.00-20,10.00R20,10.00-20
-
Certification:
-
ISO9001 CCC
-
Warranty:
-
12 Month
-
Type:
-
Feed Transport Truck
-
Application:
-
Bulk Feed Truck
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 4
-
Gross Vehicle Weight:
-
16000
-
Brand Name:
-
Dongfeng
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
9000*2450*3800
-
Place of Origin:
-
Hubei, China
-
Name:
-
Bulk Feed Truck
-
Color:
-
Customer's Requirement
-
Chassis brand:
-
Choice
-
Driving type:
-
4x2
-
Other name:
-
Dongfeng Bulk Feed Truck
-
Tire:
-
9.00R20,9.00-20,10.00R20,10.00-20
-
Certification:
-
ISO9001 CCC
-
Warranty:
-
12 Month
-
Type:
-
Feed Transport Truck
-
Application:
-
Bulk Feed Truck
Product Description

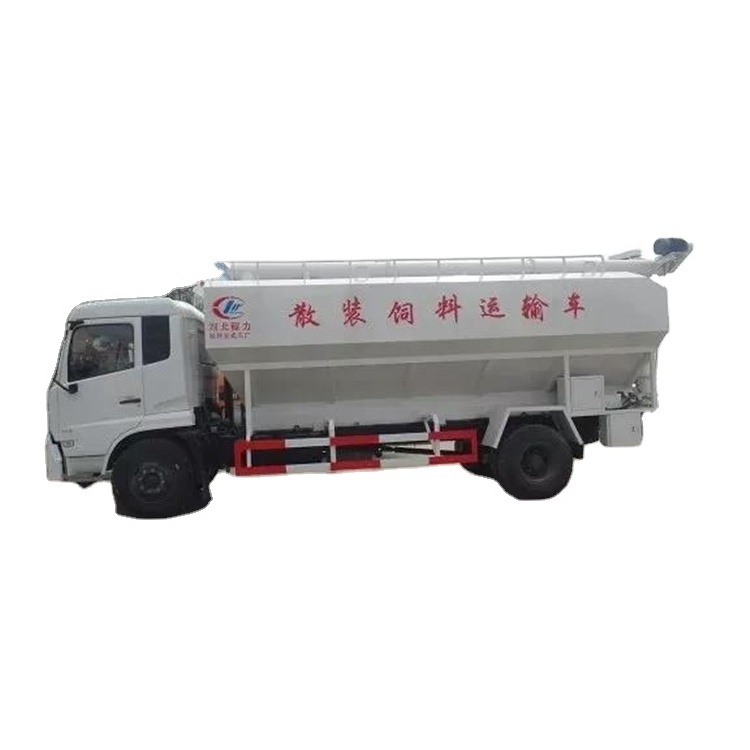

Dongfeng Bulk Feed Delivery Tanker Truck
Bulk feed Delivery Tanker Truck (bulk feed car), called bulk animal chicken feed transport tank truck,bulk feed delivery truck,bulk feed pellet truck,bulk-grain carrier,bulk forage truck etc.It is mainly used in the feed factory to livestock poultry farm and feed processing user or transport bulk raw grain feed finished feed production, at the same time it also can be used to transport some no corrosive powder and granular materials, such as pharmaceutical powder and grain circulation.
Main Parameter as bellow:
Chassis Brand Dongfeng Tianjin,
Drive Type 4X2, LHD/RHD.
Load Capacity 10T/20CBM
Conveying height: 8 m.
Conveying height: 8 m.
Vehicle discharging time: 30 minutes.
Material Carbon steel
Tire No. 6+1(spare),
Tire No. 6+1(spare),
Tire specifications 9.00R20,9.00-20,10.00R20,10.00-20
Braking System Air braking.Clutch Uniwafer, dry clutch, hydraulic remote control
Transmission 6forward gear,1 reverse gear, manual mechanical type
Engine Model YC6J180-52 ,
Braking System Air braking.Clutch Uniwafer, dry clutch, hydraulic remote control
Transmission 6forward gear,1 reverse gear, manual mechanical type
Engine Model YC6J180-52 ,
Engine Manufacturer Yuchai diesel engine,180Horsepower,Emission Euro 5
Displacement(cc)/Power(kw) 6494/132
Overall dimension (L*W*H) 9000×2450×3800 mm.
Displacement(cc)/Power(kw) 6494/132
Overall dimension (L*W*H) 9000×2450×3800 mm.
Wheelbase 4500,4700,5000mm.
Axles No. 2
GVW(kg) 16000kg.
GVW(kg) 16000kg.
Curb Weight(kg) 9250kg.
Rated Weight(kg) 6620,6555 (Kg).
Front/Rear Axle Load(kg) 6000/10000
Leaf spring No. 7/9+6,9/10+8.
Leaf spring No. 7/9+6,9/10+8.
Approaching/Departure Angle(°) 20/10,9.
Max speed(km/h) 90
Front/Rear trace(mm) 1880,1920/1800.
Front/Rear trace(mm) 1880,1920/1800.
Front/Rear suspension(mm) 1430/2570,2870
