Quick Details
-
Brand Name:
-
ODMT
-
Model Number:
-
MPTA05-400
-
keyword:
-
pressure testing machine
-
Boost Medium:
-
water/hydraulic oil
-
Application:
-
Burst Test for Pipes/Valves/Hoses
-
Maximum Output Pressure:
-
<=600 Mpa
-
Material:
-
Aluminum Alloy and Stainlesss Steel
-
OEM:
-
available
-
standard or nonstandard:
-
customization
-
HS Code:
-
8414809090
Quick Details
-
Warranty:
-
one year, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ODMT
-
Model Number:
-
MPTA05-400
-
keyword:
-
pressure testing machine
-
Boost Medium:
-
water/hydraulic oil
-
Application:
-
Burst Test for Pipes/Valves/Hoses
-
Maximum Output Pressure:
-
<=600 Mpa
-
Material:
-
Aluminum Alloy and Stainlesss Steel
-
OEM:
-
available
-
standard or nonstandard:
-
customization
-
HS Code:
-
8414809090
Product Description
Specification
Product Introduction
The main function:

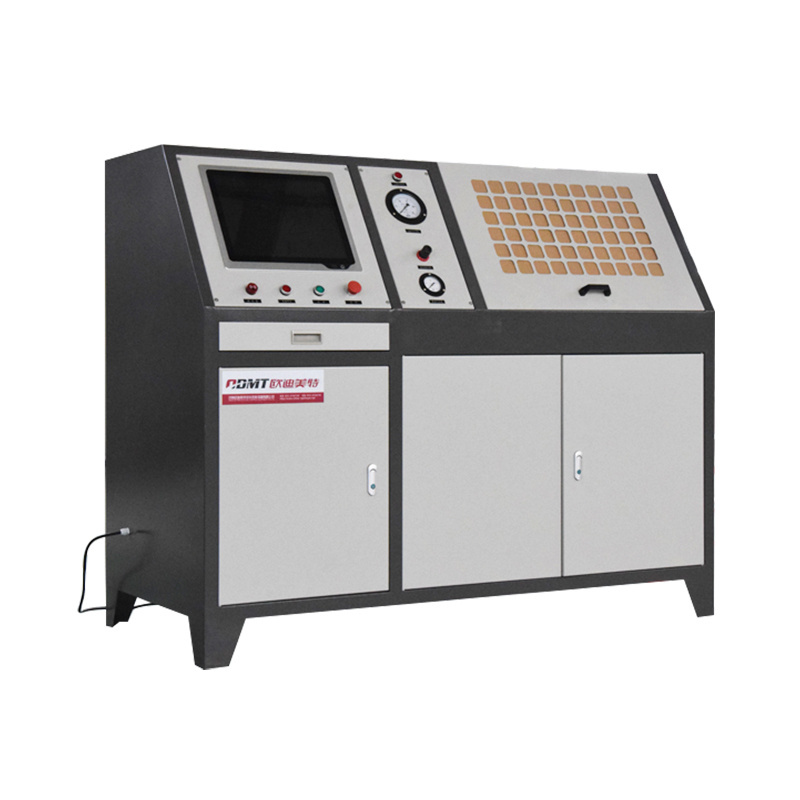

MPT series bursting pressure test bench can carry out water (oil) pressure test on various pipelines and containers. For different
test purposes, multi-step pressure test and burst test can be carried out on the tested parts by pressure setting.
2. Using a pneumatic booster system, the boost rate can be set
within the range as needed;
3. Using the pneumatic supercharger independently developed by our
company as the supercharging device, the boosting speed is fast and the pressure is stable;
4. Adopt PLC control, set and display the number of tests,
pressure, time, etc. through the touch screen, automatically stop the test and complete the task alarm buzzer when the
requirements are met;
5. The test bed is equipped with an emergency button, and the test
can be stopped immediately if there is an event.
6. Typical test procedure:
Constant speed boost-bursting
Constant speed boost-Holding pressure-bursting
Constant speed boost-Holding pressure-Pressure relief
Constant speed boost-Holding pressure-constant speed boost-Holding pressure-Until bursting
7. The operation interface is similar to the following figure:
|
Pressure range
|
0-6400bar
|
Control type
|
Computer control or PLC and Manual control type
|
|
Test accuracy
|
+/-0.5%FS
|
Connection size(inch)Drive
|
customization
|
|
Timing range
|
0-9999 hours
|
Connection size(inch) Inlet
|
customization
|
|
Main power source
|
Air driven booster pump
|
Connection size(inch) Outlet
|
customization
|
|
Testing medium
|
water/hydraulic oil
|
Max outlet flow
|
45.84L/min
|
|
Driven air pressure
|
3-8bar
|
Max Pressure ratio
|
800:1
|
|
Pipe joint
|
Stainless steel
|
Structure
|
Pressurization system, Fixture system, Test system.
|
Part of Machine
Company Profie
Certifications
Packing & Delivery
FAQ
|
1. Delivery Term: FOB Qingdao, by vessel
2. Delivery Time: 15-20 days 3. Payment Terms: T/T (100% to pay by T/T ) 4. Installation / Operation / Service / Manual: In English 5. Warranty: One year from the date of completion of the commissioning. 6. Pre-shipment Inspection: Supplier should trial run whole line at supplier's factory before shipment. |
