Quick Details
-
Place of Origin:
-
Dongguan, China
-
Brand Name:
-
Corecon
-
Model Number:
-
KRX17*-2X06TK-**
-

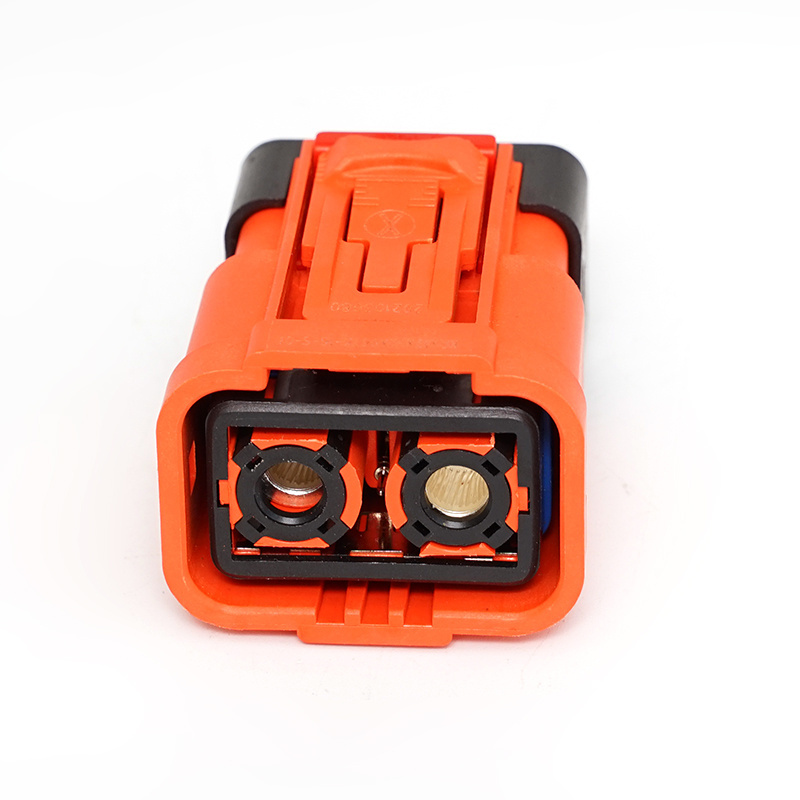

Product name:
-
Energy Connector
-
Temperature::
-
-55℃-125℃
-
Rated Current:
-
120A
-
Insulation Resistance:
-
500MΩ
-
Dielectric Withstand Voltage:
-
3000V DC
-
Mechanical Life:
-
500 times
-
Salt Spray:
-
48 hours
-
Waterproof Level:
-
IP67(after plug in)
-
Wire Cross Section:
-
10/16/25 mm²
-
MOQ:
-
10sets
Quick Details
-
Type:
-
Automotive
-
Application:
-
Energy storage
-
Gender:
-
Female/Male
-
Place of Origin:
-
Dongguan, China
-
Brand Name:
-
Corecon
-
Model Number:
-
KRX17*-2X06TK-**
-
Product name:
-
Energy Connector
-
Temperature::
-
-55℃-125℃
-
Rated Current:
-
120A
-
Insulation Resistance:
-
500MΩ
-
Dielectric Withstand Voltage:
-
3000V DC
-
Mechanical Life:
-
500 times
-
Salt Spray:
-
48 hours
-
Waterproof Level:
-
IP67(after plug in)
-
Wire Cross Section:
-
10/16/25 mm²
-
MOQ:
-
10sets
Products Description
|
Series
|
Connector Type
|
Number of Position
|
Rated Current
|
Cable size
|
HV Interlock
|
Shield function
|
|
KRX12
|
Plug
|
1
|
150A
|
25A/35A/50mm²
|
No
|
No
|
|
|
Socket
|
|
|
|
|
|
|
KRX16
|
Plug
|
2
|
60A
|
2.5/4/8/10
mm²
|
Optional
|
Optional
|
|
|
Socket
|
|
|
|
|
|
|
|
Plug
|
3
|
|
|
|
|
|
|
Socket
|
|
|
|
|
|
|
KRX17
|
Plug
|
2
|
120A
|
16/25mm²
|
Optional
|
Optional
|
|
|
Socket
|
|
|
|
|
|
|
KRX20
|
Straight plug
|
2
|
200A
|
25/35/50
mm²
|
Optional
|
Optional
|
|
|
Elbow plug
|
|
|
|
|
|
|
|
Socket
|
|
|
|
|
|
|
|
Straight plug
|
3
|
|
|
|
|
|
|
Elbow plug
|
|
|
|
|
|
|
|
Socket
|
|
|
|
|
|
Feature
* Touch-proofdesign
* HVIL and shield options
* Ingress protection: IP67
* 360° shielded connection
* Multiple key options: X, Y, U, V
* Wide wire range option: 16mm2, 25mm2
* Push-pull lockingwith secondary locking function
* HVIL and shield options
* Ingress protection: IP67
* 360° shielded connection
* Multiple key options: X, Y, U, V
* Wide wire range option: 16mm2, 25mm2
* Push-pull lockingwith secondary locking function
Specfication
* Temperature: -55℃∽ +125℃
* Rated Current: 120A
* Insulation Resistance: 500MΩ
* Dielectric Withstand Voltage: 3000VDC
* Mechanical Life: 500 times
* Salt Spray: 48 hours
* Ingress Protection: IP67
* Rated Current: 120A
* Insulation Resistance: 500MΩ
* Dielectric Withstand Voltage: 3000VDC
* Mechanical Life: 500 times
* Salt Spray: 48 hours
* Ingress Protection: IP67
Application
* DC-to-DC Converters
* AC/DC Charging Station
* Electric bus
* Electric motors
* High-current batteries pack
* Hybrid electric vehicles
* HV PDU
* PTC & Auxiliary
* PTC heater
* On-Board Charger (OBC)
* Inverters
* AC/DC Charging Station
* Electric bus
* Electric motors
* High-current batteries pack
* Hybrid electric vehicles
* HV PDU
* PTC & Auxiliary
* PTC heater
* On-Board Charger (OBC)
* Inverters
This is not a definitive list of applications for this product. It represents some of the more common uses.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Corecon
|
|
Model Number
|
KRX17*-2X06TK-**
|
|
Type
|
DC power plug
|
|
Application
|
Power, PDU / Battery / Motor / Rail system / Marine
|
|
Gender
|
Male/Female
|
|
Color
|
Orange
|
|
Life
|
500 times
|
|
Warranty
|
12 months
|
|
Certificate
|
ISO9001:2015, CE, RoHS
|
|
Temperature:
|
-55℃∽ +125℃
|
|
Salt Spray
|
96 hours
|
Product Description
Application Scenarios
Production Proces
Our Certificates
Packing & Delivery
Packaging:
Cartons
Size : 46cm*30cm*25cm
30cm*30cm*13.5cm
26cm*21cm*10cm
PS ：Label can be customized based on customers' requests
Cartons
Size : 46cm*30cm*25cm
30cm*30cm*13.5cm
26cm*21cm*10cm
PS ：Label can be customized based on customers' requests
