Quick Details
-
Model Number:
-
SEN-SZ43WA
-
Brand Name:
-
SAIER
-
Connection:
-
G3/4"
-
Material:
-
Plastic
-
Used Medium:
-
Water, Working Temperature(0~80℃)
-
Withstand hydraulic pressure:
-
0.2~0.8MPa
-
Starting characteristic:
-
0.08MPa, When Loading 0.9 Times Rated Voltage
-
Sealing performance:
-
Inlet Pressure is Below 0.02MPa
-
Power and electrical:
-
5.2W(DC12V)
-
Customization:
-
Normal Temperature and Non Pressure Drain Valve
-
insulated resistor:
-
>100MΩ
Quick Details
-
Port Size:
-
G3/4"
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SEN-SZ43WA
-
Brand Name:
-
SAIER
-
Connection:
-
G3/4"
-
Material:
-
Plastic
-
Used Medium:
-
Water, Working Temperature(0~80℃)
-
Withstand hydraulic pressure:
-
0.2~0.8MPa
-
Starting characteristic:
-
0.08MPa, When Loading 0.9 Times Rated Voltage
-
Sealing performance:
-
Inlet Pressure is Below 0.02MPa
-
Power and electrical:
-
5.2W(DC12V)
-
Customization:
-
Normal Temperature and Non Pressure Drain Valve
-
insulated resistor:
-
>100MΩ

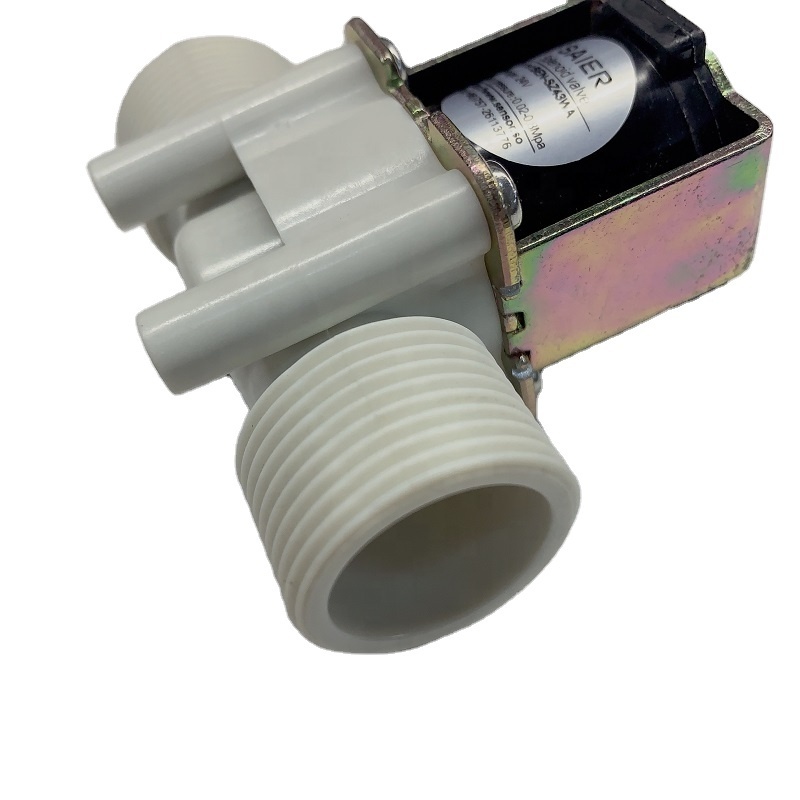

One Ways Low Pressure Solenoid Valve DC12V Plastic Solenoid Water Valve For 3L/min-25L/min Control Solenoid Valve
Product Description
|
Product Name
|
DC12Vwater solenoid valve
|
|
|
|
|
||||
|
Material
|
Plastic
|
|
|
|
|
||||
|
Connection Size
|
G3/4" DN20
|
|
|
|
|
||||
|
Style
|
One way normally closed inlet water valve & sensor
|
|
|
|
|
||||
|
Operating Voltage
|
DC12V
|
|
|
|
|
||||
|
Function
|
Water Valve
, apply to hot water heater, water control machine, water sales machine, water treatment equipment etc
|
|
|
|
|
||||
|
Features
|
The coil is energized to generate electromagnetic force, pushing the iron core to overcome the spring force to move, through the pilot structure or direct motion structure, realize the waterway on and off.When the coil loses power, the iron core returns to its original position under the action of spring force, and the solenoid valve is closed through the above structure
|
|
|
|
|
||||
Impeller Flowmeter
Application: Coffee machine & capsule coffee machine.
Material: Food grade
