High Pressure 4-20mA Oil and Gas Transducer Oem Pressure Transducer Hydraulic System Pressure Sensor Transducer

High Pressure 4-20mA Oil and Gas Transducer Oem Pressure Transducer Hydraulic System Pressure Sensor Transducer

FOB Reference Price: Get Latest Price

≥10 Pieces

US $48

≥50 Pieces

US $46

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: PPM-T222H

Name:: Pressure Sensor Transducer 20 Bar

Measuring medium:: Gas, liquid

Pressure type:: Gauge pressure(G), Sealed pressure(S)

Pressure range:: 0~400bar

Power supply:: 9-32VDC

Output signal:: 4~20mA ,0~10VDC,0~5VDC

Accuracy:: 0.5%FS

Medium temp:: -40~+85℃

Overpressure:: 150%FS (1.5 times FS)

Damage pressure:: 500%FS (5 times FS)

Quick Details

Warranty:: 1.5 years

Place of Origin:: Hunan, China

Brand Name:: Tecnk

Model Number:: PPM-T222H

Name:: Pressure Sensor Transducer 20 Bar

Measuring medium:: Gas, liquid

Pressure type:: Gauge pressure(G), Sealed pressure(S)

Pressure range:: 0~400bar

Power supply:: 9-32VDC

Output signal:: 4~20mA ,0~10VDC,0~5VDC

Accuracy:: 0.5%FS

Medium temp:: -40~+85℃

Overpressure:: 150%FS (1.5 times FS)

Damage pressure:: 500%FS (5 times FS)

Products Description

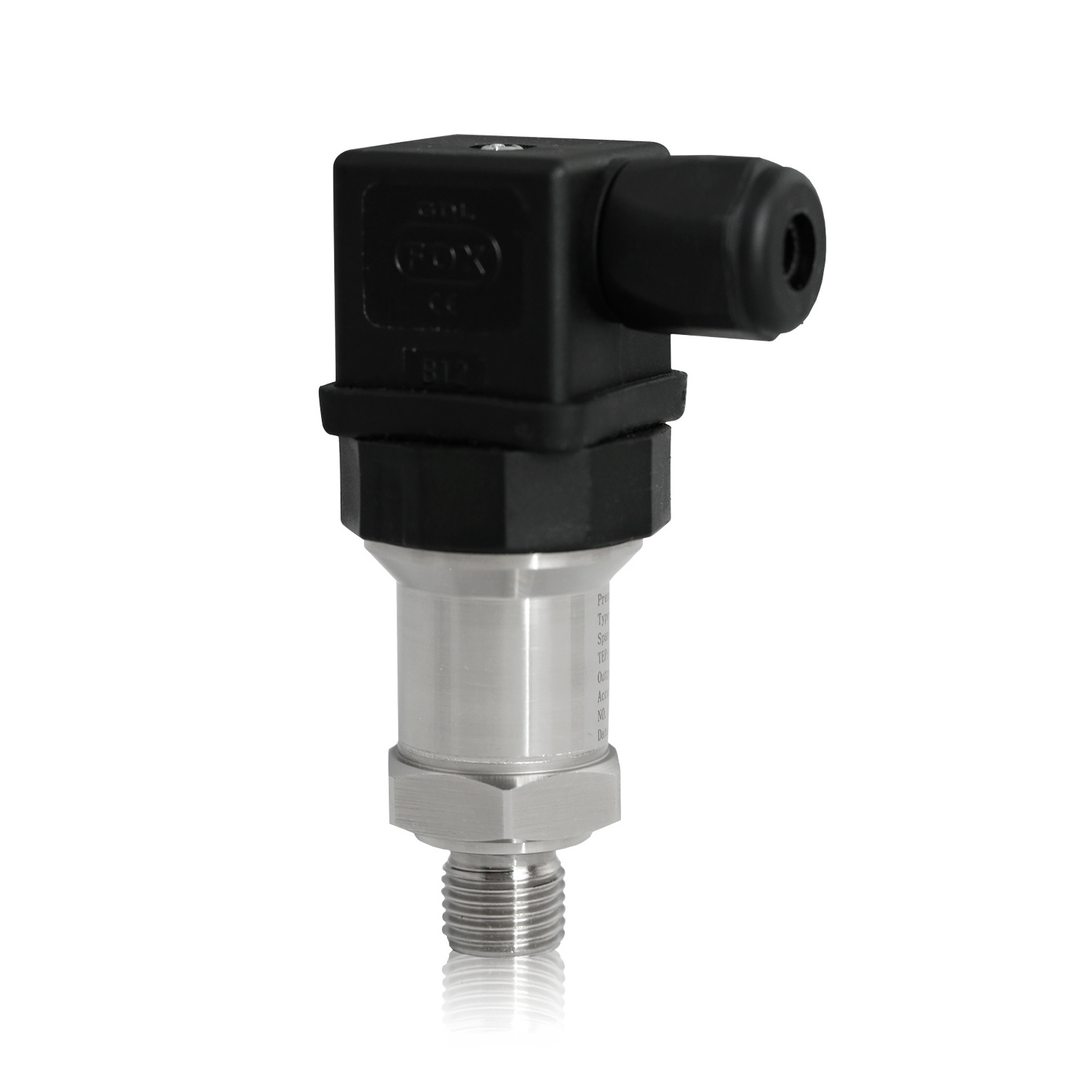

●The model PPM-T222H pressure transmitter is the ideal solution for general industrial application.

●The model PPM-T222H offers continuous measuring ranges between 0~160 bar to 0~1000 bar in all common engineering units.

●The measuring ranges can be combined with several standard industry output signal, such as 4~20mA, 0~10 V, 0~5 and many others.

Product Paramenters

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S)
Pressure range	0～10bar、16bar、25bar、40bar、60bar、160bar、250bar、400bar、600bar、700bar、1000bar
Power supply	9-32VDC
Output signal	4～20mA 、0～10VDC、0～5VDC、1～5VDC、0.5～4.5 VDC
Nonlinearity	≤0.25% FS (10bar、16bar、25bar) ≤0.05% FS (≥40bar)
Non-repeatability	≤0.1% FS
Accuracy	0.5%FS
Long-term stability	0.15%FS/year
Medium temp	-40～+125℃
Operation temp	-40～+125℃
Zero temp. drift	≤0.02%FS/℃
FS temp. drift	≤0.02%FS/℃
Response time	≤1ms(10%～90%)
Insulation resistance	≥1000 MΩ/100V
Overpressure	150%FS （1.5 times FS）
Damage pressure	500%FS （5 times FS）
Vibration resistance	5～1000Hz
Shock resistance	50g, 20ms
Process connections	G1/4, M14×1.5, or other process connections on request
Materials	Wetted parts: 17-4PH, non-wetted parts: stainless steel 304
Ingress protection	IP67
Electrical connections	Circular connector M12 x 1、L-connector DIN43650

Dimensions(unit:mm)

Application

Certifications

Exhibition

FAQ

Q: How long will you give me the reply? A: we will contact you as soon as we can.

Q:Could I visit your factory? A: Sincerely welcome you to visit our factory.

Q: Do you provide samples ? A: Yes, we have materials in stock to help you to get the samples asap.

Q: How about the quality of the managements ? A: We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping to you .

Q: What is the warranty for your product ? A: Warranty: 1 years, and lifetime maintenance online after-service.
