Quick Details
-
Weight (KG):
-
1 kg
-
Product name:
-
stainless steel filter element /sintered filter tube /cartridge filter
-
Material:
-
Stainless Steel
-
Usage:
-
filtration
-
structure:
-
Cartridge
-
length:
-
5-40 inch
-
micron size:
-
1-200um
-
thread specification:
-
222,226,215,M36,M28,M24,M22,M20
-
sample:
-
can be offered
-
specification:
-
can be customized
Quick Details
-
Core Components:
-
None
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Haocheng
-
Weight (KG):
-
1 kg
-
Product name:
-
stainless steel filter element /sintered filter tube /cartridge filter
-
Material:
-
Stainless Steel
-
Usage:
-
filtration
-
structure:
-
Cartridge
-
length:
-
5-40 inch
-
micron size:
-
1-200um
-
thread specification:
-
222,226,215,M36,M28,M24,M22,M20
-
sample:
-
can be offered
-
specification:
-
can be customized
Products Description
|
Material
|
Stainless steel 304, 316, 316L, Monel, Hastelloy etc
|
|
|
|
|||
|
Control layer(mesh)：
|
325*2400 200*1400 165*1400 165*800 50*250 etc.
|
|
|
|
|||
|
Length：
|
5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
|
|
|
|
|||
|
Diameter：
|
Ø25, 30, 50, 60, 65, 70mm
|
|
|
|
|||
|
End caps：
|
DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
|
|
|
|
|||
|
Bubble point pressure：
|
280-640(2um) 250-600(5um) 220-550(10um) 180-450(20um) 150-400(40um)
|
|
|
|
|||
Feature:
* High mechanical strength, pressure tolerance.
* Stable pore shapes for perfect permeability.
* High durability and dirt holding capacity.
* Corrosion and rust resistance.
* Easy to clean and long service life.
Application：
Gas distribution in the fluidized bed.
* Washing and drying in pharmaceutical industry.
* Polymer filtration in chemical industry.
* Water treatment in the field of beverage.
* Filtration of gas in the field of food.
* Filtration of hydraulic oil in machinery industry.
Sintered Filter Elements have different aperture, porosity and filter rating. The general filter rating are from 0.2um to 200um, working temperature from -200°C to 1000°C.
Product Images
The follow picture shows a stainless steel sintered wire mesh panel made form five different layers of stainless steel wire mesh
combined and sintered together through vacuum sintering, compressing, and rolling, forming a porous sintered mesh.
combined and sintered together through vacuum sintering, compressing, and rolling, forming a porous sintered mesh.
Specification

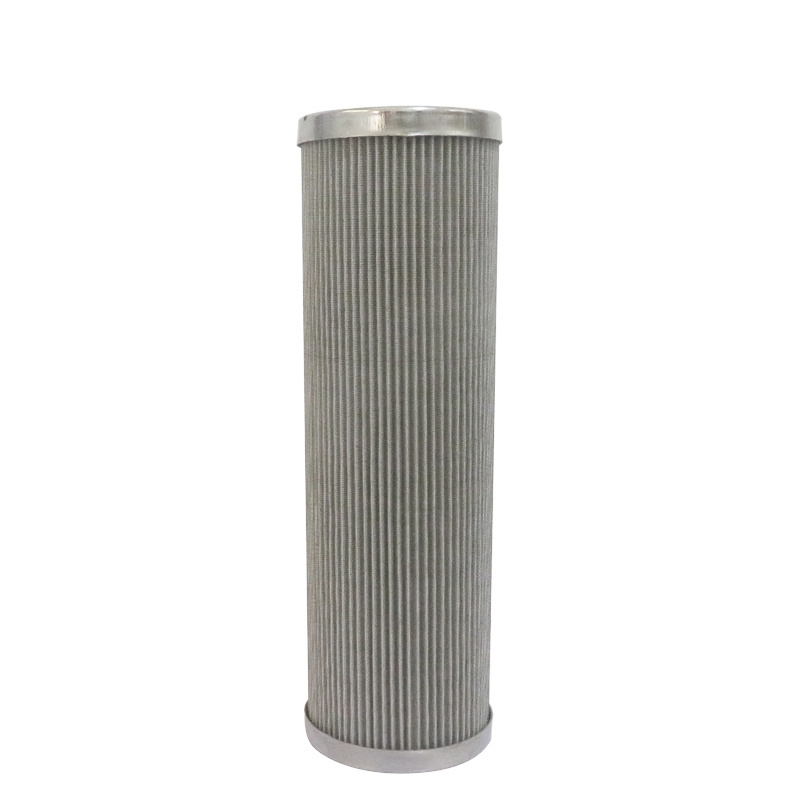

Sintered mesh filter
cartridge is mainly made of high quality stainless steel, including common type and pleated type. They both
have high mechanical strength and pressure tolerance, and the pleated type sintered mesh filter cartridge has larger filtering
surface than the common type. They are corrosion resistant and easy to clean. Featured by high durability and long service life,
sintered mesh filter cartridges are widely used for liquid and gas filtration, chemical fiber filtration, polyester and water
treatment industries.
have high mechanical strength and pressure tolerance, and the pleated type sintered mesh filter cartridge has larger filtering
surface than the common type. They are corrosion resistant and easy to clean. Featured by high durability and long service life,
sintered mesh filter cartridges are widely used for liquid and gas filtration, chemical fiber filtration, polyester and water
treatment industries.
