Quick Details
-
Model Number:
-
HY-F35D HY-F50D HY-F75D HY-F100D HY-F120D HY-F150D
-
Place of Origin:
-
Anhui, China
-
Material:
-
Stainless steel 304 high pressure one door mushroom autoclave
-
Volume:
-
35L 50L 75L 100L 120L 150L
-
Working Pressure:
-
0.22 Mpa
-
Max Working Pressure::
-
0.23 Mpa
-
Working Temperature:
-
134℃
-
Heat average:
-
≤±1℃
-
Timer:
-
0~99min or 0~99hour59min
-
Adjustment of temperature:
-
105~134℃
-
Sterilization Objects:
-
Surgical instruments, fabrics, glasses, culture medium, mushroom etc
-
Autoclave Application:
-
Clinics, scientific research, hospital etc
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
HouYuan Medical
-
Model Number:
-
HY-F35D HY-F50D HY-F75D HY-F100D HY-F120D HY-F150D
-
Place of Origin:
-
Anhui, China
-
Material:
-
Stainless steel 304 high pressure one door mushroom autoclave
-
Volume:
-
35L 50L 75L 100L 120L 150L
-
Working Pressure:
-
0.22 Mpa
-
Max Working Pressure::
-
0.23 Mpa
-
Working Temperature:
-
134℃
-
Heat average:
-
≤±1℃
-
Timer:
-
0~99min or 0~99hour59min
-
Adjustment of temperature:
-
105~134℃
-
Sterilization Objects:
-
Surgical instruments, fabrics, glasses, culture medium, mushroom etc
-
Autoclave Application:
-
Clinics, scientific research, hospital etc
Products Description

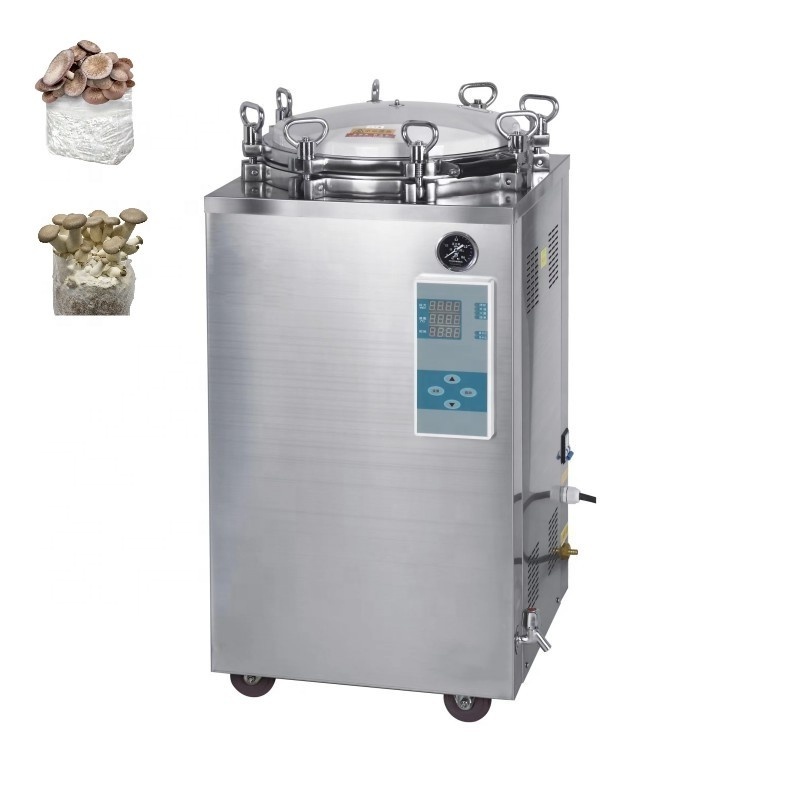

HouYuan Vertical 35l 50l 75l 100l 120l 150 liter High Pressure One Door Autoclave
*Vertical
Autoclave
Features:
1. Fulling stainless steel
2. LED display of working status, touch key
3. Auto discharge the cool air, steam discharging automatically
4. Automatically shut off with beep reminding after sterilization finished
5. With standard two stainless steel sterilizing baskets
6. Power supply can be customized FOR FREE
7.
Optional: Drying System, Printer
|
Vertical Autoclave
Specification
|
|
|
|
|
|
|
||||||
|
Model
|
HY-F35D
|
HY-F50D
|
HY-F75D
|
HY-F100D
|
HY-F120D
|
HY-F150D
|
||||||
|
Capacity
|
35L
|
50L
|
75L
|
100L
|
120L
|
150L
|
||||||
|
Chamber Size
|
Φ318x450mm
|
Φ340x550mm
|
Φ400x600mm
|
Φ440x650mm
|
Φ480x660mm
|
Φ510x740mm
|
||||||
|
Working Pressure
|
0.22MPa
|
|
|
|
|
|
||||||
|
Working Temperature
|
134℃
|
|
|
|
|
|
||||||
|
Max working pressure
|
0.23Mpa
|
|
|
|
|
|
||||||
|
Heat average
|
≤±1℃
|
|
|
|
|
|
||||||
|
Timer range
|
0-90min or 0-99hour59min
|
|
|
|
|
|
||||||
|
Temperature adjust range
|
105-134℃
|
|
|
|
|
|
||||||
|
Power
|
1x2.5KW/AC220V.50Hz
|
2x1.5KW/AC220V.50Hz
|
3x1.5KW/AC220V.50Hz
|
|
3x2.0KW/AC220V.50Hz
|
|
||||||
|
Overall Dimension
|
470x450x840mm
|
520x500x970mm
|
550x530x990mm
|
580x560x1060mm
|
630x610x1130mm
|
660x640x1130mm
|
||||||
|
Transport dimension
|
570x570x1000mm
|
610x610x1130mm
|
650x650x1150mm
|
680x680x1220mm
|
730x730x1280mm
|
760x760x1280mm
|
||||||
|
G.W/N.W
|
84KG /63KG
|
82KG /74KG
|
118KG /93 KG
|
133KG /105KG
|
126KG/101KG
|
136KG/111KG
|
||||||
