Quick Details
-
Model Number:
-
LZBR
-
Power supply:
-
15v-24v
-
Material:
-
304ss
-
Overall power consumption:
-
<2.4W
-
Product Name:
-
Coriolis mass flow meter
-
Size:
-
8mm,10mm,15mm,20mm,etc,
-
Connection:
-
Flange
-
Accuracy:
-
0.2%
-
Protection Class:
-
IP68
-
medium temperature:
-
-40~350℃
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Model Number:
-
LZBR
-
Power supply:
-
15v-24v
-
Material:
-
304ss
-
Overall power consumption:
-
<2.4W
-
Product Name:
-
Coriolis mass flow meter
-
Size:
-
8mm,10mm,15mm,20mm,etc,
-
Connection:
-
Flange
-
Accuracy:
-
0.2%
-
Protection Class:
-
IP68
-
medium temperature:
-
-40~350℃
Product Description

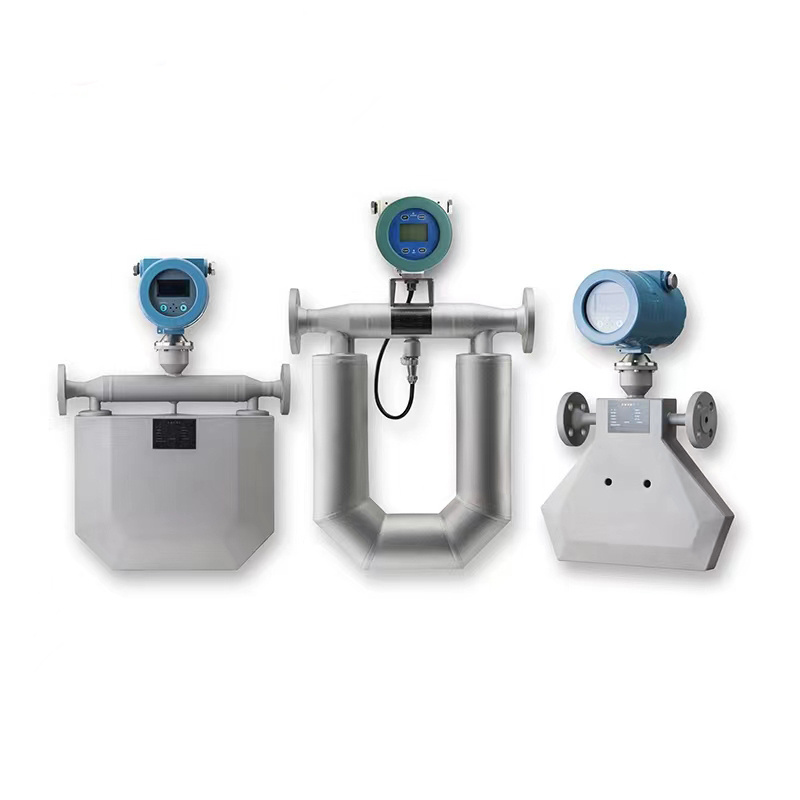

High Quality U-shaped Flow meter Sensor Density Meter
Gasoline Diesel Liquid Gas Density Coriolis Mass Flow Meter
MF(X) series mass flow meter is a new type of flow measurement instrument developed by our company based on the Coriolis force principle by introducing leading foreign technology.
It can directly measure the mass flow of fluid in a closed pipeline. The flow meter consists of a flow measurement sensor and a signal converter.
Main Features
|
1.
|
Able to directly measure the mass flow of fluid (this is of great significance for the measurement and control of production processes such as energy measurement and chemical reactions)
|
|
|
|
|||
|
2.
|
High measurement accuracy (measurement accuracy can be guaranteed to be between 0.1% and 0.5%)
|
|
|
|
|||
|
3.
|
Wide range of applications (in addition to normal fluid measurement, it can also measure industrial media that are difficult to measure with general fluid measuring instruments, such as non-Newtonian fluids, various slurries, suspensions, etc.)
|
|
|
|
|||
|
4.
|
The installation requirements are not high (no requirements for upstream and downstream straight pipe sections)
|
|
|
|
|||
|
5.
|
Reliable operation, low maintenance rate, etc.
|
|
|
|
|||
|
Liquid measurement accuracy
|
±0.1~0.2%;
|
|
Repeatability
|
0.05~0.1%.
|
|
Density (liquid) measurement range and accuracy
|
0～5g/cm3
|
|
Temperature measurement range
|
-200~350℃;
|
|
Working pressure
|
0~4.0MPa, high pressure can be customized.
|
|
Explosion-proof
|
Exd (ib) IIC T6Gb.
|
Sensor Structure
① Support mechanism: The measuring tube is fixed on the support mechanism and serves as the vibration axis of the vibration system.
② Measuring tube (vibration tube): consists of two parallel bent tubes.
③Signal detector: used to detect distortion changes of the measuring tube.
④Driving device: generates electromagnetic force to drive the measuring tube to vibrate at a frequency close to the resonant frequency.
⑤ Shell: protects the measuring tube, drive and detection device.
Flow Selection Guide
|
Model
|
Size(mm)
|
Flow Range(kg/h)
|
|
MF(X)-003
|
3
|
0～150~180
|
|
MF(X)-006
|
6
|
0～480~960
|
|
MF(X)-010
|
10
|
0～1800~2100
|
|
MF(X)-015
|
15
|
0～3600~4500
|
|
MF(X)-020
|
20
|
0～6000~7200
|
|
MF(X)-025
|
25
|
0～9600~12000
|
|
MF(X)-032
|
32
|
0～18000~21000
|
|
MF(X)-040
|
40
|
0～30000~36000
|
|
MF(X)-050
|
50
|
0～48000~60000
|
|
MF(X)-080
|
80
|
0～150000~180000
|
|
MF(X)-100
|
100
|
0～240000~280000
|
|
MF(X)-150
|
150
|
0～480000~600000
|
|
MF(X)-200
|
200
|
0～900000~1200000
|
Coriolis mass flow meter installation dimension table
|
Specification
|
A (flange distance)
|
B (overall height)
|
C (body width)
|
D (shell thickness)
|
|
|
mm
|
mm
|
mm
|
mm
|
|
MFU-020
|
540
|
530
|
468
|
108
|
|
MFU-025
|
540
|
539
|
468
|
108
|
|
MFU-032
|
545
|
590
|
468
|
108
|
|
MFU-040
|
600
|
666
|
500
|
140
|
|
MFU-050
|
606
|
707
|
500
|
140
|
|
MFU-080
|
866
|
958
|
779
|
219
|
|
MFU-100
|
950
|
1094
|
830
|
273
|
|
MFU-150
|
1300
|
1350
|
1144
|
324
|
|
MFU-200
|
1300
|
1380
|
1144
|
400
|
Application Area
Chemical industry, including systems containing chemical reactions; Petroleum industry, including moisture content analysis; Oil industry, including vegetable oils, animal oils and other oils;
Pharmaceutical industry, coating industry, paper industry, textile printing and dyeing industry, fuel industry, including heavy oil, heavy oil, coal-water slurry and other fuels and lubricants;
Food industry, including aerosol beverages, health beverages and other liquid transportation industries, such as measurement of liquids transported by pipelines.
