Quick Details
-
Weight:
-
2800 KG, 2740
-
Name:
-
Farmer Tractor
-
Engine:
-
YTO Diesel Engine
-
Dimension(L*W*H):
-
3980*1760*2750
-
Clutch:
-
Double-acting Clutch
-
Gear shift:
-
12+12 Shuttle Gear
-
Wheelbase:
-
2070 mm
-
Wheel base (Front/Rear):
-
1300/1350 mm
-
Min. Ground Clearance (mm):
-
380(4 WD)
-
Color:
-
Customer Requirements
Quick Details
-
Brand Name:
-
Chalion
-
Place of Origin:
-
Henan, China
-
Engine Brand:
-
YTO
-
Weight:
-
2800 KG, 2740
-
Name:
-
Farmer Tractor
-
Engine:
-
YTO Diesel Engine
-
Dimension(L*W*H):
-
3980*1760*2750
-
Clutch:
-
Double-acting Clutch
-
Gear shift:
-
12+12 Shuttle Gear
-
Wheelbase:
-
2070 mm
-
Wheel base (Front/Rear):
-
1300/1350 mm
-
Min. Ground Clearance (mm):
-
380(4 WD)
-
Color:
-
Customer Requirements
Products Description

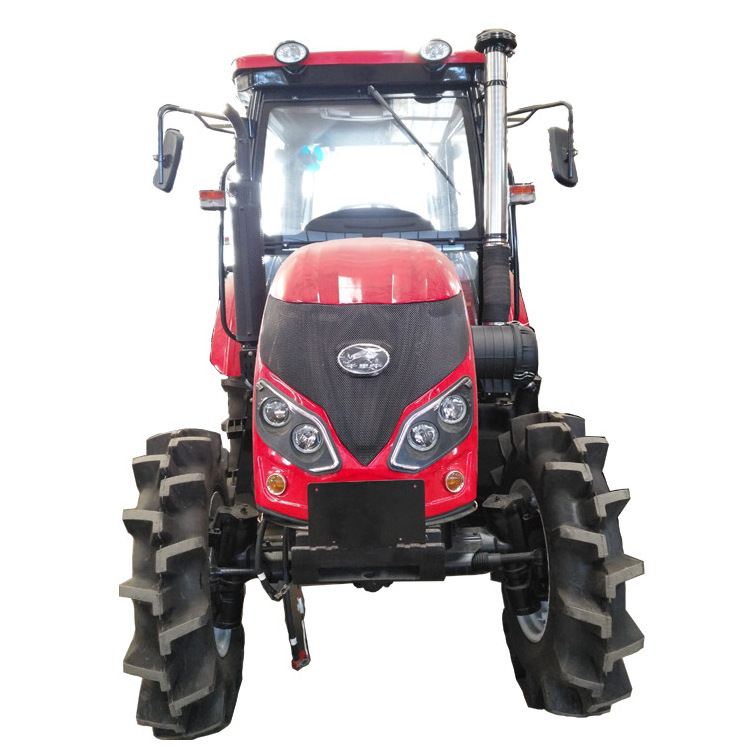

Hot Sale QLN-804 Tractor 4x4 Diesel Engine Farm Tracter 80 HP Mini Electric Tractor Agricultural Machinery And Farm Equipment
Product advantages:
2. The tractors adopt 11in.,double-acting,semi-independent,dry clutch .
3.Cheap farm tractor's wheel tread F/R (mm) use 1300/1350.
4.Our tractors use 85 L fuel tank.
5.The tractor's PTO speed is 540/760 rpm.Linkage equipped II Rear Mount 3-point.
|
Model
|
QLN-804C
|
|
|
||
|
|
Length×Width×Height(mm)
|
3980*1760*2750
|
|
||
|
|
Wheel Tread(mm)
|
Front Wheel(mm)
|
1300
|
||
|
|
|
Rear Wheel(mm)
|
1350
|
||
|
|
Min.Ground Clearance(mm)
|
380
|
|
||
|
Dry Mass
|
With Cab(kg)
|
2740
|
|
||
|
|
Engine brand
|
YTO/XINCHAI
|
|
||
|
|
Engine Model
|
Direct-injection,water-cooled 4-cylinders diesel engine
|
|
||
|
|
Number of Cylinder
|
4
|
|
||
|
|
Cooling System Type
|
Water Cooled
|
|
||
|
|
Rated Power(kw)
|
59
|
|
||
|
|
Rated Speed(r/min)
|
2200
|
|
||
|
Fuel Tank
|
Volume(L)
|
85
|
|
||
|
Transmission System
|
Clutch
|
11in.,double-acting,semi-independent,dry clutch
|
|
||
|
|
Gear Box
|
F12+R12 Shuttle Shift
|
|
||
|
Braking System
|
disc, mechanical operation,oil bath
|
|
|
||
|
|
|
Front tyre
|
8.3-24
|
||
|
|
|
Rear tyre
|
14.9-30
|
||
|
Steering System
|
Hydraulic Steering
|
|
|
||
Product details:
distribution, and a good operating adaptability.
