Quick Details
-
power phase number:
-
3 phase 380v
-
Place of Origin:
-
China
-
Brand Name:
-
M-driver
-
Model Number:
-
900-0220G3,900-0300G3
-
Warranty:
-
18months, 18 months
-
Type:
-
ac-dc-ac, ac drive
-
Size:
-
328*193*217mm
-
Overload:
-
150%- 60s,180%- 3s
-
Color:
-
Black
-
Protection:
-
IP20
-
Control model:
-
V/F,SVC
-
Application:
-
3 Phase AC Asynchronism Motor
-
Shipment:
-
Sea/air
-
Product name:
-
Variable Frequency Drive
-
Other service:
-
OEM
Quick Details
-
Control Mode:
-
V/F,Vector control,torque
-
Rated Power:
-
22kw/30kw
-
Nominal Voltage:
-
380v/480v
-
power phase number:
-
3 phase 380v
-
Place of Origin:
-
China
-
Brand Name:
-
M-driver
-
Model Number:
-
900-0220G3,900-0300G3
-
Warranty:
-
18months, 18 months
-
Type:
-
ac-dc-ac, ac drive
-
Size:
-
328*193*217mm
-
Overload:
-
150%- 60s,180%- 3s
-
Color:
-
Black
-
Protection:
-
IP20
-
Control model:
-
V/F,SVC
-
Application:
-
3 Phase AC Asynchronism Motor
-
Shipment:
-
Sea/air
-
Product name:
-
Variable Frequency Drive
-
Other service:
-
OEM
Product Description

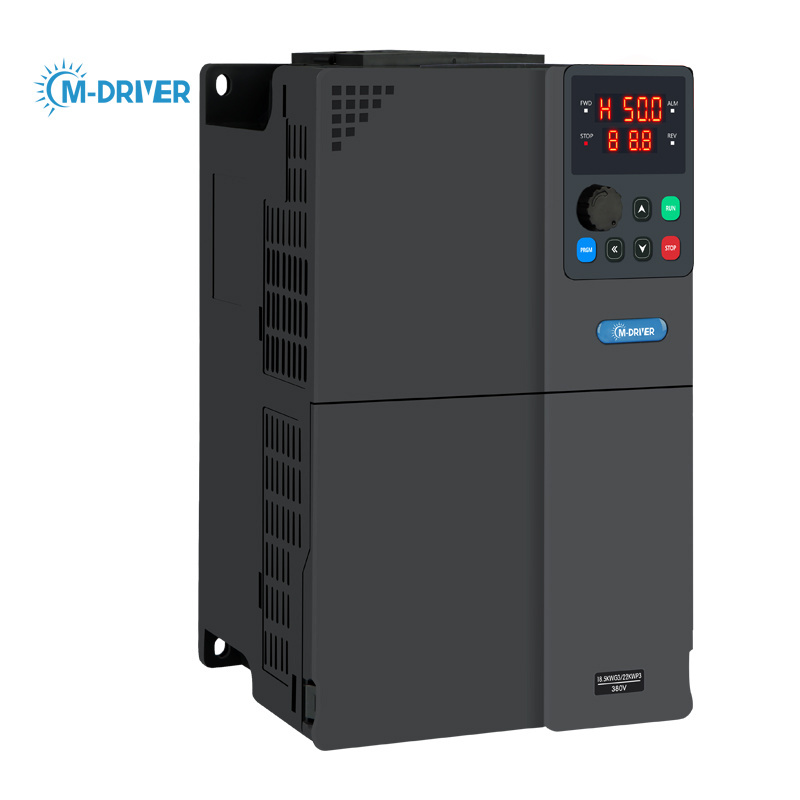

Top 10 VFD 3 Phase 380v Variable Frequency Drive 22kw 30hp Speed Variator for Motor
Specification
| Item | Specifications | |
| Basic function | Over load capability | G type:150% rated current 60s;180% rated current 3s |
| P type:120% rated current 60s;150% rated current 3s | ||
| Torque boost | Auto torque boost function; Manual torque boost 0.1%~30.0% | |
| V/F curve | Linear V/F, multi-point V/F and square V/F curve(power of 1.2,1.4,1.6,1.8,2) | |
| V/F separation | 2 ways: separation and semi-separation | |
| Acc./dec curve | Straight line or S curve acceleration and deceleration mode, | |
| Four kinds of acceleration and deceleration time. Acceleration and deceleration time range from 0.0s to 6500.0s | ||
| DC braking | DC braking frequency:0.00Hz to maximum frequency. Braking time:0.0s to 36.0s | |
| Brake current value:0%-100% | ||
| Jog control | Jog frequency range:0.00Hz~50.00Hz; | |
| Jog acceleration/deceleration:0.0s~6500.0s. | ||
| Simple PLC | It can realize at maximum of 16 segments speed | |
| Basic function | Multiple segment speed running | Running via the built-in PLC or control terminal. |
| Built-in PID | It is easy to realize process-controlled closed loop control system. | |
| Auto voltage regulation (AVR) | It can keep constant output voltage automatically in the case of change of network voltage. | |
| Over-voltage/current stall control | It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process. | |
| Quick current limit | Minimize the over-current fault, protect normal operation of the AC Drive. | |
| Torque limit & control | "Excavators" characteristics, automatically limit torque during operation, prevent frequent over-current tripping. Closed loop vector mode can realize the torque control. | |
| Personalized function | Instantaneous stop non-stop | When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make AC Drive keep running in a short period of time. |
| Rapid current limit | To avoid AC Drive frequent over-current fault. | |
| Timing control | Timing control function:set time range 0Min~6500.0Min. | |
| Running | Command source | Operation panel reference, control terminal reference and serial communication port reference. These channels can be switched in various modes. |
| Frequency source | There are totally eleven types of frequency sources, such as digital reference, analog voltage reference , analog current reference, pulse reference, MS speed, PLC, PID and serial port reference. | |
| Input terminal | 5 digital input terminals. | |
| 1 analog input terminals. | ||
| 1 supporting 0-10V voltage input or 0~20mA current input terminal. | ||
| Output terminal | ||
| 1 relay output terminals. | ||
| 2 analog output terminals, supporting 0~10V voltage output or 0~20mA current output. | ||
| Keyboard operation | Keyboard potentiometer | Equipped with keyboard potentiometer or coding potentiometer. |
| Keyboard operation | Protection function | It can implement power-on motor short-circuit detection, input /output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection. |
| Environment | Using place | Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude | Below 1000m | |
| Ambient temperature | -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) | |
| Humidity | Less than 95%RH,without condensing | |
| Vibration |
Less than 5.9m/s (0.6g)
|
|
About choose the suitable power,if your motor is 2 pole or 4 pole,you can use the same power frequency inverter with your motor,if your motor is 6 pole,please choose one step larger inverter for your motor,if your motor is 8 pole,please choose two step larger inverter.More detail,please feel free to contact us.
If you need M550 series,please contact here.
