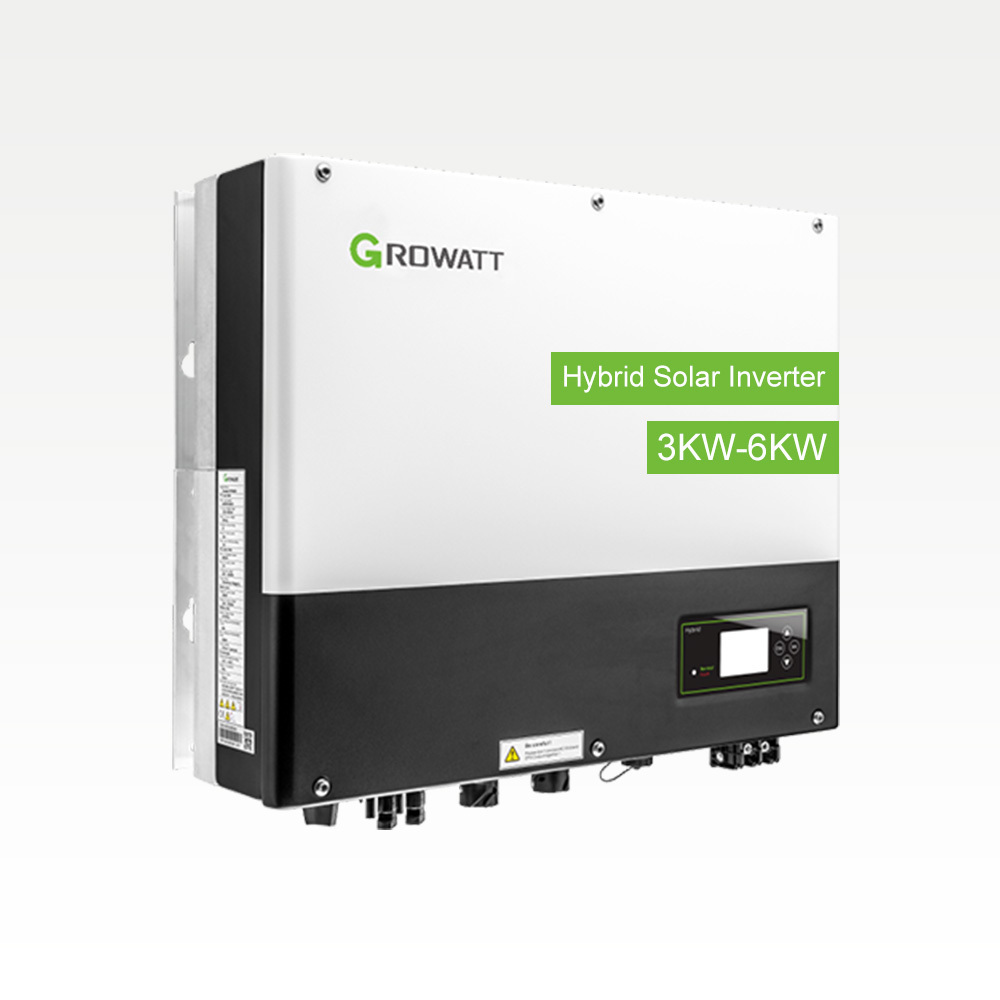

Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Growatt, Growatt
-
Model Number:
-
SPH 3000-6000TL BL-UP, SPH 3000-6000TL BL-UP
-
Input Voltage:
-
120V-550V
-
Output Voltage:
-
230V
-
Output Current:
-
50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
-
Output Frequency:
-
50/60Hz
-
Size:
-
458*565*188mm
-
Certificate:
-
TUV/CE
-
Warranty:
-
5 Years
-
Weight:
-
31KG
-
Battery Voltage Range:
-
42~59V
-
Max. Input Current:
-
13.5A
-
Max. charging Voltage:
-
58V
-
Battery Type:
-
Lithium /Lead-acid
-
Display:
-
LCD+LED
-
No. of MPP trackers:
-
2
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97.2%-97.6%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Growatt, Growatt
-
Model Number:
-
SPH 3000-6000TL BL-UP, SPH 3000-6000TL BL-UP
-
Input Voltage:
-
120V-550V
-
Output Voltage:
-
230V
-
Output Current:
-
50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
-
Output Frequency:
-
50/60Hz
-
Size:
-
458*565*188mm
-
Certificate:
-
TUV/CE
-
Warranty:
-
5 Years
-
Weight:
-
31KG
-
Battery Voltage Range:
-
42~59V
-
Max. Input Current:
-
13.5A
-
Max. charging Voltage:
-
58V
-
Battery Type:
-
Lithium /Lead-acid
-
Display:
-
LCD+LED
-
No. of MPP trackers:
-
2
Products Description
Technical Specifications
|
Datasheet
|
SPH3000TL BL-UP
|
SPH3600TL BL-UP
|
SPH4000TL BL-UP
|
SPH4600TL BL-UP
|
SPH5000TL BL-UP
|
SPH6000TL BL-UP
|
||||||
|
Input data(PV)
|
|
|
|
|
|
|
||||||
|
Max. recommended PV power(for module STC)
|
6000W
|
7200W
|
8000W
|
9200W
|
10500W
|
11200W
|
||||||
|
Max. DC voltage
|
550V
|
|
|
|
|
|
||||||
|
Start voltage
|
120V
|
|
|
|
|
|
||||||
|
MPP voltage range
|
120-550V/360V
|
|
|
|
|
|
||||||
|
No. of MPP trackers
|
2
|
|
|
|
|
|
||||||
|
No. of PV strings per MPP tracker
|
1
|
|
|
|
|
|
||||||
|
Max. input current per MPP tracker
|
13.5A
|
|
|
|
|
|
||||||
|
Max. short-circuit current per MPP tracker
|
16.5A
|
|
|
|
|
|
||||||
|
Output data(AC)
|
|
|
|
|
|
|
||||||
|
AC nominal power
|
3000W
|
3680W
|
4000W
|
4600W
|
5000W
|
6000W
|
||||||
|
Max. AC apparent power
|
3000VA
|
3680VA
|
4000VA
|
4600VA
|
5000VA
|
6000VA
|
||||||
|
Nominal AC voltage (range)
|
230V/（180Vac-270Vac)
|
|
|
|
|
|
||||||
|
AC grid frequency (range)
|
50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
|
|
|
|
|
|
||||||
|
Max. output current
|
16A
|
16A
|
22A
|
22A
|
27A
|
27A
|
||||||
|
Adjustable power factor
|
0.8leading…0.8lagging
|
|
|
|
|
|
||||||
|
THDi
|
<3%
|
|
|
|
|
|
||||||
|
AC grid connection type
|
Single phase
|
|
|
|
|
|
||||||
|
Battery data (DC)
|
|
|
|
|
|
|
||||||
|
Battery voltage range
|
42~59V
|
|
|
|
|
|
||||||
|
Max charging and discharging current
|
66A
|
75A
|
85A
|
85A
|
85A
|
85A
|
||||||
|
Continuous charging and discharging power
|
3000W
|
3680W
|
4000W
|
4000W
|
4000W
|
4000W
|
||||||
|
Type of battery
|
Lithium /Lead-acid
|
|
|
|
|
|
||||||
|
Backup power(AC)
|
|
|
|
|
|
|
||||||
|
Max. AC output power
|
3000W
|
3680W
|
4000W
|
4000W
|
4000W
|
4000W
|
||||||
|
Max. output current
|
17.4A
|
|
|
|
|
|
||||||
|
Nominal AC output voltage
|
230Vac
|
|
|
|
|
|
||||||
|
Nominal AC output frequency
|
50/60HZ
|
|
|
|
|
|
||||||
|
THDv
|
<3%
|
|
|
|
|
|
||||||
|
Switch time
|
<10ms
|
|
|
|
|
|
||||||
|
Efficiency
|
|
|
|
|
|
|
||||||
|
MAX. efficiency
|
97.20%
|
97.20%
|
97.30%
|
97.40%
|
97.50%
|
97.60%
|
||||||
|
European efficiency
|
97%
|
97%
|
97.1%
|
97.1%
|
97.2%
|
97.2%
|
||||||
|
MPPT efficiency
|
≥99.5%
|
|
|
|
|
|
||||||
|
Protection devices
|
|
|
|
|
|
|
||||||
|
DC switch
|
Yes
|
|
|
|
|
|
||||||
|
DC reverse polarity protection
|
Yes
|
|
|
|
|
|
||||||
|
AC/DC surge protection
|
Yes
|
|
|
|
|
|
||||||
|
Battery reverse protection
|
Yes
|
|
|
|
|
|
||||||
|
AC short-circuit protection
|
Yes
|
|
|
|
|
|
||||||
|
Ground fault monitoring
|
Yes
|
|
|
|
|
|
||||||
|
Grid monitoring
|
Yes
|
|
|
|
|
|
||||||
|
Anti-islanding protection
|
Yes
|
|
|
|
|
|
||||||
|
Residual-current monitoring unit
|
Yes
|
|
|
|
|
|
||||||
|
Insulation resistance monitoring
|
Yes
|
|
|
|
|
|
||||||
