Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOBS
-
Model Number:
-
KJ-YEP500
-
Type:
-
waterproof underlayment, Waterproof Menbrane
-
Product Name:
-
KJ-YEP500 waterproof underlayment
-
Material:
-
SBS Modified Asphalt
-
Keyword:
-
Building Material Waterproofing Breathable Membrane
-
Usage:
-
Roof Waterproof Projects
-
Feature:
-
High Strength
-
Advantage:
-
Environmental Protecting Product
-
Thickness:
-
0.9mm±0.1mm
-
Width:
-
1000mm±10mm
-
Length:
-
1000mm±10mm
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE
-
Application:
-
Apartment
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOBS
-
Model Number:
-
KJ-YEP500
-
Type:
-
waterproof underlayment, Waterproof Menbrane
-
Product Name:
-
KJ-YEP500 waterproof underlayment
-
Material:
-
SBS Modified Asphalt
-
Keyword:
-
Building Material Waterproofing Breathable Membrane
-
Usage:
-
Roof Waterproof Projects
-
Feature:
-
High Strength
-
Advantage:
-
Environmental Protecting Product
-
Thickness:
-
0.9mm±0.1mm
-
Width:
-
1000mm±10mm
-
Length:
-
1000mm±10mm

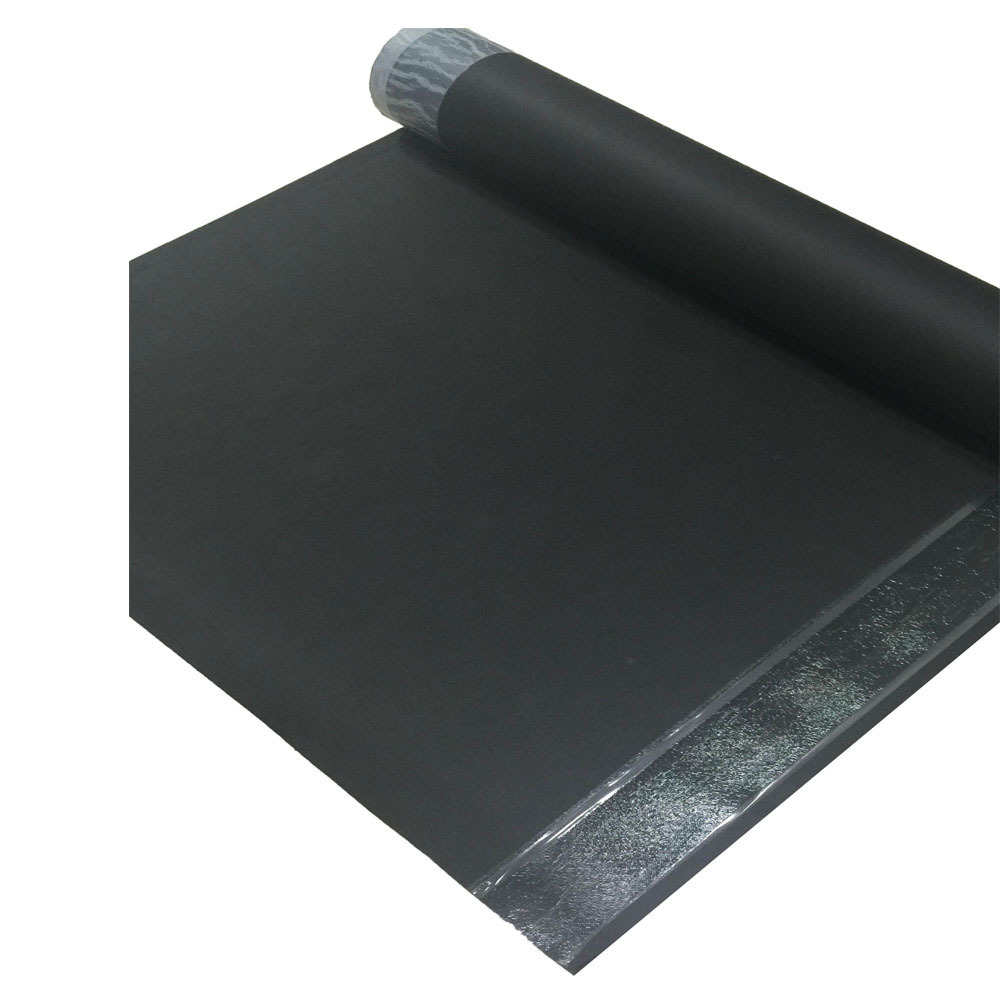

KJ-YEP500 waterproof underlayment is a high quality coverage for wood roof, it is used to replace traditional cardboard with its unique features. It can provide the maximal coverage for concrete, brick and metals as cardboard.
USAGE/PURPOSE
Maximal coverage for concrete, brick and metals as cardboard.Can be used even with 6 degree slopping roof.
PERFORMANCE
| Product Name | KJ-FLEX |
|
base material |
PET Non-woven fabric |
|
PET Non-woven fabric |
SBS modified asphalt |
|
Isolation layer material |
PP Non-woven fabric |
|
Weight |
≥500g/m² |
|
Tensile strength Longitudinal
Tensile strength Transverse |
≥400N
≥300N |
|
Elongation Longitudinal
Elongation Transverse |
≥20%
≥25% |
| Tear Strength Longitudinal | ≥150N |
|
Tear Strength Transverse |
≥150N |
|
Water-tightness |
2Kp, 24H |
|
Low temperature flexibility |
-30℃ |
| COLOR | Black |
| SIZE&PACKING |
Thickness:0.9mm±0.1mm
Width: 1000mm±10mm Roll Length: 25m±0.1m |
| SHELF LIFE | 12 months in original packing. |
| STORAGE | Stored in a dry and cool condition |
APPLICATION
The substrate cover can be mounted under tiles of brick or concrete, sheet metal, tape coverings and other hard roofing materials, where the substrate covering functions as a water-repellent layer. On solid and even substrates of building board, the backing can be used down to 6 degree slope.
