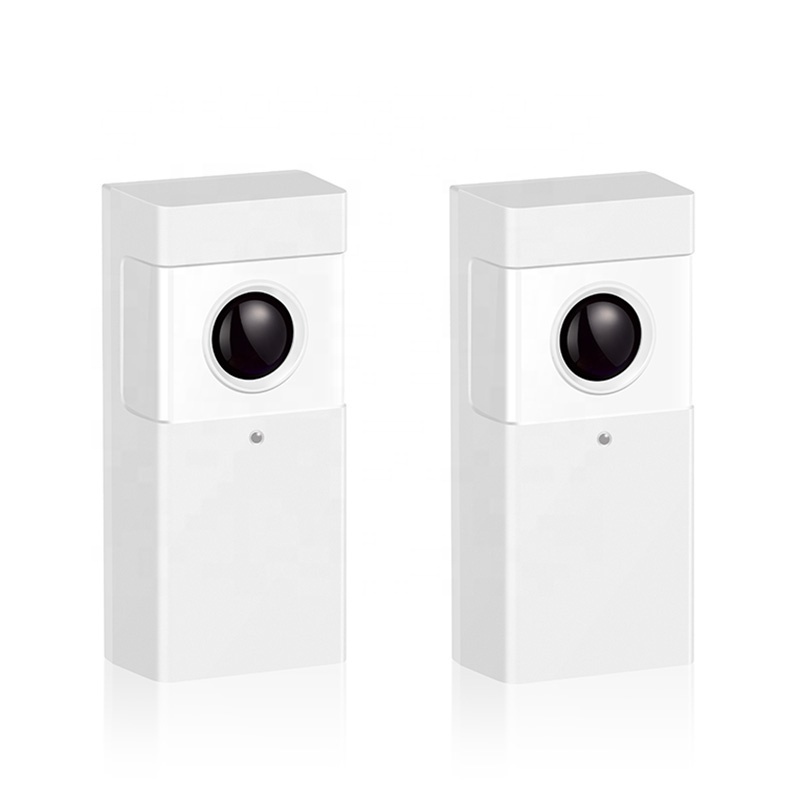

Quick Details
-
Network:
-
wired, cable connected
-
1 beam infrared:
-
30m Max
-
Invisible infrared beam:
-
940nm
-
Feature:
-
Easy Installation
-
Power supply:
-
DC 12V-24V.AC 12V-24V
-
Alarm Output:
-
NO,NC Output
-
Low current:
-
TX+RX less than 50mA
-
Sliding and swing gate:
-
Garage door opener
-
Color:
-
Black and White
-
Relay output:
-
NO/NC
-
Water proof:
-
IP65
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Win High
-
Model Number:
-
WH-1B30
-
Network:
-
wired, cable connected
-
1 beam infrared:
-
30m Max
-
Invisible infrared beam:
-
940nm
-
Feature:
-
Easy Installation
-
Power supply:
-
DC 12V-24V.AC 12V-24V
-
Alarm Output:
-
NO,NC Output
-
Low current:
-
TX+RX less than 50mA
-
Sliding and swing gate:
-
Garage door opener
-
Color:
-
Black and White
-
Relay output:
-
NO/NC
-
Water proof:
-
IP65
Product Description
Specification
|
Model
|
WH-1B30
|
|
Name
|
1 beam infrdared detector
|
|
Power supply
|
DC 12V-24V. AC 12V-24V
|
|
Working current
|
Transmitter: 20mA. Receiver: 32mA
|
|
Frequency
|
Infrared pulse
|
|
Network
|
wired, cable connected
|
|
Detection distance
|
5m to 30m Max
|
|
Invisible infrared beam
|
940nm
|
|
Water proof
|
Water proof
|
|
Connect
|
Cable
|
|
Alarm Output
|
NO/NC Output
|
|
Sliding and swing gate
|
Garage door opener
|
|
Color
|
Black and White
|
|
Product size
|
96*43*22mm
|
Packing & Delivery
White Box ( Regular order )or Color Gift Box(For OEM/ODM order)
Corrugated Paper Carton.
