Quick Details
-
Brand Name:
-
HENAN YUTONG, Yutong
-
Model Number:
-
YB2
-
Frequency:
-
50hz
-
Y:
-
three phase asynchronous
-
B:
-
frameproof
-
performance:
-
high/good/perfect
-
use:
-
coal/mining/ceramics/chemicals and so on
-
Color:
-
Blue
-
Application:
-
coal mine
-
Keywords:
-
coal mine motor
-
advantage:
-
saving energy/low consumption
-
Work way:
-
S1
Quick Details
-
AC Voltage:
-
380V.660V.380V/660/.660/1140
-
Warranty:
-
12 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENAN YUTONG, Yutong
-
Model Number:
-
YB2
-
Frequency:
-
50hz
-
Y:
-
three phase asynchronous
-
B:
-
frameproof
-
performance:
-
high/good/perfect
-
use:
-
coal/mining/ceramics/chemicals and so on
-
Color:
-
Blue
-
Application:
-
coal mine
-
Keywords:
-
coal mine motor
-
advantage:
-
saving energy/low consumption
-
Work way:
-
S1

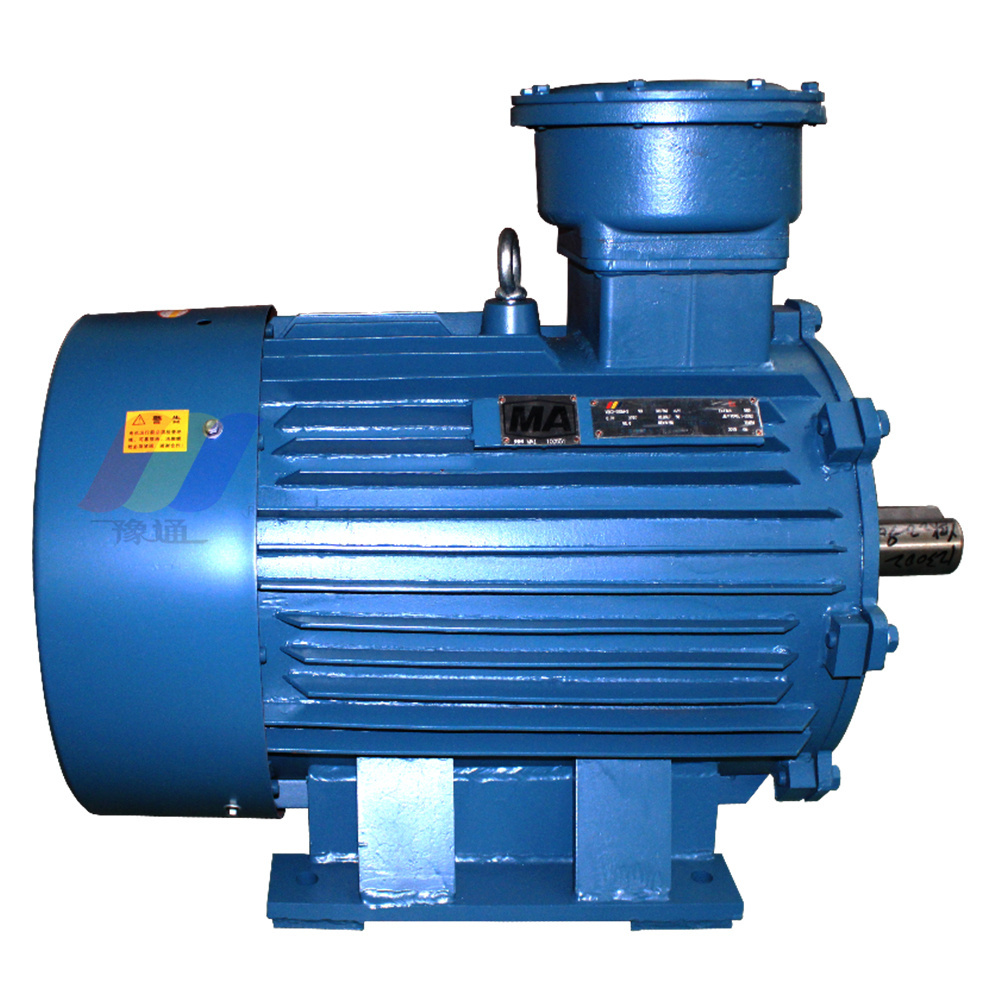

Yutong YB2/YB3/YB3K series three-phase asynchronous motor for coal mine with Cast iron,steel
Our advantages on three phase motor:
1).62 years of three phase motor production experience.
2).CCC,CE,Explosion-proof certificate, Mining product safety mark certificate for explosion-proof motor.
3).30,000 sets three phase motor were sold last year.
4).All models of vibrating motor like: YBZ/ YB3 / YBX3 / YBK3 ,IE2/IE3/IE4,YZS/YZO/YZU/YZUL,MVG/MVE,YVP/YVF/YLJ/YEJ.etc .
5).Adequate stocks for motor.
6).Support customization.
Brand Name
|
Brand Name |
Yutong |
|
Explosion-proof marks |
ExdⅠ, ExdⅡAT4, ExdⅡBT4 |
|
Voltage |
380V, 660V, 380 / 660V |
| Power | 0.75-315KW/1-420HP |
|
Application |
Underground (non-excavation face) stationary equipment or factory IIB class, the driving motor of mechanical equipment in the place where the temperature group is T1-T4 group of flammable gas or explosive mixture formed by steam and air, mainly used in coal mines , Petroleum natural, petrochemical and chemical industries. In addition, it is also widely used in sectors such as textiles, metallurgy, city gas, transportation, grain and oil processing, papermaking, and medicine. As the main power equipment, explosion-proof motors are usually used to drive pumps, fans, compressors, conveyors and other transmission machinery. |
Henan Yutong Electric Motor Shares Company can design various motors with different frequencies and voltage requirements for users.
The Explosion-proof signs of
Yutong YB2/YB3/YB3K series three-phase asynchronous motor for coal mine with Cast iron,steel
are ExdⅠ, ExdⅡAT4, ExdⅡBT4, the highest surface temperature of class Ⅰ does not exceed 150 ℃ (when coal dust may accumulate on the motor surface), and does not exceed 450 ℃ (when the motor surface does not accumulate or measures can be taken to prevent coal accumulation Dust)); the highest surface temperature of class Ⅱ should not exceed: T1 (450 ° C), T2 (300 ° C), T3 (200 ° C), T4 (135 ° C); the junction box can be made into three or six outlets respectively Terminals are suitable for both rubber-sheathed cables (or plastic cables) and steel pipe wiring.Ambient temperature: Ambient temperature is -15 ℃ ~ 35 ℃ (under the coal mine) or -15 ℃ ~ 40 ℃ (factory)
Pre-sale services:
1. Multiple models to choose.
2. Customized products according to your requests.
3. Professional technicians at your side any time.
Services during the sale:
1. Pre-check and safeguard products before delivery.
2. Provide solutions for any possible problems occured.
After-sale services:
1. warranty:13 months for the machine (not including wearing parts) after delivery.
2. Provide installation files, technical data and related soft copies or videos etc to ensure customer could install and debug by yourselves.
