Quick Details
-
Brand Name:
-
Guangxi Xiashi
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
1050*1000*1250mm
-
Weight (KG):
-
240
-
Power (kW):
-
0.75
-
name:
-
LD100B valve grinding machine trade with high speed motor 3600rpm
-
valve stem dia. range:
-
3.5-20mm
-
valve head dia:
-
12-100mm
-
valve length:
-
70-400mm
-
main wheel dia.:
-
200mm
-
cup wheel dia.:
-
100mm
-
main wheel width:
-
15mm
-
grinding wheel travel:
-
90mm
-
valve feed travel:
-
90mm
-
Weight:
-
240kg
Quick Details
-
Wheel Size(mm):
-
200
-
Year:
-
2024
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Guangxi Xiashi
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
1050*1000*1250mm
-
Weight (KG):
-
240
-
Power (kW):
-
0.75
-
name:
-
LD100B valve grinding machine trade with high speed motor 3600rpm
-
valve stem dia. range:
-
3.5-20mm
-
valve head dia:
-
12-100mm
-
valve length:
-
70-400mm
-
main wheel dia.:
-
200mm
-
cup wheel dia.:
-
100mm
-
main wheel width:
-
15mm
-
grinding wheel travel:
-
90mm
-
valve feed travel:
-
90mm
-
Weight:
-
240kg
LD100B valve grinding machine trade with high speed motor 3600rpm
Specification
|
Model |
LD100A |
LD100B |
|
Valve stem dia. range |
3.5-20mm
|
3.5-20mm
|
|
Valve head dia. range: |
12-100mm |
12-100mm |
|
Valve length |
70-400mm |
70-400mm |
|
Angle grinding range |
10-55 degree
|
10-55degree
|
|
Main wheel dia. |
200mm
|
200mm
|
|
Cup wheel dia. |
100mm |
100mm
|
|
Main wheel width |
15mm
|
15mm
|
|
Grinding wheel travel |
90mm |
90mm |
|
Valve feed travel |
90mm |
90mm |
|
Spindle motor power |
750W |
750W |
|
Speed |
3600rpm |
3600rpm |
|
Valve driving motor |
180w |
180W |
|
Valve motor speed |
120-750rpm |
120-750rpm |
|
Coolant motor power |
100W |
100W |
|
Power supply |
380V/50HZ/3PH |
380V/50HZ/3PH |
|
Air supply max |
Max 6bar |
Max 6bar |
|
Coolant tank |
4L |
4L |
|
Dimension |
1050*1000*830mm |
1050*1000*1250mm |
|
Weight |
2 0 0kg |
240 kg |

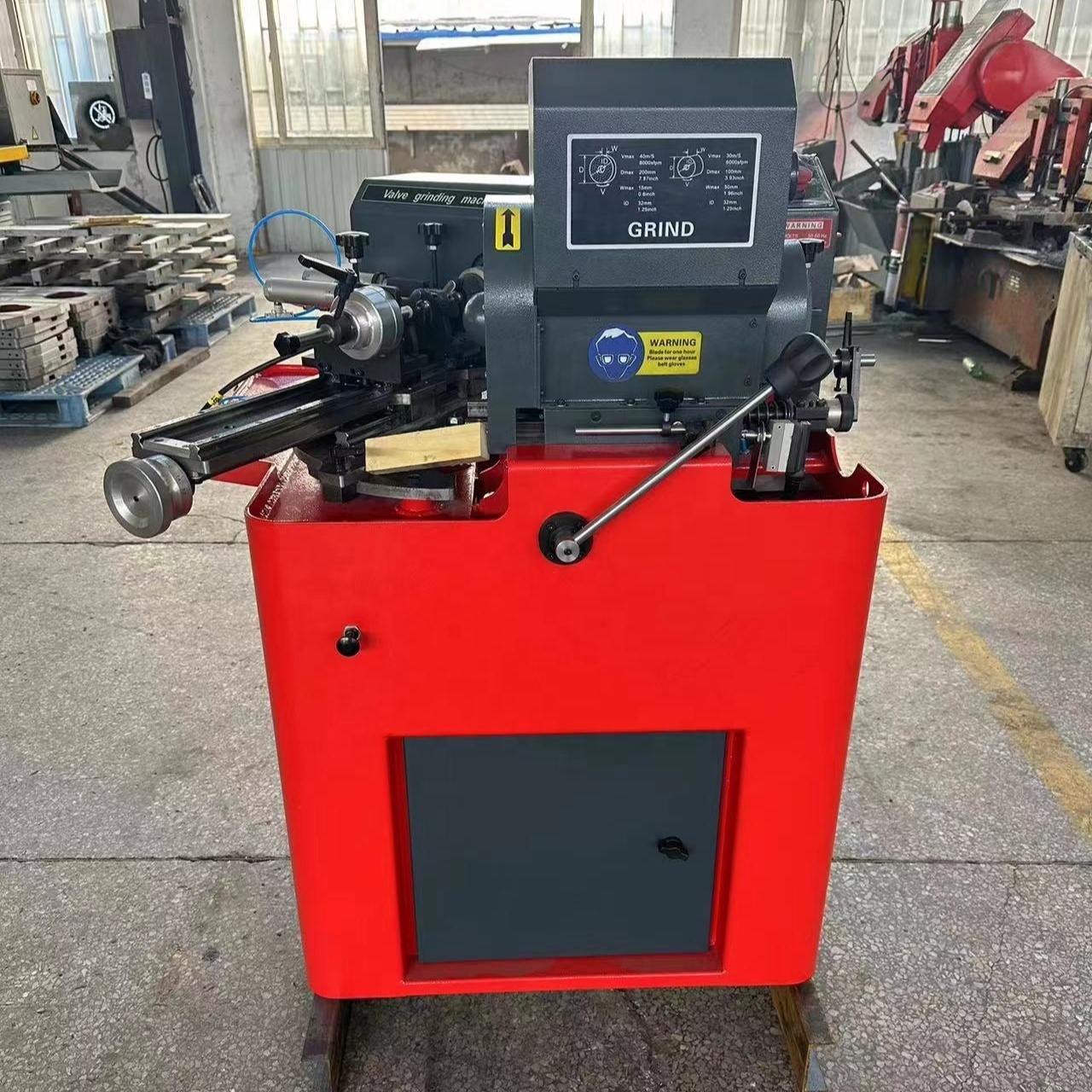

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
