Quick Details
-
Voltage:
-
220V/380V/415V/440V
-
Power:
-
22KW
-
Dimension(L*W*H):
-
1400*1000*1700mm
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
automatic moulding machine
-
Color:
-
As you want
-
Model:
-
Z143W Z144W Z145W Z146W Z147W Z147Q Z148W Z149Q ZD0806
-
Name:
-
moulding machine
-
Application:
-
clay/resin sand
-
Type:
-
automatic/manual
-
Brand:
-
Qingdao antai brand
-
type:
-
Microseismic compaction
-
Function:
-
sand molding
-
Weight:
-
3.5 Tons
-
Certification:
-
ISO9001:2008, ISO14000, CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
molding machine
-
Brand Name:
-
Qingdao Antai
-
Voltage:
-
220V/380V/415V/440V
-
Power:
-
22KW
-
Dimension(L*W*H):
-
1400*1000*1700mm
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
automatic moulding machine
-
Color:
-
As you want
-
Model:
-
Z143W Z144W Z145W Z146W Z147W Z147Q Z148W Z149Q ZD0806
-
Name:
-
moulding machine
-
Application:
-
clay/resin sand
-
Type:
-
automatic/manual
-
Brand:
-
Qingdao antai brand
-
type:
-
Microseismic compaction
-
Function:
-
sand molding
-
Weight:
-
3.5 Tons
-
Certification:
-
ISO9001:2008, ISO14000, CE
Z146W manual type foundry microseism moulding/molding machine
1. Technical parameter
|
1 |
Name |
Z146W Microseism Moulding Machine |
|
2 |
Flask Max Size(mm) |
600*500*200mm |
|
3 |
Worktable Dimension(mm) |
700*550 |
|
4 |
Air Pressure(Mpa) |
0.6 |
|
5 |
Compressive stress(kgf) |
7000 |
|
6 |
Jolting Load(kgf) |
300 |
|
7 |
Compress process(mm) |
160 |
|
8 |
Moulding process(mm) |
200 |
|
9 |
Distance from compacting plate to worktable(mm) |
350-450 |
|
10 |
Distance from compacting platform to floor(mm) |
800 |
|
11 |
Productivity(box/hr) |
40-60 |
|
12 |
Outline size L*W*H(mm) |
1400*1000*1700 |
2. Commercial terms
1. Delivery time: within 3 0 days after receiving the payment.
2 . Payment terms: payment term is 3 5 % deposit ,supplier starts to produce; 65 % balance payment before delivery.
3. Delivery port: Qingdao port, China
3. Features and advantages
1. This machine is suitable for mass production of small castings. Single-sided template single-box shape, can create top box or below box.
2. The machine uses Megatron compacting mechanism, shock and compaction design is large, so do not need pre-earthquake, can be satisfy the size: 600*500*200mm flask requirements.
3. The machine air system is simple, easy to operate and flexible, use, maintenance convenience.

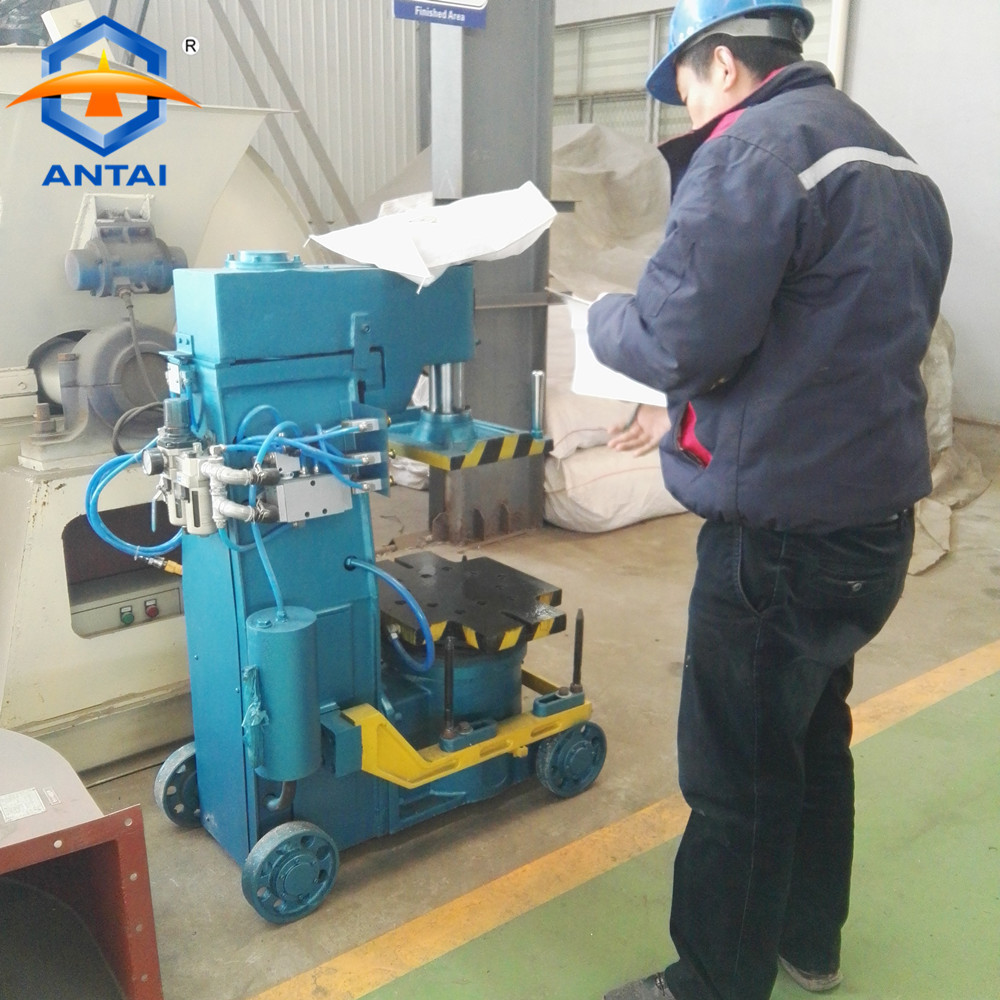

4. Details images
Automatic Moulding machine
