Quick Details
-
Brand Name:
-
Apexium
-
Model Number:
-
48V280Ah
-
Battery Size:
-
LifePO4
-
Place of Origin:
-
GUA
-
Weight:
-
15kg
-
The charging ratio:
-
1C/280A
-
The discharge rate:
-
1C/280A
-
Product name:
-
DIY lifepo4 battery pack
-
Nominal Voltage:
-
48V
-
Nominal Capacity:
-
280Ah
-
DisCharge Cut-Off:
-
10V
-
Charge Cut-Off:
-
14.6V
-
Charge Current:
-
280A
-
Cont. Discharge:
-
280A
-
Peak Discharge:
-
200A
-
Impedance:
-
≤200mΩ
-
Warranty:
-
10year
Quick Details
-
Storage Type:
-
dry, cool and ventilation
-
Anode Material:
-
LFP
-
Application:
-
Power Tools, Home Appliances, Consumer Electronics, Electric Bicycles/Scooters, Electric Power Systems, Solar Energy Storage Systems
-
Brand Name:
-
Apexium
-
Model Number:
-
48V280Ah
-
Battery Size:
-
LifePO4
-
Place of Origin:
-
GUA
-
Weight:
-
15kg
-
The charging ratio:
-
1C/280A
-
The discharge rate:
-
1C/280A
-
Product name:
-
DIY lifepo4 battery pack
-
Nominal Voltage:
-
48V
-
Nominal Capacity:
-
280Ah
-
DisCharge Cut-Off:
-
10V
-
Charge Cut-Off:
-
14.6V
-
Charge Current:
-
280A
-
Cont. Discharge:
-
280A
-
Peak Discharge:
-
200A
-
Impedance:
-
≤200mΩ
-
Warranty:
-
10year
|
Model
|

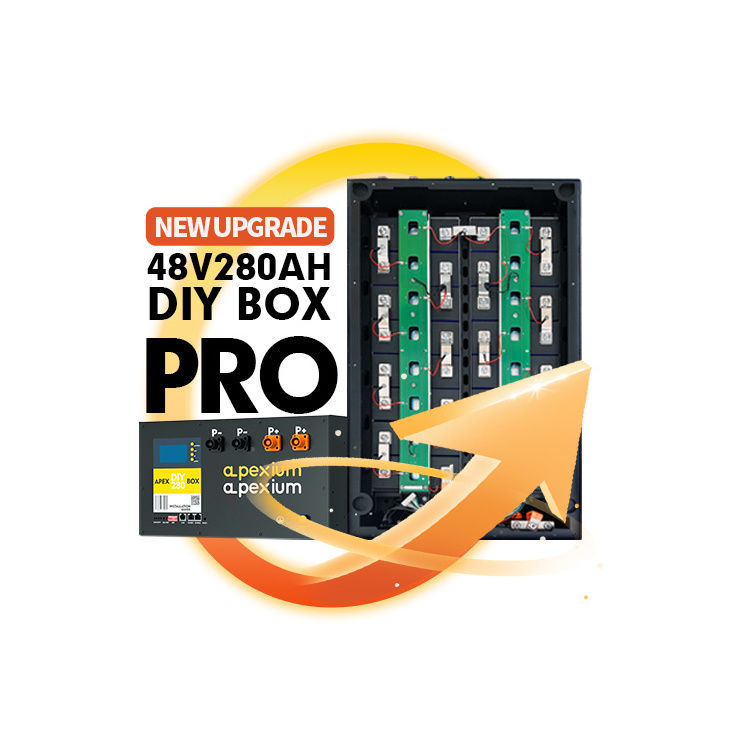

APEX 280 DIY BOX
|
|
Length、Width、Height(mm)
|
750 * 439 * 252(mm)
|
|
Weight(kg)
|
23.6(KG)
|
|
Material
|
Iron
|
|
Thickness(mm)
|
1.5mm
|
|
Ambient Temperature
|
-30~55℃
|
|
Packing List For Apexium 48V 280 Diy Box Full Kits
|
|
|
|
|||
|
Free Accessories
|
|
|
|
|||
|
Accessories name
|
Qty(pc)
|
Accessories name
|
Qty(pc)
|
|||
|
M6 Gasket
|
32
|
Apex 48V200A 16S 200A Smart BMS with Bluetooth,support
RS485/Can(optional Heating function) |
1
|
|||
|
M6 Nuts
|
32
|
BMS LCD Display screen
|
1
|
|||
|
M8*16 bolts
|
7
|
200*175*0.7 Epoxy board
|
4
|
|||
|
M5*8 bolts
|
8
|
600*175*0.7 Epoxy board
|
2
|
|||
|
M6*25 bolts
|
7
|
600*200*0.7 Epoxy board
|
2
|
|||
|
M4*6 bolts
|
12
|
610*60*2 EVA foam
|
2
|
|||
|
M6*14 bolts
|
6
|
180*160*3.5 EVA foam
|
20
|
|||
|
M5*10 bolts
|
12
|
80V400A Fuse Film
|
1
|
|||
|
M4*8 bolts
|
26
|
80V401A Fuse plate base
|
1
|
|||
|
M4*8 bolts
|
16
|
130*20*2.3,2 hole diameter 8.2 Copper busbar (P+)
|
1
|
|||
|
M3*6 bolts
|
4
|
210*20*2.3,1 hole diameter 8.2,3 small holes Copper busbar
|
1
|
|||
|
M3*10 bolts
|
6
|
305*20*2.3,2 hole diameter 8.2 Soft copper busbar (P-)
|
1
|
|||
|
Metal feet
|
4
|
270*20*2.3,2 small holes Soft copper busbar(B-)
|
1
|
|||
|
Display Panel Sticker
|
1
|
370*20*2.3,4 small holes Soft copper busbar(B+)
|
1
|
|||
|
6*6*2.8 Tact switch button cap
|
4
|
99*28*2.5 Aluminum row M6 screw hole
|
15
|
|||
|
Display Cable
|
1
|
M6 Copper busbar and nut
|
1
|
|||
|
Battery collection wire
|
2
|
Positive terminal with waterproof gasket
|
2
|
|||
|
Spring automatic buckle
|
3
|
Gegative terminal waterproof gasket
|
2
|
|||
|
Battery voltage acquisition board
|
2
|
160*55*3 Thermal silica gel
|
1
|
|||
|
|
|
Frongt Panel
|
1
|
|||
|
Paid Accessories
|
|
|
|
|||
|
Accessories name
|
Price
|
Use
|
|
|||
|
50m㎡ Battery Terminals
|
$16/pair
|
Suggest to buy, you can match the cable to connect your inverter
|
|
|||
|
Acctive Balancer (8S2A)
|
$18/pc
|
Suggest to buy, to protect your battery pack life
|
|
|||
|
RS485 Cable
|
$20/pc
|
Suggest to buy, used to communicate your inverter with battery pack
|
|
|||
|
30cm 50m㎡ cable
|
$46/pair
|
Parallel cables to connect between the battery case
|
|
|||
|
1.5M 50m㎡ cable
|
$70/pair
|
Cables to connect between the battery case and inverter
|
|
|||
|
Heating pad
|
$60/2pcs
|
Heating the battery to help them work and protect the battery in winter
|
|
|||
|
Wheel Type Bottom Base
|
$135/pc
|
Used for battery case to move easy
|
|
|||
|
Shipping and delivery time
|
|
|
||
|
Ship from
|
Logistics type
|
Delivery time
|
||
|
China warehouse
|
DDP by sea
|
30-40 working days
|
||
|
EU warehouse
|
DPD express
|
2-5 working days
|
||
|
USA warehouse
|
UPS/Fedex
|
2-5 working days
|
||
|
South Africa warehouse
|
Buffaloex(ZA)
|
2-5 workng days
|
||
|
Canada warehouse
|
UPS/Truck
|
3-7 working days
|
||
|
UK warehouse
|
AW express
|
3-7 working days
|
||
|
DDP: The shipping cost and all import cost for destination are included in the price and you do not have to worry about anything.
|
|
|
||
FAQ
Apexium BMS：
1. Battery management systems can not be used in series.
1. Battery management systems can not be used in series.
2. BMS power component swith stand voltage 100V.
3. If the battery module is assembled in the form of long wire and long copper bar, it must communicate with
the BMS manufacturer for impedance compensation.Otherwise, it will affect the consistency of the cell.
the BMS manufacturer for impedance compensation.Otherwise, it will affect the consistency of the cell.
4. The external switch on BMS is prohibited to connect with other equipment. If necessary, please confirm
with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
5. Do not touch the surface of the core directly when assembling, so as not to damage the core. The
assembly should be firm and reliable.
assembly should be firm and reliable.
6. In use pay attention to lead wire head, soldering iron, solder and so on do not touch the components
on the circuit board, otherwise it may damage the circuit board.
on the circuit board, otherwise it may damage the circuit board.
7. Use process should pay attention to anti-static, moisture-proof, waterproof and so on.
8. Please follow the design parameters and use conditions during use, must not exceed the value in this
specification, otherwise it may damage the protection board.
specification, otherwise it may damage the protection board.
9. After combining the battery pack and the protection plate, if you find no voltage output or charge,
please check the wiring is correct.
please check the wiring is correct.
Lifepo4 Battery：
1. Are the batteries Top Quality,Brand NEW?
Yes, Top quality. the QR code is intact, Brand new from original factory.
2. Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts）If need more please contact us online.
3. Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4. What kind of the package of the cells?
Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.
5. How can I place the order?
Usually we accept order online，and you can send us inquiry or chat with us online they will create online order for you.
6. How can I do if I need more help for the order?
You can chat with our sales online or send inquiry email,we will respond you ASAP.
7. What is delivery time if we place an order?
It depends order quantities. Usually, we can deliver goods within 1-2 working days for small orders, for mass order, let's confirm when you send inquiry.
8. How should I pay?
Paypal, Bank Wire, Visa, Mastercard, Amercian Express, Discover, If you prefer other payment terms, please contact us freely.
9. Why received scuff marks LiFePO4 Prismatic cells?
Scuff marks is normal factor, due to factory QC has been inspected several times. There will be a little scuff marks in various inspections through all the batteries are placed together to check at our warehouse by QC; And All prismatic cells will make the Laser Welded studs, check each cell Voltage and Internal resistance to make sure the battery cells get ully matched and batched at our warehouse.
The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts）If need more please contact us online.
3. Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4. What kind of the package of the cells?
Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.
5. How can I place the order?
Usually we accept order online，and you can send us inquiry or chat with us online they will create online order for you.
6. How can I do if I need more help for the order?
You can chat with our sales online or send inquiry email,we will respond you ASAP.
7. What is delivery time if we place an order?
It depends order quantities. Usually, we can deliver goods within 1-2 working days for small orders, for mass order, let's confirm when you send inquiry.
8. How should I pay?
Paypal, Bank Wire, Visa, Mastercard, Amercian Express, Discover, If you prefer other payment terms, please contact us freely.
9. Why received scuff marks LiFePO4 Prismatic cells?
Scuff marks is normal factor, due to factory QC has been inspected several times. There will be a little scuff marks in various inspections through all the batteries are placed together to check at our warehouse by QC; And All prismatic cells will make the Laser Welded studs, check each cell Voltage and Internal resistance to make sure the battery cells get ully matched and batched at our warehouse.
