Four wheel drive four wheel steering
Turning radius is smaller and more flexible
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Kaida
-
Fork Length:
-
1270-1800
-
Fork Width:
-
125
-
Overall Dimensions:
-
3350*1700*2300
-
Certification:
-
ISO9001:2000
Quick Details
-
Min. Lifting Height:
-
3000
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kaida
-
Fork Length:
-
1270-1800
-
Fork Width:
-
125
-
Overall Dimensions:
-
3350*1700*2300
-
Certification:
-
ISO9001:2000
Packing & Delivery
Packaging Details Naked
Port Qingdao
Company introduction
Product Description

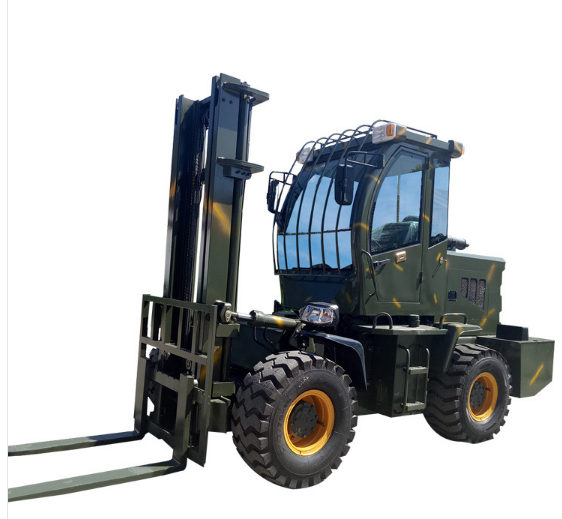

1.Beautiful appearance, compact structure, small turning radius, light and flexible operation,can work in a narrow space, full hydraulic power steering, steering wheel and seat can adjust the angle and relative position befoer and after, to meet the individual requirements of the driver.
2.The setting of various joysticks in accordance with ergonomic requirements, optimize the design to reduce labor intensity and increase production efficiency.
3.Wide-view gantry, the driver has a wide perspective, so this forklift is very suitable for cargo handling, stacking and short-distance transportation in the wild and outdoor.
Product parameters
|
Model
|
|
CPCY-30
|
|
||
|
Rated load(kg)
|
|
3000
|
|
||
|
Discharge height(m)
|
|
3000-4500
|
|
||
|
Vehicle quality(kg)
|
|
4500-5200
|
|
||
|
Maximum climbing ability(°)
|
|
≤25°
|
|
||
|
Drive mode
|
|
Four-wheel drive
|
|
||
|
Tires
|
|
Solid/semi-solid
|
|
||
|
Mast front clearance(mm)
|
|
200-220
|
|
||
|
The center of the wheelbase is located at the ground clearance(mm)
|
|
280
|
|
||
|
Wheelbase(mm)
|
|
1600
|
|
||
|
Minimum turning radius(mm)
|
|
3500
|
|
||
|
Engine model
|
|
490/Supercharger
|
|
||
|
Engine power(kw)
|
|
37-55
|
|
||
|
Dimensions(mm)
|
|
3350*1700*2300
|
|
||
Detailed Images
Product details
Widening and Thickening Iron Plate
Sturdy and durable
Wide-view gantry,the driver has a wide perspective
